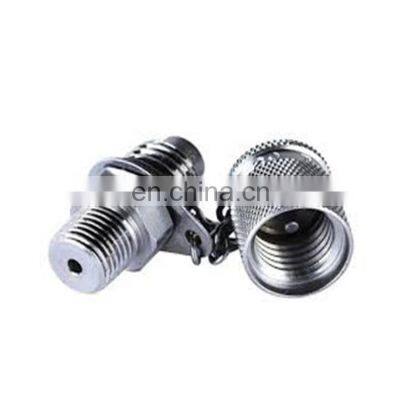

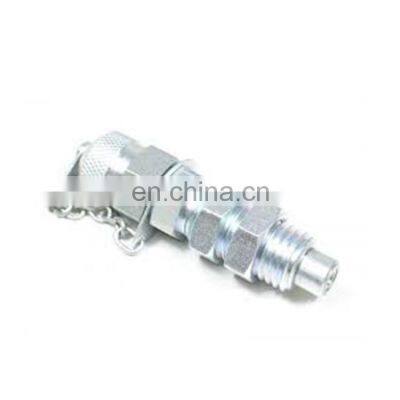

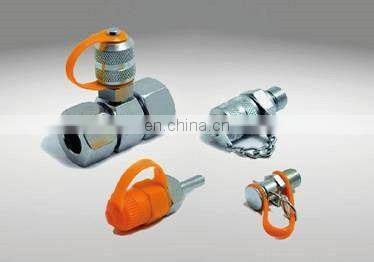

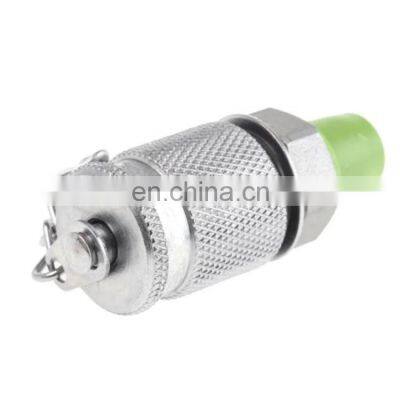

CAT Female Test Coupling Test Coupling for 24 Degree Cone Fittings Test Port and Diagnostic Couplings
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stauff Hydraulic Test Point Test Port and Diagnostic Couplings Threaded Test Coupling M16x2NegotiableMOQ: 1 -
Test Coupling for 24 Degree Cone Fittings CAT Female Test Coupling Test Couplings With Piston ValveNegotiableMOQ: 1
-
Bulkhead Test Couplings Test Coupling Complete With Straight Fitting Stauff Hydraulic Test PointNegotiableMOQ: 1
-
Eaton NPT Test Coupling Test Coupling With Male Threaded Bulkhead Test CouplingsNegotiableMOQ: 1
-
Hot Sale Free Fit Test Coupling Complete With Straight Fitting Test CouplingsNegotiableMOQ: 1
Product Description
Free Fit test products have a leak-proof ball-type sealing connection. The test couplings come with self-locking metal guard caps as standard. They can be coupled directly into the pressurised system, creating simple connection to measuring, control and switching devices. They provide fast coupling for monitoring and control of pressure, venting and sampling in low/high pressure and vacuum systems. Applications include monitoring and control of static and peak pressures, connection to pressure gauges, pressure control of fluids, venting/bleeding of air from hydraulic systems and contamination sampling for further analysis. Maximum joining pressure is 400bar. Metal parts are steel with zinc and gold surface finish (or stainless steel, where stated). Balls are stainless steel. Seals are Viton on all steel or stainless steel parts.
Specification
Thread G
|
Sealing |
Working Pressure (bar) |
Dimensions (mm) |
||||
M8 x 1 |
Type A |
250 |
38 |
8.5 |
17 |
||
M10 x 1 |
Type B |
400 |
37 |
8 |
17 |
||
M10 x 1 |
Type C |
400 |
39 |
8 |
17 |
||
R1/8 K |
Type D |
400 |
37 |
8 |
17 |
||
5/16–24 UNF |
Type E |
400 |
38 |
7.5 |
17 |
||
Application
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
