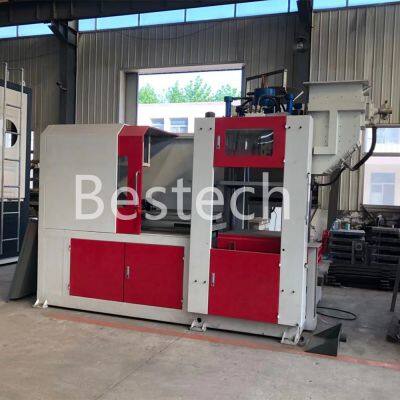

Auto Casting Molding Line Sand Green Molding Casting Machine
US$ 1000 - 59999
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
bestech
Place of Origin:
China
Model Number:
Z417
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or as customer's requirement
Delivery Detail:
15 days
Related Products
-
Automatic Stainless Steel Casting Machine Line Green Sand Auto Molding Machine for Producing Casting Pipe Fittings Iron PartsUS$ 1000 - 59999MOQ: 1 Set -
Cast Iron Alloy Wheel Shell Core Making Metal Green Sand Foundry Moulding MachineUS$ 1000 - 59999MOQ: 1 Set
-
Flaskless Automatic Molding Line Sand Molding Machine Foundry Equipment Cast Iron Sand Molding Machine for Iron PartsUS$ 1000 - 59999MOQ: 1 Set
-
Automatic Metal Cast Injection Molding Machine for Making Ferrous Metal and Non-ferrous Metal PartsUS$ 1000 - 59999MOQ: 1 Set
-
Foundry Metal Casting Equipment Manufacturer Horizontal Brass Casting Molding MachineUS$ 1000 - 59999MOQ: 1 Set
Brand Name
bestech
Place of Origin
China
Model Number
Z417
Certification
new
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
6500
Dimension(L*W*H)
3200*2200*2350
Condition
New
Voltage
customized
Power(W)
18.5
Green Sand Automatic Flaskless Moulding Line
Full Automatic Horizontal Flaskless Molding Line is mainly suitable for moulding production of valves, mechanical parts, automobile parts, hydraulic parts, pipe fittings and fastening these parts, also suitable for ductile iron,gray iron, malleable cast iron and non-ferrous metails these materials,with advantages of high production efficiency, low investment, quick effect, energy-saving and environmental protection. This moulding line mainly consists of moulding machine, pouring line, cooling line, castings conveying system, and electric control, hydraulic control and pneunatic control system, which can realize full automatic control of sand feeding, moulding, pouring, cooling and castings movement.
Main characteristics as follows:
1. Horizontal parting, suspended shot sand, horizontal casting.
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.
2. Adjustable castings height and compaction pressure
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.
3. Convenient template replacement.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.
4. Failure display
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.
5. High reliability of hydraulic, pneumatic and electrical system.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.
6. Easier, more convenient and safer for core setting
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.
7. Adopt servo hydraulic system to save energy.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.
technical parameter:
Parameter | XGA-01 | XGA-02 | XGA-03 |
Sand Mould Size (LxWxH) | 500x400x(120~150)
| 610x508x(130~180) | 700*600(120-150) |
Mould Way | Injection and Compaction | Injection and Compaction | Injection and Compaction |
Compaction specific pressure | ~1.0Mpa | ~1.0Mpa | ~1.0 Mpa |
Power Mode | Hydraulic pressure | Hydraulic pressure | Hydraulic pressure |
Max productivity | 40s/mould(Excluding core setting time) | 40s/mould(Excluding core setting time) | 40s/mould(Excluding core setting time) |
