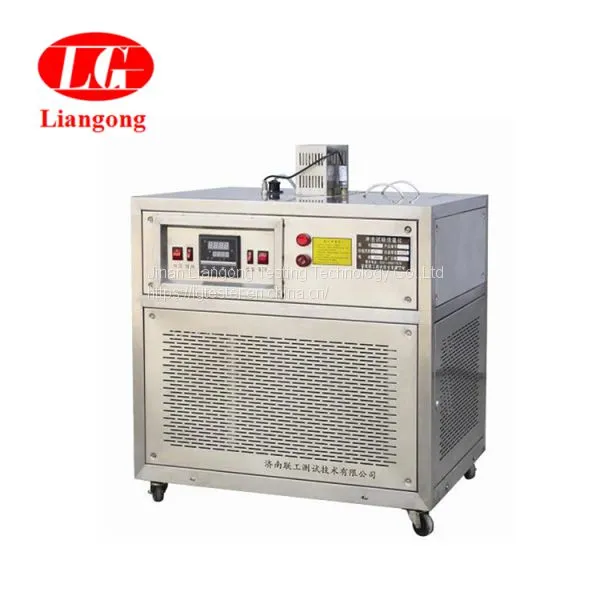

Low Temperature Thermostat/specimen Notch Impact Test/temperature Cycle Test Chamber CDW
US$ 3000 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Liangong
Place of Origin:
China
Model Number:
CDW-40/60/80/100/196
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
Price of Pendulum Charpy Impact Test Used Low Temperature Chamber Low Temperature Tank Factory SupplyUS$ 3000 - 15000MOQ: 1 Set -
Price of Cooling Chamber Low Temperature Environmental Test Chamber Used for Charpy Impact TestUS$ 3000 - 15000MOQ: 1 Set
-
Super Low Temperature Test Chamber for Charpy Laboratory Specimen Sample Cooling Test CDW-196SUS$ 3000 - 15000MOQ: 1 Set
-
Automatic Liquid Nitrogen Cooling Test Chamber for Charpy Notch Impact Test CDW-196SUS$ 3000 - 15000MOQ: 1 Set
-
Liquid Nitrogen Cooling Type Charpy Pendulum Impact Test Used Low-temperature Chamber PriceUS$ 3000 - 15000MOQ: 1 Set
Brand Name
Liangong
Place of Origin
China
Model Number
CDW-40/60/80/100/196
Power
Electronic
Usage
Impact Testing Machine
Usages and characteristics:
1.CDW-type low-temperature impact testing meter is the compressor refrigeration of the latest research and development in accordance with cooling requirement of GB/T 229-2007 "Metal Charpy Gap Impact Test Method".
2.This equipment used cascade compressor refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB/T229-2007, EN10045-2, E23-02A of the provisions.
3.The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
Main technical parameters
| Specifications | CDW-40 | CDW-60 | CDW-80 | CDW-80T | CDW-100(110)T | CDW-196 |
| Temperature range |
Room temperature ~-40°C |
Room temperature ~-60°C |
Room temperature ~-80°C |
Room temperature ~-100(110)°C |
Room temperature ~-196°C |
|
| Temperature control accuracy | ±0.5°C | ±2°C | ||||
| Cold room volume | 275*160*120mm | |||||
| Dimensions(mm) | 910*510*920 | 710*600*740 | 1300*800*1000 | 710*600*740 | ||
| Box material | Iron Spray | Stainless steel | Iron Spray | Stainless steel | ||
| Specimen quantity | No less than 60 | |||||

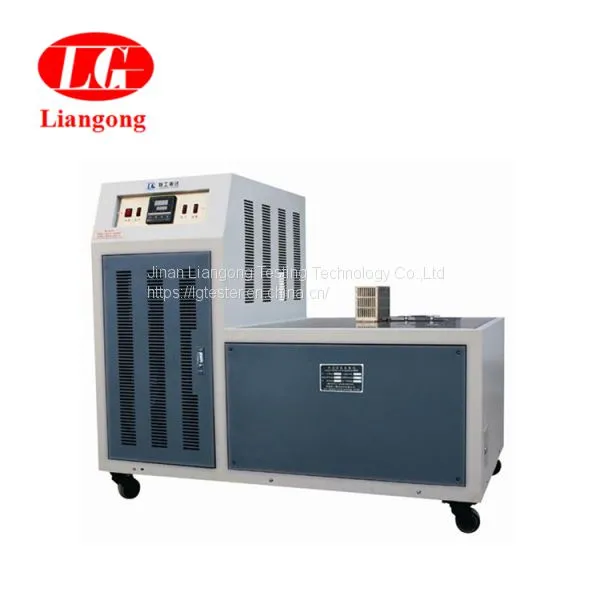

| Mode of refrigeration | Compressor refrigeration |

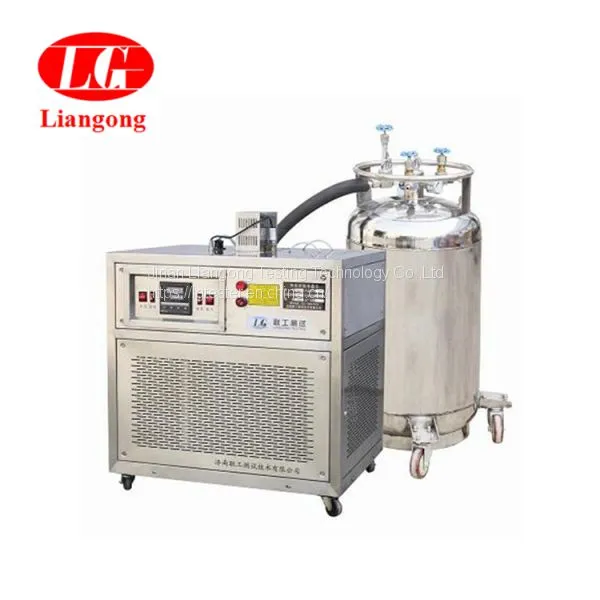

Liquid nitrogen refrigeration |
||||
| Cooling medium | Ethanol or other unfrozen liquid | Liquid nitrogen | ||||
| Power | 1.8kW | 2.3kW | 2.5kW | 3kW | 100W | |
| Remarks: The cold room volume can be specially manufactured according to the customers requirement. | ||||||
