Specification

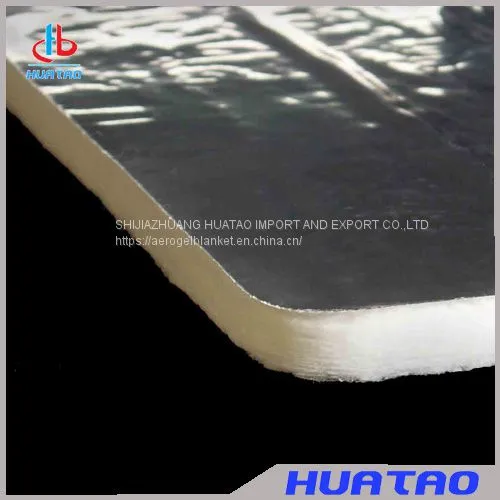

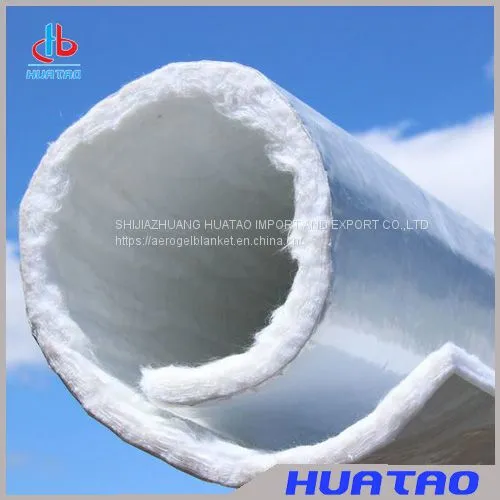

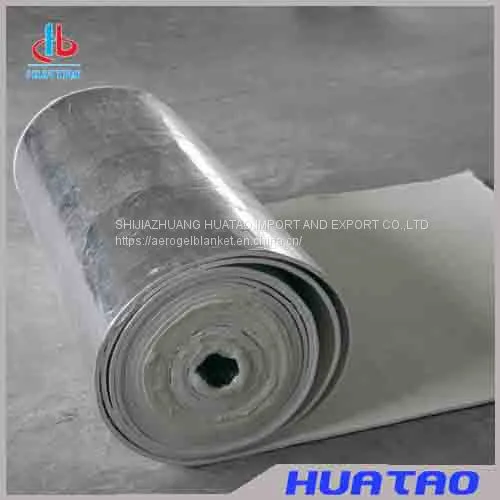

HT200. Aerogel insulation blanket with Aluminium foil, similar to Cryogel Z ( mainly used for the cold insulation, such as LNG, Working temperature from -190ºC-200ºC ), the thermal conductivity from 0.017-0.023 W/m.k
Description:
HT200 series aerogel blanket is a kind of flexible, low-temperature, and high-efficiency cold-proof felt. This material combines nano-aerogel with special fiber to produce flexible, ultra-low thermal conductivity, high-efficiency thermal insulation felt, suitable for liquid nitrogen, LNG, and other low-temperature industrial pipes, tanks, and equipment cold-proof and heat-insulating.
HT200 series aerogel blanket are the best products in cold insulation materials and are ideal for customers to pursue better low-temperature cooling effects and lower energy consumption.
HT200. Aerogel insulation blanket with Aluminium foil, similar to Cryogel Z
( mainly used for the cold insulation, such as LNG, Working temperature from -190ºC-200ºC ), the thermal conductivity from 0.017-0.023 W/m.k
Application advantages of HT200 Aerogel Blanket for Heat Thermal Insulation
1. Superior Insulation Performance
2~5 times better than traditional insulation products with longer service life
2. Reduced Insulation Thickness
For the same insulation performance, just take a portion of the thickness of traditional material
3. Hydrophobicity and Fire-proof
Repel water from penetrating into pipes, equipment, A1 rating of fire-proof
4. Easy Handling
Lightweight, easily cut and sewn to fit different shapes of pipes and equipment, Less labor for installation
5. Transportation Costs Savings
Lower packing volume and lower weight can greatly cut down logistics costs
Model HT200
Color Maroon, White, Grey, Black
Thickness 3mm / 5mm / 6mm / 10 mm
Roll Size 10mm: Width 1500mm x 30m
6mm: Width 1500mm x 38m
5mm: Width 1500mm x 42m
3mm: Width 1500mm x 45m
Hydrophobic Yes
Use of Temperature -200ºC - 200ºC
25ºC Thermal Conductivity W/(m·K) 0.017 ~0.023 W/(m·K)
OEM Yes
ODM Yes, cut into sheet, round, composite with 3M Brand adhesive, etc.
