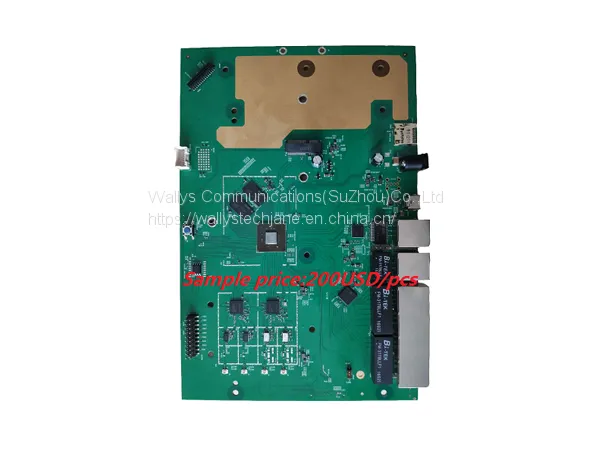

Help CenterRouterboard DR6018(CP01)
Related Products
-
DR3G11 1 x M.2 Card,QCN9074,AX200NGW Adapter Card Support DR9074-6ENegotiableMOQ: 1 Piece -
DR2G41 Linux,WiFi-modules,4-miniPCIE-slot Adapter Card 4 x Mini PCIe Card 4 x M.2 CardNegotiableMOQ: 1 Piece
-
DR6018 V4NegotiableMOQ: 1 Piece
-
DR6018 V4 IPQ6010NegotiableMOQ: 1 Piece
-
DR6018-S V02 IPQ6010/IPQ6018/IPQ6000NegotiableMOQ: 1 Piece
/Routerboard/DR6018-CP01-wifi6-Qualcomm-IPQ6010-IPQ6018-FAMILY-2T2R-2.5G-ETH-port-CP01-802-11AX-MU-MIMO-OFDMA.html
Qualcomm-Atheros IPQ6018
Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
32MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
Sample Price:200USD/pcs
| Absolute Maximum Rating |
Parameter |
Rating |
Unit |
Supply Voltage |
24V~48 |
V |
Operating Temperature Range |
-40 to +70 |
ºC |
Storage Temperature Range |
-45 to +105 |
ºC |
Operating Humidity Range |
5 to +95 (non-condensing) |
% |
| Hardware Specifications |
Symbol |
Parameter |
CPU |
Qualcomm-Atheros IPQ6018 |
CPU Frequency |
Quad-core ARM 64 bit A53 @1.8 GHz processor |
System Memory |
1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design |
Ethernet Port |
5x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port |
NGFF Slot |
M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0 |
SD Card Slot |
1x SD Card Slot |
USB /header |
1x USB 2.0 Port, 1x USB 3.0 Type-C Port |
POE |
24V~48V passive POE |
DC Jack |
12V power supply |
LED header |
FFC/FPC Connector |
Serial Port |
1x Serial Port 12 Pin Connector |
Wireless |
On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/802.11n/802.11ac/802.11ax, max 20dBm per chain |
Nor Flash |
32MB |
Nand Flash |
256MB |
DDR |
256MB~512MB |
Dimension (W x H x D) |
219mm x 150mm x 16.5mm (Without Heatsink) |
Radio TX Specifications(5180MHz-5825MHz) |
Operating Mode |
Data Rate |
Power |
Tolerance |
|
1 Chain |
2 Chains |
|||
5Ghz 802.11ax HE20 |
MCS0 |
20dBm |
23dbm |
±2dB |
MCS1 |
20dBm |
23dBm |
±2dB |
|
MCS2 |
20dBm |
23dBm |
±2dB |
|
MCS3 |
20dBm |
23dBm |
±2dB |
|
MCS4 |
19dBm |
22dBm |
±2dB |
|
MCS5 |
18dBm |
21dBm |
±2dB |
|
MCS6 |
17dBm |
20dBm |
±2dB |
|
MCS7 |
16dBm |
19dBm |
±2dB |
|
MCS8 |
15dBm |
18dBm |
±2dB |
|
MCS9 |
14dBm |
17dBm |
±2dB |
|
MCS10 |
13dBm |
16dBm |
±2dB |
|
MCS11 |
13dBm |
16dbm |
±2dB |
|
5Ghz 802.11ax HE400 |
MCS0 |
20dBm |
23dbm |
±2dB |
MCS1 |
20dBm |
23dBm |
±2dB |
|
MCS2 |
20dBm |
23dBm |
±2dB |
|
MCS3 |
20dBm |
23dBm |
±2dB |
|
MCS4 |
19dBm |
22dBm |
±2dB |
|
MCS5 |
18dBm |
21dBm |
±2dB |
|
MCS6 |
17dBm |
20dBm |
±2dB |
|
MCS7 |
16dBm |
19dBm |
±2dB |
|
MCS8 |
15dBm |
18dBm |
±2dB |
|
MCS9 |
14dBm |
17dBm |
±2dB |
|
MCS10 |
13dBm |
16dBm |
±2dB |
|
MCS11 |
13dBm |
16dbm |
±2dB |
|
5Ghz 802.11ax HE80 |
MCS0 |
20dBm |
23dbm |
±2dB |
MCS1 |
20dBm |
23dBm |
±2dB |
|
MCS2 |
20dBm |
23dBm |
±2dB |
|
MCS3 |
20dBm |
23dBm |
±2dB |
|
MCS4 |
19dBm |
22dBm |
±2dB |
|
MCS5 |
18dBm |
21dBm |
±2dB |
|
MCS6 |
17dBm |
20dBm |
±2dB |
|
MCS7 |
16dBm |
19dBm |
±2dB |
|
MCS8 |
15dBm |
18dBm |
±2dB |
|
MCS9 |
14dBm |
17dBm |
±2dB |
|
MCS10 |
13dBm |
16dBm |
±2dB |
|
MCS11 |
13dBm |
16dbm |
±2dB |
|
| Radio TX Specifications(2412MHz-2482MHz) |
Operating Mode |
Data Rate |
Power |
Tolerance |
|
1 Chain |
2 Chains |
|||
2.4Ghz 802.11ax HE20 |
MCS0 |
23dbm |
26dbm |
±2dB |
MCS1 |
23dBm |
26dBm |
±2dB |
|
MCS2 |
23dBm |
26dBm |
±2dB |
|
MCS3 |
23dBm |
26dBm |
±2dB |
|
MCS4 |
23dBm |
26dBm |
±2dB |
|
MCS5 |
23dBm |
26dBm |
±2dB |
|
MCS6 |
23dBm |
26dBm |
±2dB |
|
MCS7 |
22dBm |
25dBm |
±2dB |
|
MCS8 |
21dBm |
24dBm |
±2dB |
|
MCS9 |
21dBm |
24dBm |
±2dB |
|
MCS10 |
18dBm |
21dBm |
±2dB |
|
MCS11 |
17dbm |
20dbm |
±2dB |
|
2.4Ghz 802.11ax HE40 |
MCS0 |
23dbm |
26dbm |
±2dB |
MCS1 |
23dBm |
26dBm |
±2dB |
|
MCS2 |
23dBm |
26dBm |
±2dB |
|
MCS3 |
23dBm |
26dBm |
±2dB |
|
MCS4 |
23dBm |
26dBm |
±2dB |
|
MCS5 |
23dBm |
26dBm |
±2dB |
|
MCS6 |
23dBm |
26dBm |
±2dB |
|
MCS7 |
22dBm |
25dBm |
±2dB |
|
MCS8 |
21dBm |
24dBm |
±2dB |
|
MCS9 |
21dBm |
24dBm |
±2dB |
|
MCS10 |
21dBm |
24dBm |
±2dB |
|
MCS11 |
19dbm |
22dbm |
±2dB |
|
Wallys Communications (Suzhou ) Co., LTD（） is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period.
IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344/AR9531
BY:Wallys Communications (Suzhou ) Co., LTD
