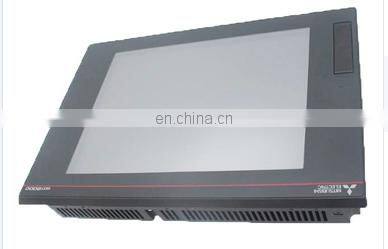

Mitsubishi Touch Screen GT2000 Series 10.4 Inch HMI GT2510-VTBA

Guangzhou Hongsen Servo Motor Co., Ltd.
Mitsubishi Touch Screen GT2000 Series 10.4 Inch HMI GT2510-VTBA thumbnail-1
Mitsubishi Touch Screen GT2000 Series 10.4 Inch HMI GT2510-VTBA photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2005
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
GOT2000 Series General Specifications

Model Number
GT27, GT25, GT23 and GT21 Models
Operating Ambient Temp. (*1)0 to 55°C (*2)
Storage Ambient Temperature-20°C to 60°C
Operating Ambient Humidity10 to 90%RH, no condensation
Storage Ambient Humidity10 to 90%RH, no condensation
Vibration Resistance  FrequencyAccelerationHalf AmplitudeSweep Count
Conforming to JIS B 3502 and Under intermittent vibration5 to 8.4Hz-3.5mm10 times each in X, Y and Z directions
IEC 61131-28.4 to 150Hz9.8m/s²-
 Under continuous vibration5 to 8.4Hz-1.75mm-
 8.4 to 150Hz4.9m/s²-
Impact ResistanceCompliant with JIS B3502, IEC 61131-2 (147 m/s² (15G), 3 times each in X, Y and Z directions)
Operating AtmosphereNo oily smoke, corrosive gas or combustible gas, less conductive dust, away from direct sunlight (the same in storage)
Operating Altitude (*3)2000m or less
Installation LocationInside control panel
Overvoltage Category (*4)II or less
Contamination Level (*5)2 or less
Cooling MethodSelf-cooling
GroundingType D grounding (100Ω or less); Connect to panel if unable to ground

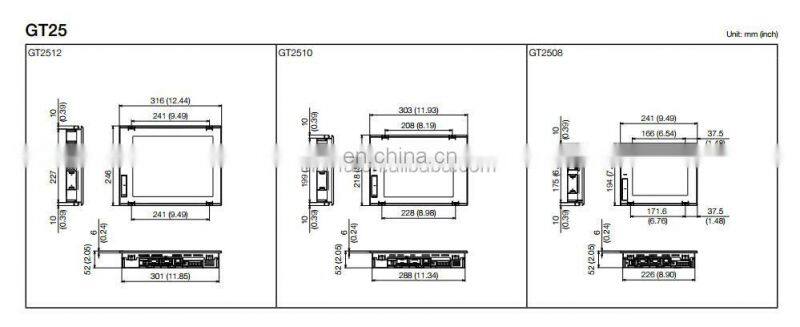

GT25 Base Units

Category
Model NumberScreen SizeResolutionDisplay TypeFrame ColorPower SupplyStocked Item
GT2512GT2512-STBA12.1"SVGA (800 x 600)TFT ColorBlack100-240VACS
GT2512-STBD24VDCS

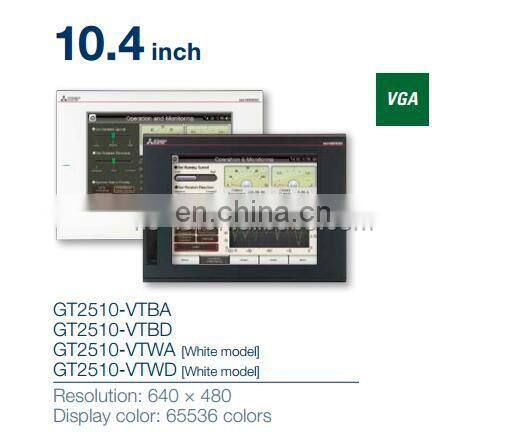

GT2510GT2510-VTBA10.4"VGA (640 x 480)Black100-240VACS
GT2510-VTBD24VDCS
GT2510-VTWAWhite100-240VACS
GT2510-VTWD24VDCS
GT2508GT2508-VTBA8.4"VGA (640 x 480)Black100-240VACS
GT2508-VTBD24VDCS
GT2508-VTWAWhite100-240VACS
GT2508-VTWD24VDCS





GT25 Open Frame Base Units

Category
Model NumberScreen SizeResolutionDisplay TypeFrame ColorPower SupplyStocked Item
GT25 Open FrameGT2512F-STNA12.1"SVGA (800 x 600)TFT color No frame100-240VACS
Model GOT (*1)GT2512F-STND(65536 colors)24VDCS
 GT2510F-VTNA10.4"VGA (640 x 480) 100-240VACS
 GT2510F-VTND 24VDCS
 GT2508F-VTNA8.4"VGA (640 x 480) 100-240VACS
 GT2508F-VTND 24VDC

S





Mitsubishi Touch Screen GT2000 Series 10.4 Inch HMI GT2510-VTBA

Mitsubishi Touch Screen GT2000 Series 10.4 Inch HMI GT2510-VTBA







100% Brand New, Best Price & Short Lead Time.



Hongsen is a manufacturer company produce below products

you main have interest!

1 Planetary gearhead( gearbox ) , precision to 3arcmin

2 AC servo motor   17-bit absolute encoder

accept any trial order!!!

Trading brand we can support you as well!

3 Mitsubishi, Siemens, Delta, Weintek, Schneider, Panasonic etc.

Contact with me fore more detail , we are looking forward the early Chance to support you

esteemed company.



Our team always be there to serve and support your request!









One-stop Purchase, One-stop Service.





Mitsubishi Touch Screen GT2000 Series 10.4 Inch HMI GT2510-VTBA
