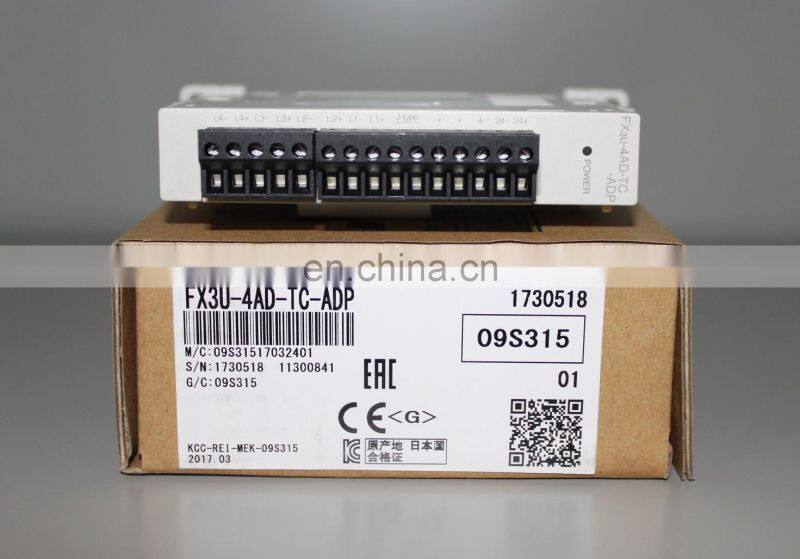

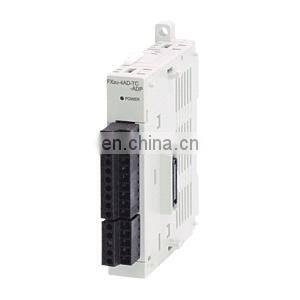

Mitsubishi Plc FX3U-4AD-TC-ADP Temperature Input Special Adapters for J and K Type Thermocouple
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2005
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Mitsubishi High-performance Inverter 450KW FR-A842-10940-2-60NegotiableMOQ: 1 -
FR-A842-09620-2-60 Mitsubishi Inverter 400KW FR-A842 SeriesNegotiableMOQ: 1
-
FX3U-4AD-PT-ADP Plc Mitsubishi --50--250 Resistor (R100 3-wire Type) Pt100 Temperature SensorNegotiableMOQ: 1
-
Best Selling New Mitsubishi 220KW Variable Frequency Drive FR-F840-04320-2-60NegotiableMOQ: 1
-
Mitsubishi FX3U Series PLC Input/output Module FX3U-4AD-ADP, 5 V DC, 24 V DCNegotiableMOQ: 1
Product Description
Mitsubishi ElectricMelsec iQ-F Series
iQ Platform-compatible PLC Temperature Input Special Adapters
These analog temperature input special adapters are available for FX3 series main units and are used for J and K type thermocouple and Pt1000/Ni1000 temperature sensor input. These special adapters provide users with 4 analog input channels with selectable input types to fit the application.
Note: These special adapters can only be used with FX3 series main units. When connecting to an FX 3S , FX 3G , or FX 3U main unit, an interface adapter or interface board is required.product Instructions
Specifications |
FX3U-4AD-TC-ADP |
||
Power supply |
5 V DC / 15 mA (from main unit); 24 V DC / 45 mA |
||
Analog inputs |
4 (J or K type) |
— |
|
Compensated temperature range ℃ |
-100 to +600 (J type) /
-100 to +1000 (K type)
|
||
Digital outputs |
-1000 to +6000 (J type) /
-1000 to +10000 (K type)
|
||
Resolution |
0.3°C (J type) / 0.4°C (K type) |
||
Overall accuracy for fullscale |
±0.5% – ±1.0%* |
||
Related I/O points |
0 |
||
Weight |
0.1kg |
||

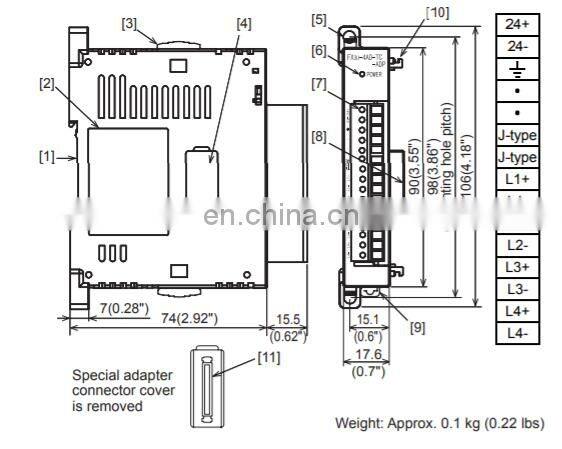

Dimensions (W x H x D) |
17.6 x 90 x 89.5 mm |
||
* Dependent on the ambient temperature
Packing & Delivery
Packing Details : 1pcs/carton
Delivery Details : 1-2 days after order confrimed
