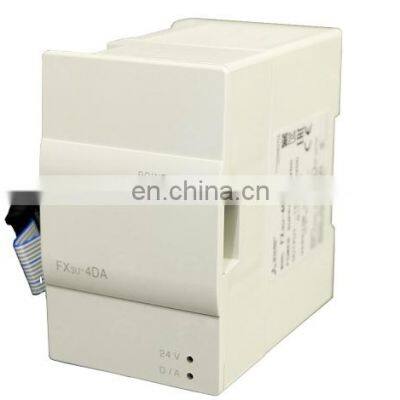

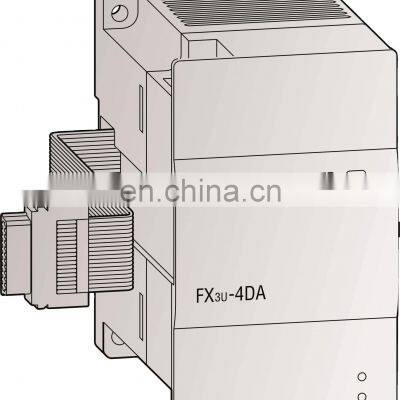

Mitsubishi Plc FX3U-4DA Programmable Controller 4-channel DA Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2005
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FX3U-4AD Mitsubishi Plc Analog Input BlocksNegotiableMOQ: 1 -
High Efficiency Mitsubishi FR-F840-00170-2-60 7.5KW Variable Frequency DriveNegotiableMOQ: 1
-
FX3U-1PSU-5V Mistubishi Intelligent Plc ModuleNegotiableMOQ: 1
-
Best Efficiency Mitsubishi 0.4KW Converter FR-A840-00023-2-60 in StockNegotiableMOQ: 1
-
Original and New Plc Controller 4AD Mitsubishi FX Series FX3UC-1PS-5VNegotiableMOQ: 1
Product Description
Mitsubishi ElectricMelsec iQ-F Series
iQ Platform-compatible PLC Analog Output Blocks
The FX 3U -4DA is available for FX 3G , FX 3GE , FX 3GC , FX 3U , and FX 3UC series main units and is used to convert digital values in the PLC to voltage or current analog output signals. This block provides users with 4 analog output channels with optional output table function and uses an integrated high-performance CPU which converts all 4 analog signals in 1ms.
Note: When attaching the FX 3U -4DA analog block to an FX 3GC or FX 3UC main unit, the FX 2NC -CNV-IF
interface converter or the FX 3UC -1PS-5V power supply unit is required.product Instructions
Specifications |
FX3U-4DA |
||
Power supply |
5 V DC / 120 mA (from main unit); 24 V DC / 160 mA
|
||
Analog channels outputs |
4 |
— |
|
Analog output range |
-10 to + 10 V DC /
0 to 20 mA / 4 to 20 mA DC
|
||
Resolution |
voltage |
0.32 mV (15 bit + sign) |
|
current |
0.63 µA (15 bit) |
||
Overall accuracy for fullscale |
±0.3 – ±0.5 %* |
||
Related I/O points |
8 |
||
Weight |
0.2kg |
||

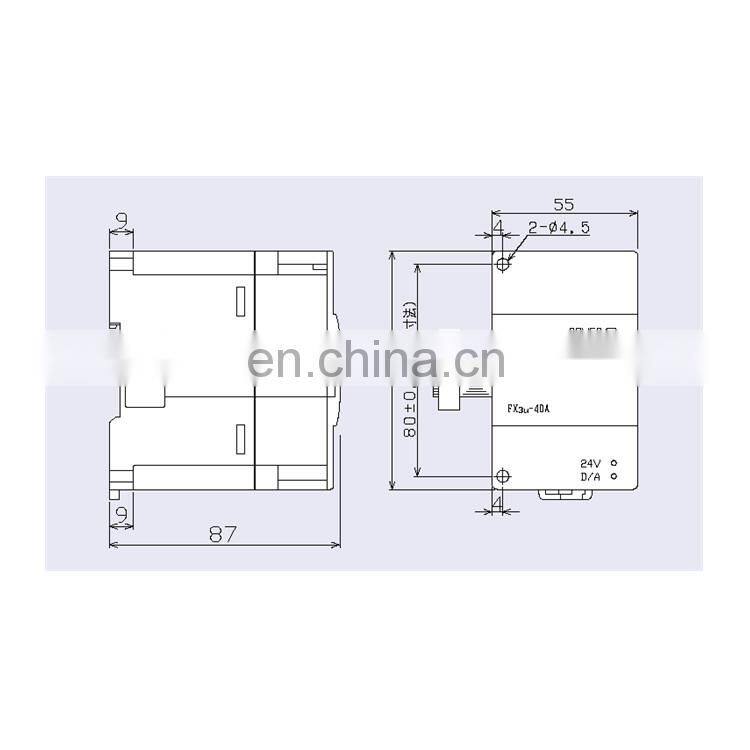

Dimensions (W x H x D) |
55 x 90 x 87 mm |
||
* Dependent on the ambient temperature
Packing & Delivery
Packing Details : 1pcs/carton
Delivery Details : 1-2 days after order confrimed
