Home > Products > Mitsubishi > LX40C6-CM Misubishi output/input plc module for autombilex

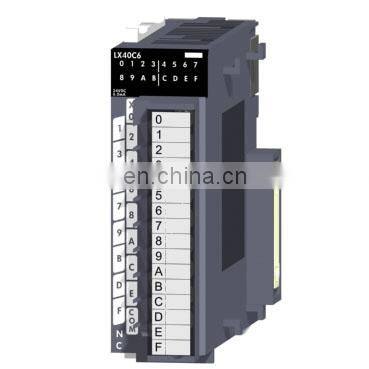

LX40C6-CM Misubishi output/input plc module for autombilex

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Mitsubishi Electric
Melsec iQ-F Series
iQ Platform-compatible PLC MEAMC

Designed on the concepts of outstanding performance, superior drive control an user centric programming, Mitsubishi's MELSEC-F Series has been reborn as the MELSEC iQ-F Series.

From stand alone use to networked system applications, MELSEC iQ-F Series brings your business to the next level of industry.

Advanced Built-in Functions

CPU Performance

Built-in Analog Input/Output (with alarm output)

Built-in SD Card Slot

RUN/STOP/RESET Switch

Built-in RS-485 Port (with MODBUS function)

Security

High-speed System Bus Communication

Built-in Ethernet Port

Battery-less and Maintenance-free

Advanced positioning function

Built-in Positioning (200 Kpps, 4-Axis built-in)

Simple Motion Module (4-Axis control module)

Advanced Motion Control

User-friendly programming software GX Works3

Specification

Model :	LX40C6-CM	FX5U-32MR/ES
Power Supply:	Power supply from CPU module		CPU module
Total No. of points	8 points
No. of input/output points & Input/output type	Input	8 points
No. of input/output points & Input/output type	Input		24 V DC internal current consumption	24 V DC Transistor (sink)

Selecting the FX5UC Model

Type	Details	Connection details, model selection
CPU module	PLC with built-in CPU, power supply,input/output and program memory.	Various expansion devices can be connected.
I/O module	Product for expanding I/O. Some products are powered.	Input/output can be expanded to up to 256 points. (Expansion module: Max. 16 modules (excluding extension power supply module)).The total with CC-Link remote input/output is max. 512 points.
FX5 extension power supply module	Module for expanding power supply if CPU module’s internal power supply is insufficient. Extension cable is enclosed.	Power can be supplied to I/O module, intelligent function module, and bus conversion module. Up to 2 modules can be connected.
I/O module	Product for expanding I/O. Some products are powered.	Input/output can be expanded to up to 256 points. (Expansion module: Max. 16 modules (excluding extension power supply module)).The total with CC-Link remote input/output is max. 512 points.
FX5 intelligent function module	Module with functions other than input/output.	Up to 16 expansion modules including the I/O module can be connected (excluding the extension power supply module).
Bus conversion module	Conversion module for connecting FX3 Series expansion module.	FX3 Series expansion module can be connected only to the right side of the bus conversion module
FX5 expansion board	Board connected to front of CPU module to expand functions.	Up to 1 module can be connected to the front of the CPU module. (Expansion adapter can also be used.)
FX5 expansion adapter	Adapter connected to left side of CPU module to expand functions.	Up to 6 modules can be connected to the left side of the CPU module
FX3 extension power supply module	Module for expanding power supply if CPU module’s internal power supply is insufficient.	The bus conversion module is required for use. Up to 2 modules can be connected.
FX3 intelligent function module	Module with functions other than input/output.	The bus conversion module is required for use. When using the FX3 extension power supply module, up to 8 modules 4 can be used.When not using the FX3 extension power supply unit, up to 6 modules 4 can be used.

Model options

MEAMC CPU Modules	L02SCPU-CM	L02CPU-CM	L06CPU-CM
		L26CPU-CM	L26CPU-BT-CM	L61P-CM
		L63P-CM	L63SP-CM	LX40C6-CM
FX3U Expansion Adapters	Communication	FX5-232ADP	FX5-485ADP
FX3U Expansion Adapters		Analog	FX5-4AD-ADP	FX5-4DA-ADP
FX3U Expansion Boards	FX5-232-BD	FX5-485-BD	FX5-422-BD-GOT
Powered I/O Modules	FX5-32ER/ES	FX5-32ET/ES	FX5-32ET/ESS
Unpowered I/O Modules	FX5-8EX/ES	FX5-16EX/ES	FX5-8EYR/ES
		FX5-8EYT/ES	FX5-8EYT/ESS	FX5-16EYR/ES
		FX5-16EYT/ES	FX5-16EYT/ESS
Intelligent Function Modules	FX5-40SSC-S
Extension Power Supply Module	FX5-1PSU-5V
Bus Conversion Module	FX5-CNV-BUS
Battery	FX3U-32BL
SD card	NZ1MEM-2GBSD (2 GB)
SD card		NZ1MEM-4GBSD (4 GB)
Programming software	GX Works3
Extension Power Supply Module	FX3U-1PSU-5V
Intelligent Function Modules	Analog	FX3U-4AD	FX3U-4DA
		Positioning	FX3U-1PG
		Network	FX3U-64CCL	FX3U-16CCL-M
		Temperature control	FX3U-4LC
		High Speed counter	FX3U-2HC

Packing & Delivery

Packing Details : 1pcs/carton
Delivery Details : 1-2 days after order confrimed
