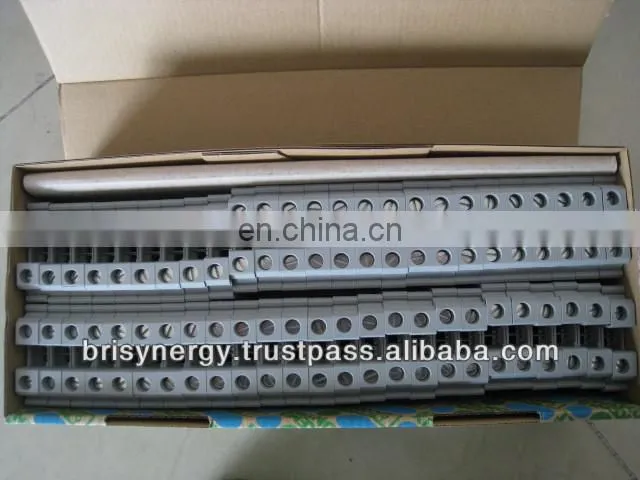

Phoenix Contact Terminal Block UT 16 Order No.3044199
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2004
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MTL5575 MTL Temperature Converter THC or RTD Input Genuine High QualityNegotiableMOQ: 1 -
MTL5541 Brand New MTL ISOLATED BARRIER/REPEATER POWER SUPPLYNegotiableMOQ: 1
-
MTL ZENER BARRIER MTL7787+ Zener-Diode BarrierNegotiableMOQ: 1
-
MTL7761AC Original India MTL Barrier Analogue InputsNegotiableMOQ: 1
-
Repeater Power Supply MTL5541 MTL SURGE TECHNOLOGIES ISOLATED BARRIERNegotiableMOQ: 1
Phoenix Contact terminal UT 16 Order No.3044199 with high qualitycompetitive price&best service
Feed-through terminal block, Connection method: Screw connection, Cross section: 1.5 mm² - 25 mm², AWG: 16 - 4, Width: 12.2 mm, Height: 54.4 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Product Information
- TERMINAL BLOCK, DIN, 16MM, GREY
- Connector Type: Terminal Block, DIN Rail
- Series: -
- Connector Mounting: DIN Rail
- No. of Contacts: 2
- Contact Plating: -
- Contact Material: -
- SVHC: No SVHC (20-Jun-2013)
- Colour: Grey
- Current Rating: 101A
- External Width: 12.2mm
- Working Voltage: 800V
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Color | gray |
| Insulating material | PA |
| Inflammability class according to UL 94 | V0 |
| Area of application | Railway industry |
| Mechanical engineering | |
| Plant engineering | |
| Process industry | |
| Maximum load current | 101 A (with 25 mm² conductor cross section) |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
| Surge voltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current IN | 76 A |
| Nominal voltage UN | 1000 V |
| Open side panel | ja |
| Shock protection test specification | DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection | guaranteed |
| Finger protection | guaranteed |
| Surge voltage test setpoint | 9.8 kV |
| Result of surge voltage test | Test passed |
| Power frequency withstand voltage setpoint | 2.2 kV |
| Result of power-frequency withstand voltage test | Test passed |
| Checking the mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Bending test rotation speed | 10 rpm |
| Bending test turns | 135 |
| Bending test conductor cross section/weight | 1.5 mm² / 0.4 kg |
| 16 mm² / 2.9 kg | |
| 25 mm² / 4.5 kg | |
| Result of bending test | Test passed |
| Conductor cross section tensile test | 1.5 mm² |
| Tractive force setpoint | 40 N |
| Conductor cross section tensile test | 16 mm² |
| Tractive force setpoint | 100 N |
| Conductor cross section tensile test | 25 mm² |
| Tractive force setpoint | 135 N |
| Tensile test result | Test passed |
| Tight fit on carrier | NS 35 |
| Setpoint | 5 N |
| Result of tight fit test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of voltage drop test | Test passed |
| Temperature-rise test | Test passed |
| Conductor cross section short circuit testing | 16 mm² |
| Short-time current | 1.92 kA |
| Conductor cross section short circuit testing | 25 mm² |
| Short-time current | 3 kA |
| Short circuit stability result | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
| Result of thermal test | Test passed |
| Test specification, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
| Test spectrum | Service life test category 1, class B, body mounted |
| Test frequency | f1 = 5 Hz to f2 = 150 Hz |
| ASD level | 0.02 g²/Hz |
| Acceleration | 0.8 g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Oscillation, broadband noise test result | Test passed |
| Test specification, shock test | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form | Half-sine |
| Acceleration | 5 g |
| Shock duration | 30 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Shock test result | Test passed |
| Temperature index, insulating material (DIN EN 60216-1 (VDE 0304-21)) | 120 °C |
