Product Description

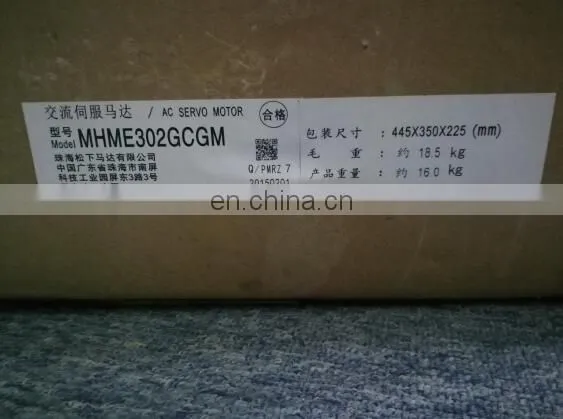

Panasonic Servo Motor MHME302GCGM A5 series 3KW



Item Specifications
Part Number MHME302GCGM
Details High inertia, Connector type, IP65
Family Name MINAS A5
Series MHME Series
Type High inertia
Special Order Product Special Order Product
Cautions for Special ordering product Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Enclosure IP65
About Enclosure Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental Conditions For more details, please refer to the instruction manual.
Flange sq. dimension 176 mm sq.
Flange sq. dimension (Unit:mm) 176
Motor lead-out configuration Connector
Motor encoder connector Connector
Power supply capacity (kVA) 4.5
Voltage specifications 200 V
Rated output 3000 W
Rated current (A (rms)) 16.0
Holding brake without
Mass (kg) 16.0
Oil seal with
Shaft Key-way
Rated torque (N ⋅ m) 14.3
Momentary Max. peak torque (N ⋅ m) 43.0
Max. current (A (o-p)) 68
Regenerative brake frequency (times/min) Without option :19
With option :142
Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel
About regenerative brake frequency Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min) 2000
Rated rotational Max. speed (r/min) 3000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 90.5
Recommended moment of inertia ratio of the load and the rotor 5 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications 20-bit Incremental system
Rotary encoder: Resolution 1048576
