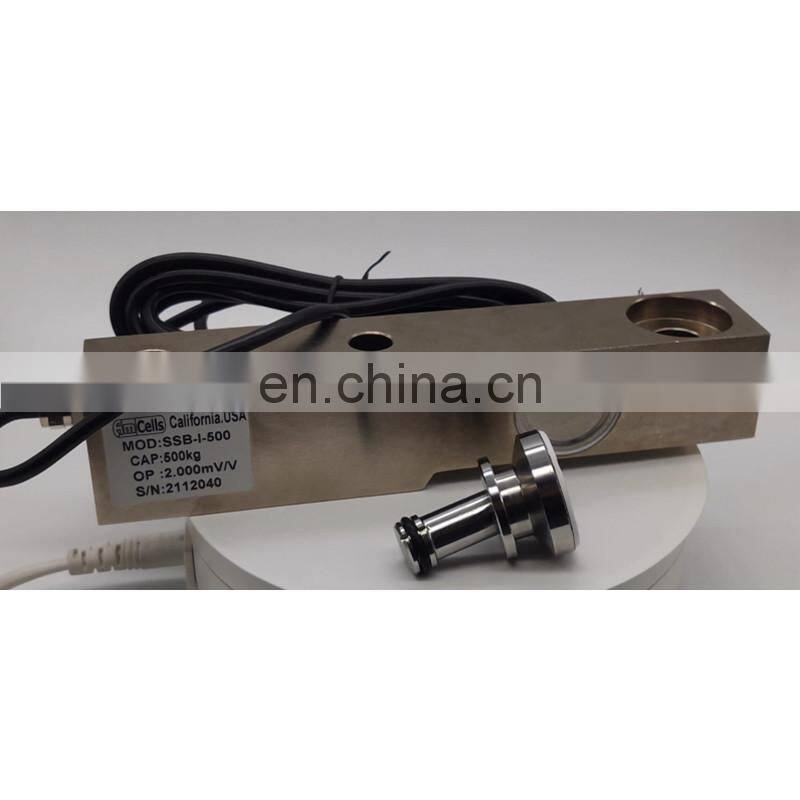

Mixing Station 500kg SSB-I-500 Load Cell

Shanghai Qiyi Co., Ltd.
Mixing Station 500kg SSB-I-500 Load Cell thumbnail-1
Mixing Station 500kg SSB-I-500 Load Cell photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Specification
item
value
Model Number
SSB-I-500
Type
Load Cell
Place of Origin
China
Shanghai
Brand Name
NONE
Usage
force sensor
Theory
resistant sensor
Output
analog sensor
Description
load cell
Capacity
500kg
Rated output
2.0±0.002mV/V
Creep(30min)
±0.02%F.S
Input resistance
400±10Ω
Output resistance
350±5Ω
Insulation resistance
≥5000MΩ
Working Temperature Range
-30℃~70℃
Excitation Voltage
15V
Safe Overload
150%F.S
Ultimate Overload
300% F.S
