CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder

CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder thumbnail-1
CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder thumbnail-2
CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder thumbnail-3
CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder thumbnail-4
CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder photo-1

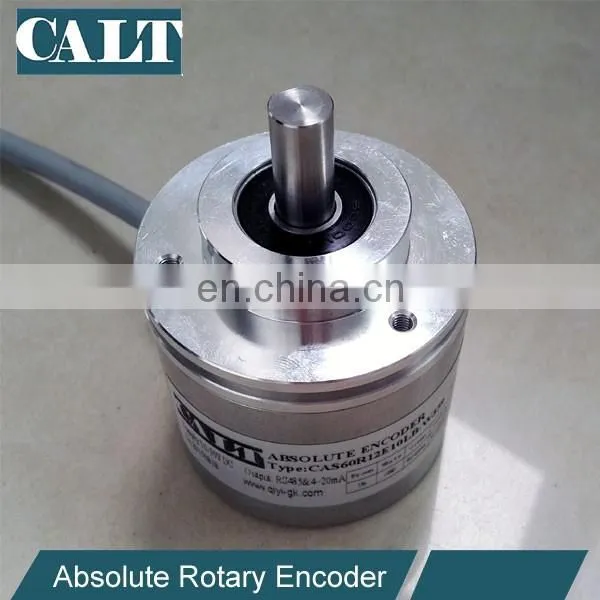

CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder photo-2

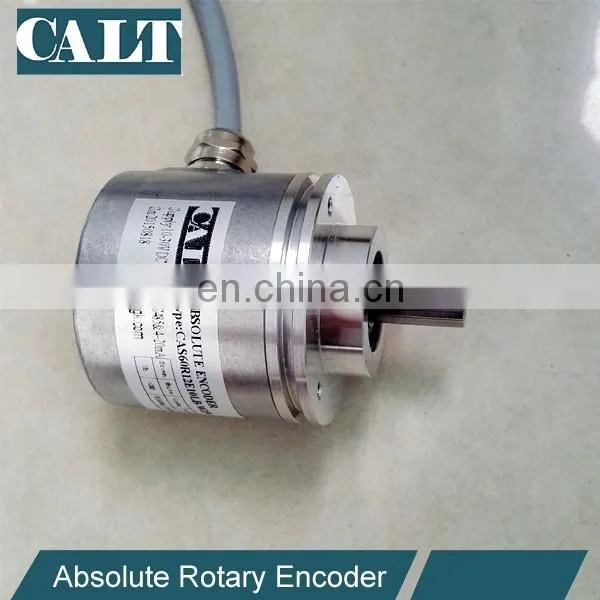

CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder photo-3
CAX60R1212E10SGB SSI Multiturn Absolute Optical Encoder 10mm Shaft Digital Encoder photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Shanghai Qiyi Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

CAX60R1212E10SGB SSI multiturn absolute optical encoder 10mm shaft digital encoderr


 * Absolute digital encoder disk, high-precision digital, no signal interference and zero drift in fear.


* SSI digital output, the fastest clock frequency can be set to 500KHz, high-speed, high-precision control

* 4096 resolution per revolution, 1 parity bit, single-turn or multi-turn loop continuous operating range 4096

* Wide operating voltage, low current consumption

* Clamping flange or synchro flange, the international standard shape structure

Operating voltage
10 ... 30Vdc polarity protection (recommended 24Vdc power supply)
Current consumption
<35mA (24Vdc) no-load
Output signal
SSI synchronous serial signal
Signal transmission
Two pairs of RS422, 100 meters (125KHz and recommend special cables, more distance please consult factory)
Linear Resolution
1/65536FS
Repeatability
Repeatability ± 2BIT (actual accuracy relate to precision of installation and the shaft concentricity )
Clock frequency
The fastest clock frequency can be set 500KHz, recommend 125KHz.
Working temperature
-25 ~ 80 ℃
Storage temperature
-40 ~ 80 ℃
Protection class
Shell IP67, IP65 shaft
Vibration and shock
10g, 10 ~ 2000Hz; 100g, 6ms
Allowed speed
2400 rev / min
Connection cable
1 m shielded cable radial side (rest form can be ordered)
Shape characteristics
Metal shell, sealed double bearing

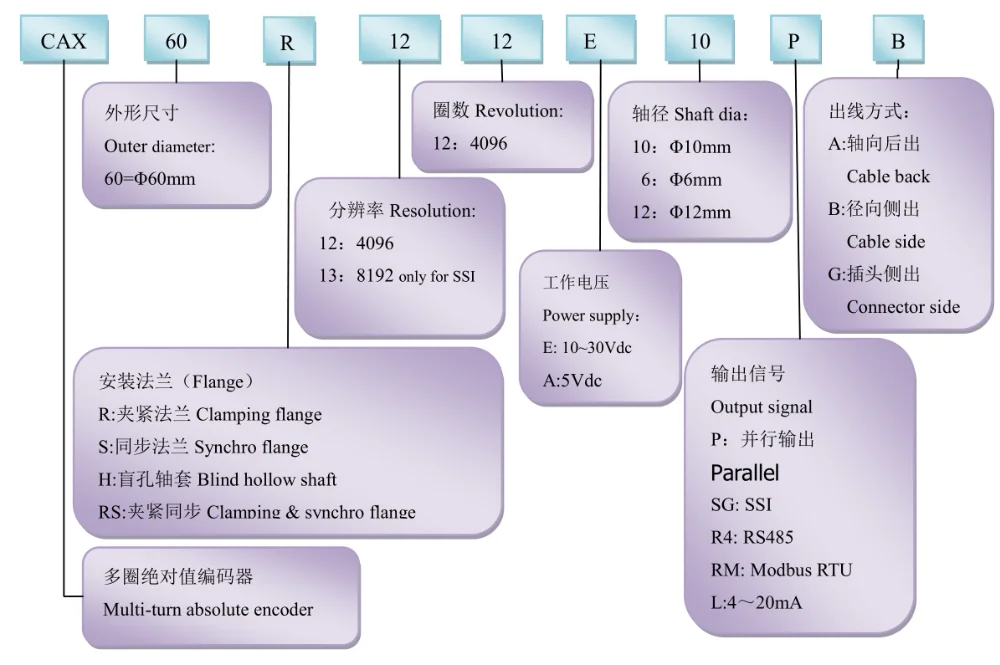

Selection guide

Multi turn type

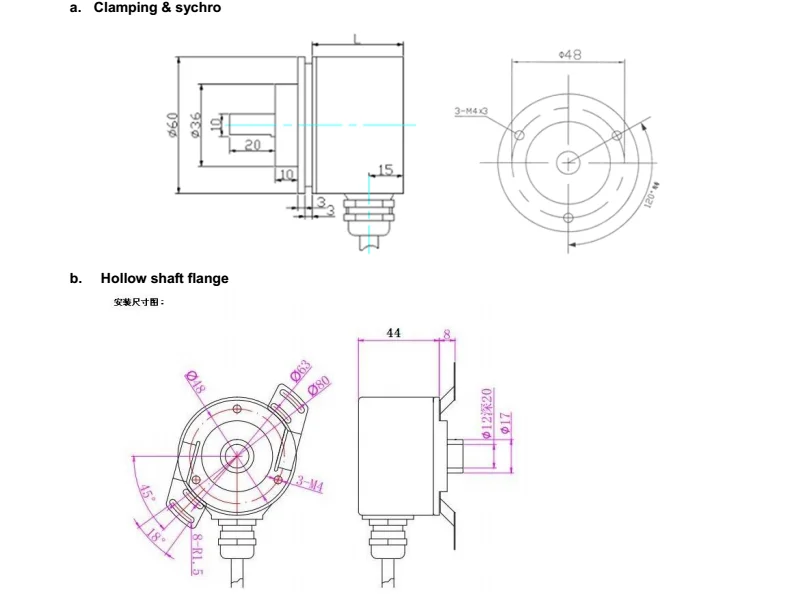

Dimensions: (in mm)

certifications
