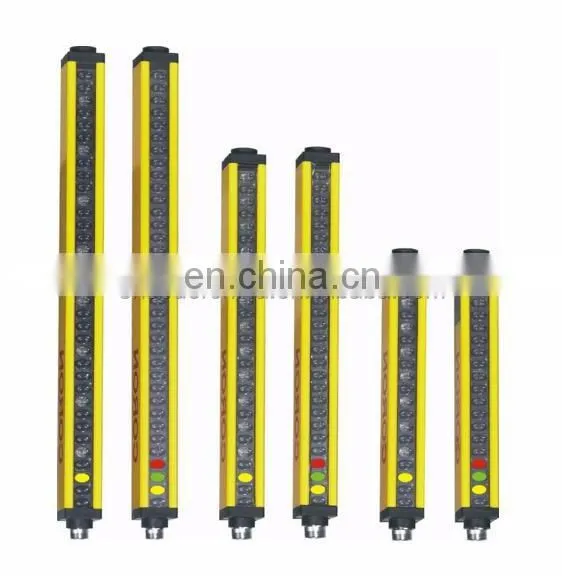

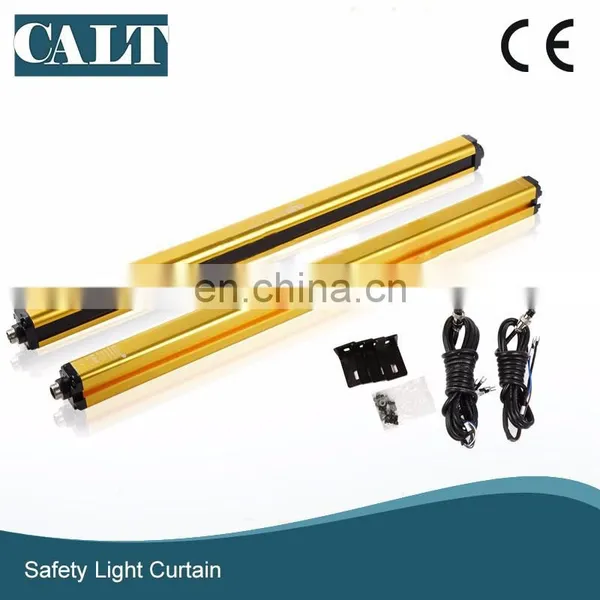

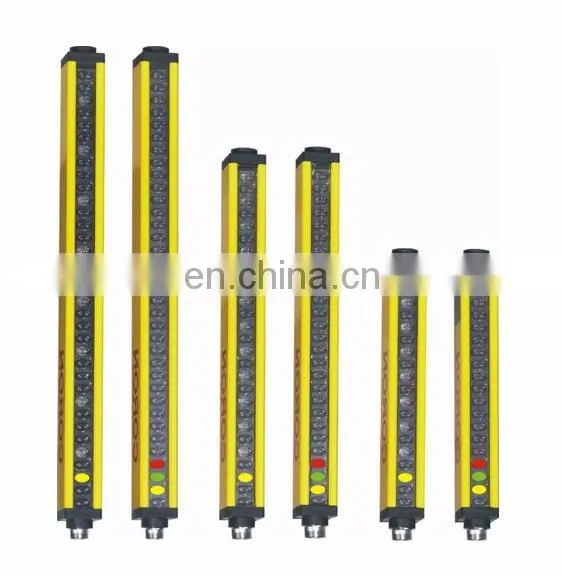

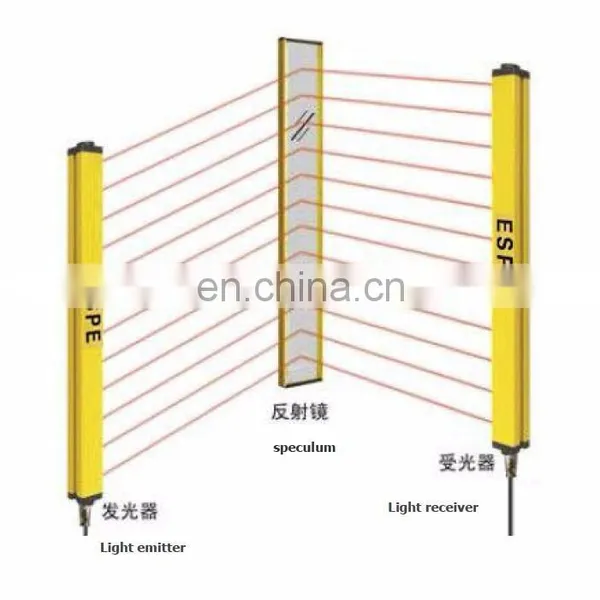

Automated Safety Gratings Anti-seismic and Anti-interference Area Sensors Epstein ESN Infrared Light Curtains
1.Whole-process self-checking, good antiknock characteristic able properly.
2.High resolution ratio, it can protect our fingers and various simple and convenient ways to install.
3.The optic axis easy to alignment, strong anti-light and electromagnetic interference, low power dissipation design, short response time ,high reliability.

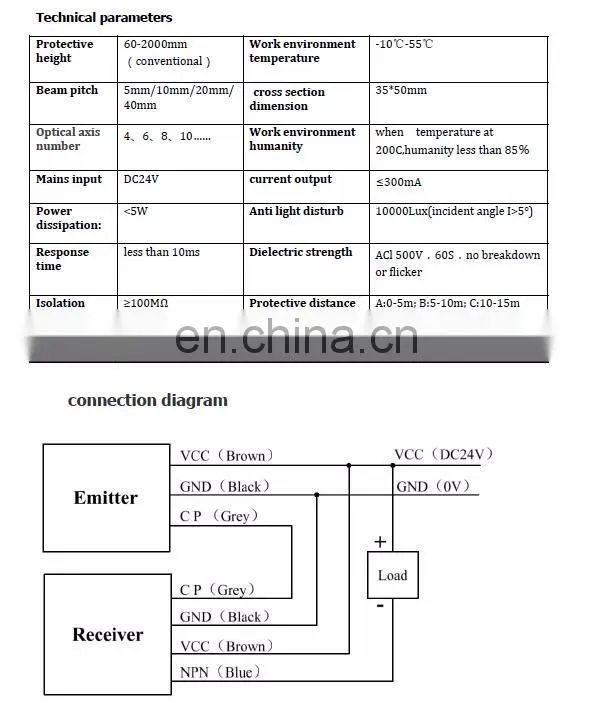

Technical parameters:

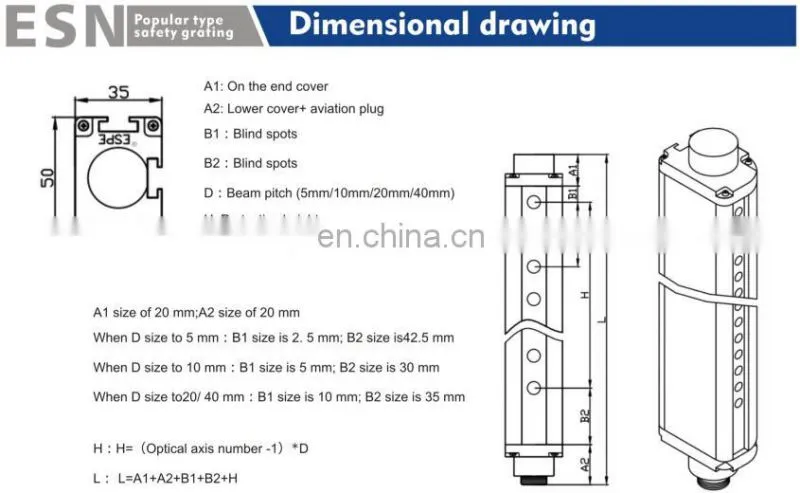

Dimensional drawing:
A1 size of 14 mm;A2 size of 20 mm
When D size to 5 mm：B1 size is2. 5 mm; B2 size is42.5 mm
When D size to 10 mm：B1 size is 5 mm; B2 size is 30 mm
When D size to20/ 40 mm：B1 size is 10 mm; B2 size is 35 mm
H：H=（Optical axis number -1）*D
L： L=A1+A2+B1+B2+H
ELG series Selection of instructions:

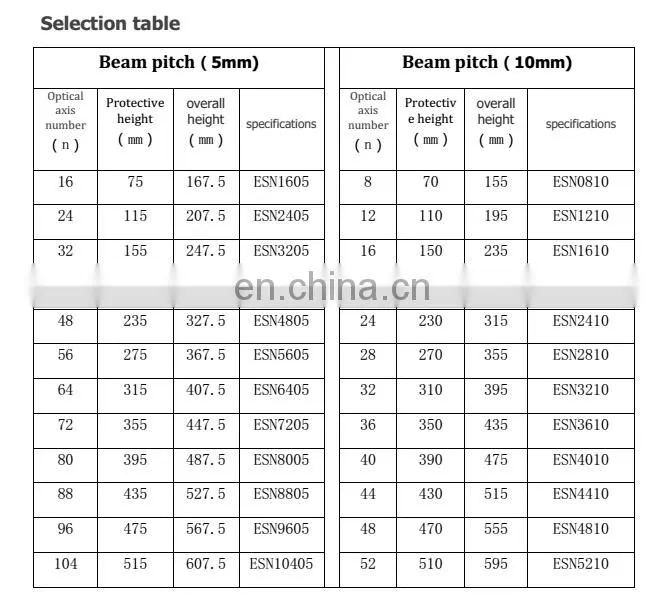

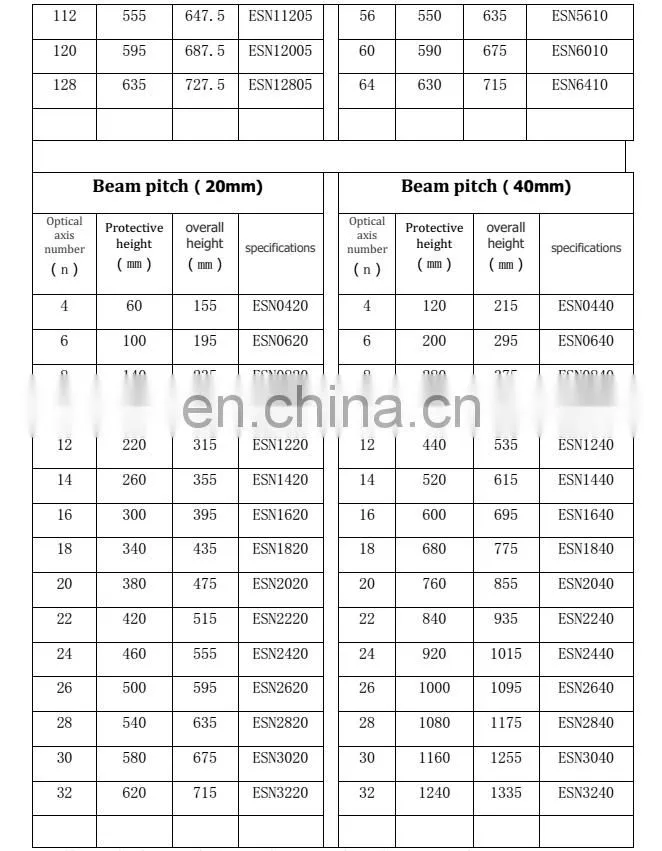

Selection table:

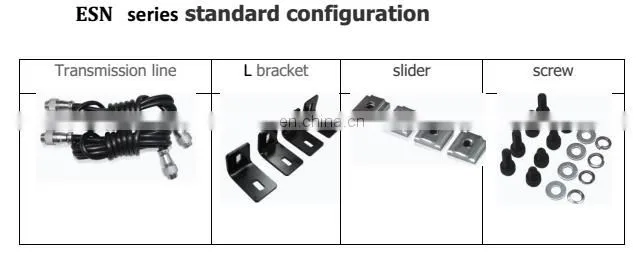

Stents selection table:
Application case:
