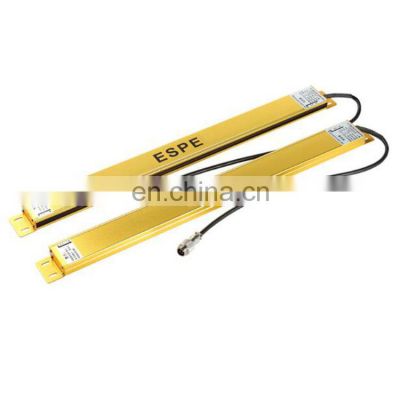

Photoelectric Infrared Safety Light Curtain Sensors EB15 0620
Products feature
1. The ultra-thin grating is initiated in the domestic industry, the thickness is 15mm,small application space, clinging install or the device need to be hided, which can be used as protection or enablement signal .
2. Strong anti-jamming capability in electromagnetism signal and hard light disturb
3. Perfectly self-testing function ,adopt the latest safety technology design, following to Europe standard to design rigidly.
4. SMD paster design , imported high-end component
5. Imported aging equipment to protect quality of products of safety and of stability.
Technical parameters
Protective height |
60-2000mm(conventional) |
Work environment temperature |
-10℃-55℃ |
Beam pitch |
10mm/20mm/40mm/80mm |
cross section dimension |
39*15mm |
Optical axis number |
4,6,8,10…… |
Work environment humanity |
when temperature at 200C,humanity less than 85% |
Mains input |
DC24V |
current output |
≤300mA |
Power dissipation: |
<5W |
Anti light disturb |
10000Lux(incident angle I>5°) |
Response time |
less than 10ms
|
Dielectric strength |
ACl 500V.60S.no breakdown or flicker |
Isolation resistance |
≥100MΩ |
Protective distance |
0-1500mm |
output mode |
NPN / PNP / Relay normally open / Relay normally closed (optional) |
||
