Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Original Electric Measuring Weighing Sensor Avionics HM11 Load Cell 5/10/20/30/50/100/200/300 kg Bellows Sensor

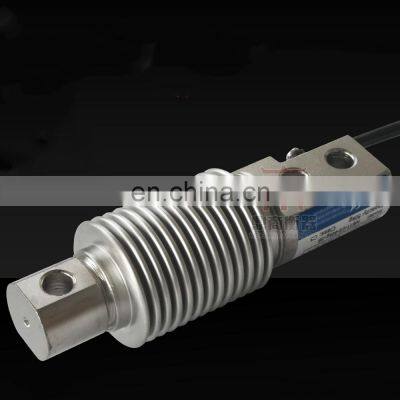

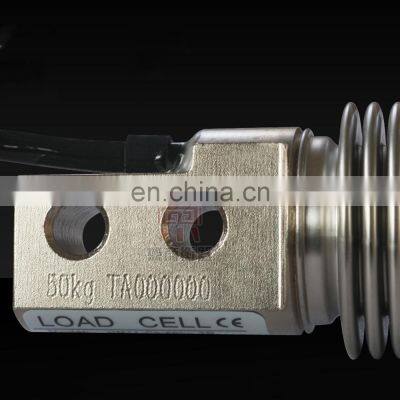

Original Electric Measuring Weighing Sensor Avionics HM11 Load Cell 5/10/20/30/50/100/200/300 kg Bellows Sensor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500kg Measuring Range DYLY-104-500kg Load Cell Widely Used in Scales and Wan Materials Testing MachinesNegotiableMOQ: 1 -
Applied to Belt Scale Hopper Scale Electromechanical Combined Scale Load Cell DYLY-103-5kgNegotiableMOQ: 1
-
High Precision Alloy Steel Load Cell PST Series 300/500 kg Weighing Sensor Load Cell 10V DC on SaleNegotiableMOQ: 1
-
High Quality S Tension Sensor Load Cell H3-C3 Series 150/250/750 kg for Belt Balance Hook WeightNegotiableMOQ: 1
-
Original Genuine US Force-transfer S-type Weighing Sensor BSS-500kg 100/200/500/750 kg Alloy Steel SensorNegotiableMOQ: 1
Product Description
Original electric measuring weighing sensor avionics HM11 load cell 5/10/20/30/50/100/200/300 kg bellows sensor
Note: If you want other capacity or other model types please feel free to contact me. Or send me inquiry before placing orders.
Capacity |
C3 |
Rated output |
2.0+/-0.02mV/V |
creep |
+/-0.016% FS/30min |
Composite error |
<=0.02%FS |
Temp effect on output |
<=0.011 of applied output per degree |
Temp effect on zero |
<=0.015 of rated output per degree |
Operating temp. |
-35~70 degree |
Safe load limit |
150% |
Input impedance |
460ohm +/- 50ohm |
Output impedance |
351ohm +/- 20ohm |
insulation |
>=5000Mohm(50V DC) |
Recommended voltage |
5~12 V DC |
Max recommended voltage |
18V DC |
