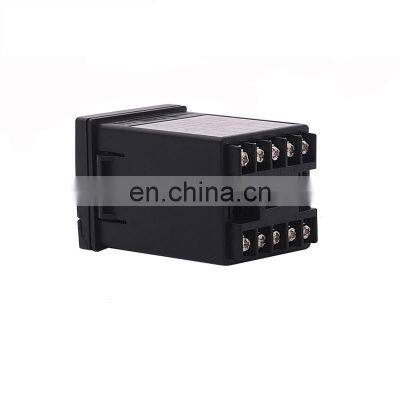

HB484J Intelligent Double Digital Display Counter Reversible Add Subtract Count Recognizable Phase Grating Table photo-4
HB484J Intelligent Double Digital Display Counter Reversible Add Subtract Count Recognizable Phase Grating Table photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
HB484J intelligent double digital display counter reversible add subtract count recognizable phase grating table
Product Description
① It can realize reversible counting, plus / minus counting and phase recognition counting ② It can be connected with various proximity switches, photoelectric switches, rotary encoders, etc ③ Arbitrarily set the counting rate ④ The current count value and setting value will not be lost after power failure ⑤ A variety of relay output modes can be selected to fully meet the needs of control field
Specification
1. Working power supply: AC / dc85 ~ 260V (other voltages can be customized) 2. Display range: 0 ~ 9999 3. Measurement frequency: 0 ~ 5000Hz 4. Trigger mode: low level trigger (triggered by falling edge of switch contact) 5. Instrument display value: input value × a magnification △ B magnification + initial value C 6. Ratio a: 1 ~ 9999 7. Ratio B: 1 ~ 9999 Initial value: 9999 C 9. Feed output: dc9v / 30mA 10. Contact capacity: AC250V / 3A (resistive load) 11. Contact life: 105 times 12. Dimension: hb484: 48 × 48 × 82mm HB724:72×72×62mm 13. Opening size: hb484: 45 × 45mm HB724:67×67mm 14. Service environment: 0 ~ 50 ℃, 85% RH
