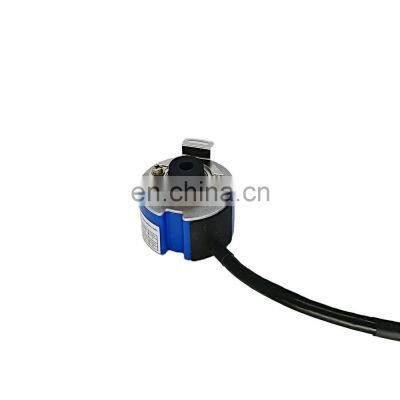

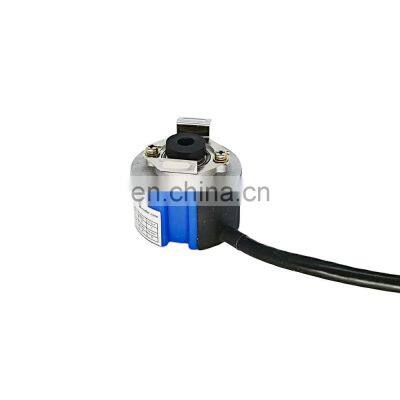

CALT GSM48 series incremental hollow shaft rotary servo motor encoder for automatic control
Applications
Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting
Features
* Internal ASIC devices, high reliability, long life, strong anti-interference.
* Wide range of resolutions, and does not require signal conditioning.
* With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

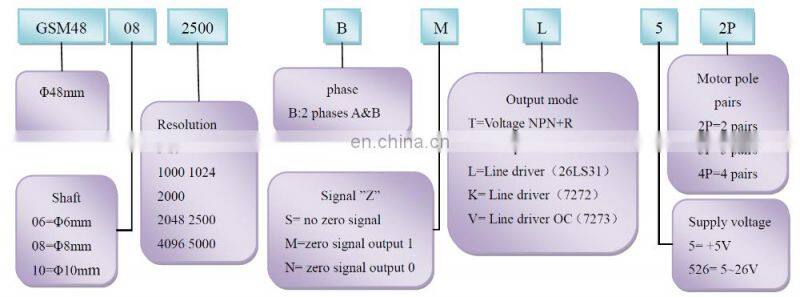

Definition of Models and types

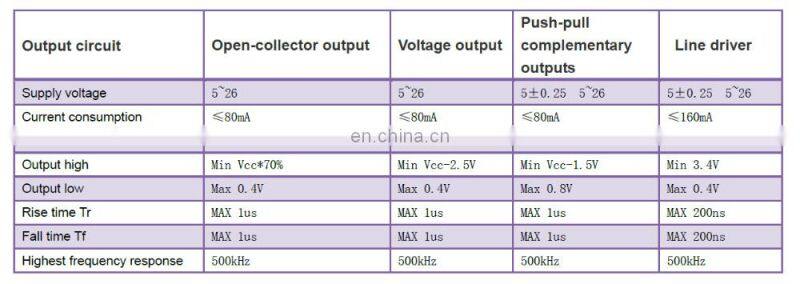

Electrical Characteristics

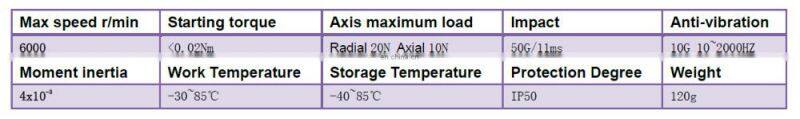

Mechanical properties

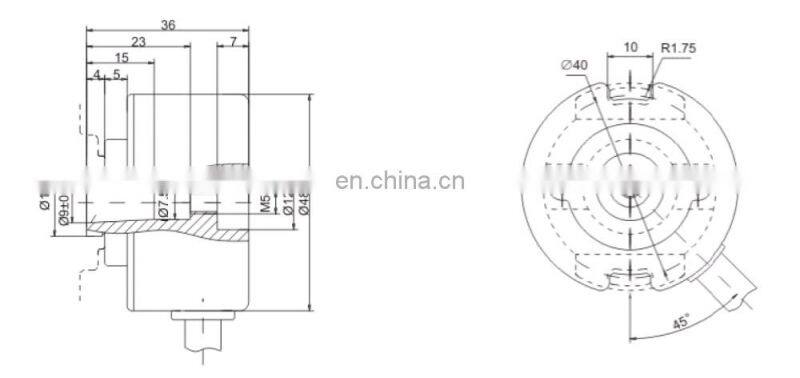

Dimensions (mm)

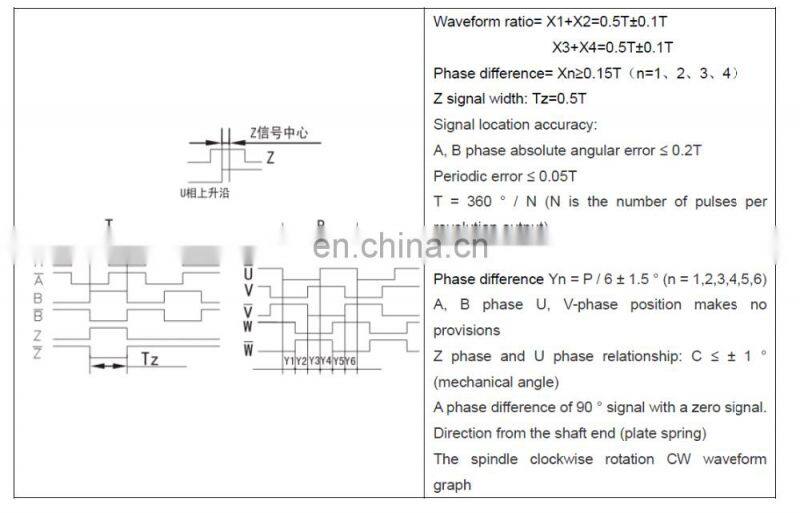

Output phases
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
