Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder

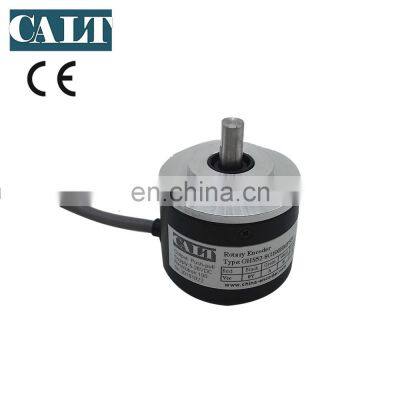

CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder

Shanghai Qiyi Co., Ltd.
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder thumbnail-1
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder thumbnail-2
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder thumbnail-3
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder thumbnail-4
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder thumbnail-5
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder photo-1
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder photo-2
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder photo-3
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder photo-4
CALT 52mm Solid Shaft Optical Encoder 100 1024 2000 2048 5000 Ppr Incremental Rotary Encoder photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

CALT 52mm solid shaft optical encoder 100 1024 2000 2048 5000 ppr incremental rotary encoder

     Widely used in automatic control, automatic measurement, as the angle and speed sensors. ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water.

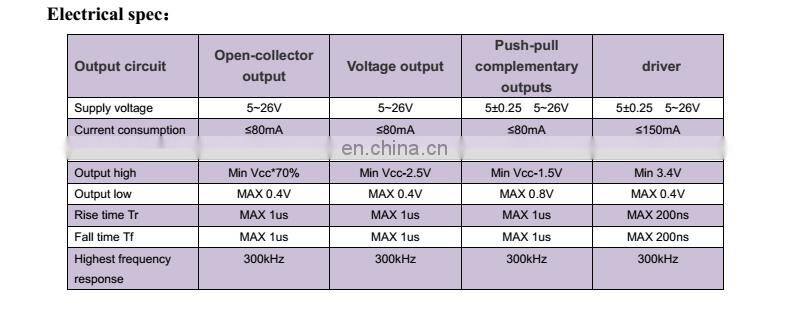

Specifications
Related Product

CALT GHS38 Solid shaft Incremental rotary encoder

CALT GHS58 Solid shaft Incremental rotary encoder

CALT PD30 mini Incremental rotary encoder Kit

CALT CAX60 Blind shaft Multi turns absolute rotary encoder

CALT CAS60 Solid shaft Single turn absolute rotary encoder

CALT GHW38 Wheel encoder Widely used in textile and packaging.

certifications
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
