CALT 48mm 2500ppr Tamagawa Servo Motor Rotary Encoder
- T/T Credit Card
You May Like
-
CALT 25mm Outer Mini Optical Encoder 1000 Ppr Micro Incremental Rotary Encoder
-
Cheap China Hollow Shaft Absolute Encoder Outer Dia 90mm Shaft 42mm Push Pull to Replace EL88P2S5/28P25X3PR3
-
CNC Rotary Encoder ZSP4006-423G-600BZ3-5-12F-A4X 600ppr Push Pull Output Incremental Encoder
-
ZSP3806-003G-1024BZ3-5-24F Incremental Photoelectric Encoder 5 24 v 6mm Solid Encoder
-
TS2640N321E64 Photoelectric Incrimental Elevator Encoder ac 10v
-
ZKT8025-202J-1200BZ2-24C Same Function With GHH80-30G1024BMP526 1024ppr PC Socket Incremental Encoder Ready to Ship
Product Description

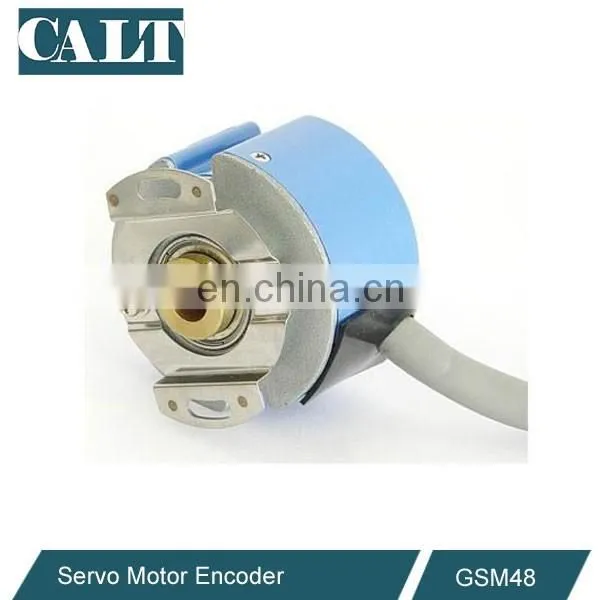

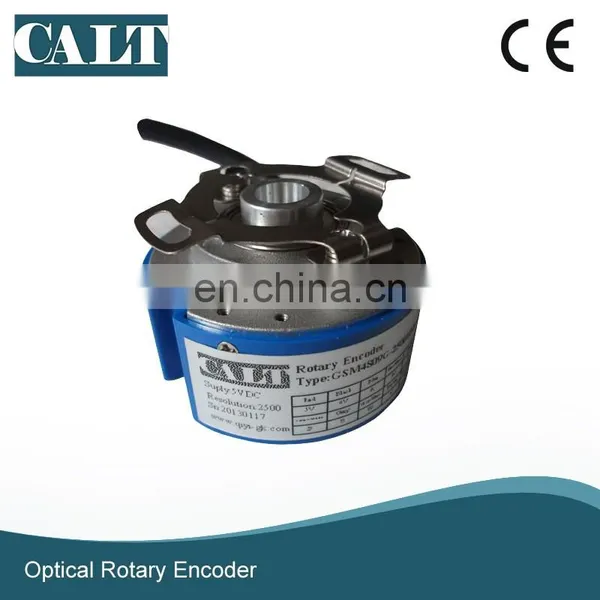

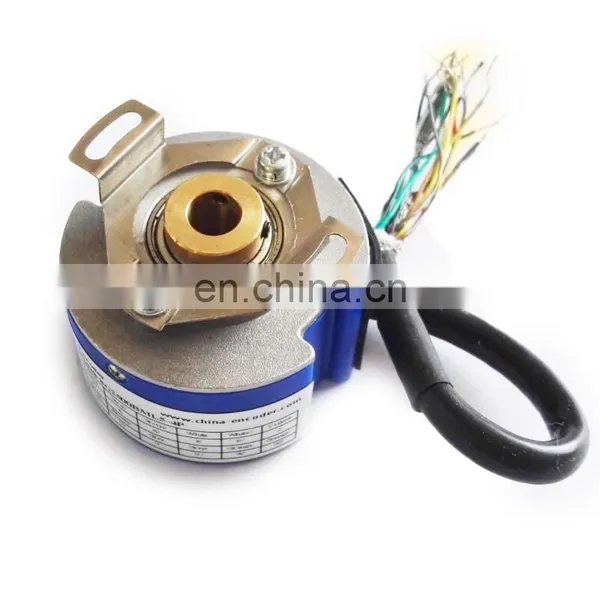

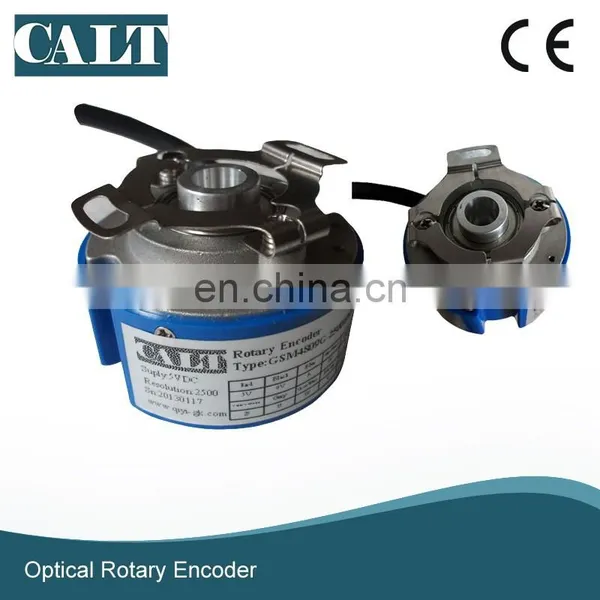

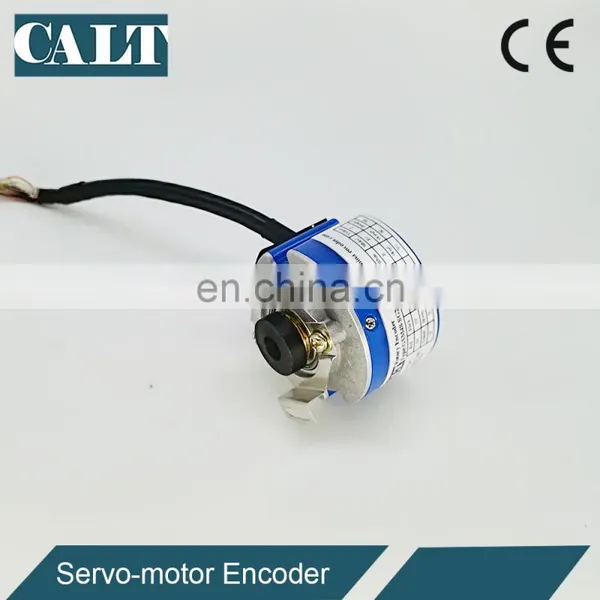

CALT 48mm 2500ppr Tamagawa Servo motor Rotary encoder
Applications:
Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supportingFeatures:
* Internal ASIC devices, high reliability, long life, strong anti-interference.
* Wide range of resolutions, and does not require signal conditioning.
* With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL
CALT GHS38 Solid shaft Incremental rotary encoder
CALT GHS58 Solid shaft Incremental rotary encoder
CALT PD30 mini Incremental rotary encoder Kit
CALT CAX60 Blind shaft Multi turns absolute rotary encoder
CALT CAS60 Solid shaft Single turn absolute rotary encoder
CALT GHW38 Wheel encoder Widely used in textile and packaging.
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
