CALT Servo Motor Hollow Encoder------GSM48-9 SeriesIP54

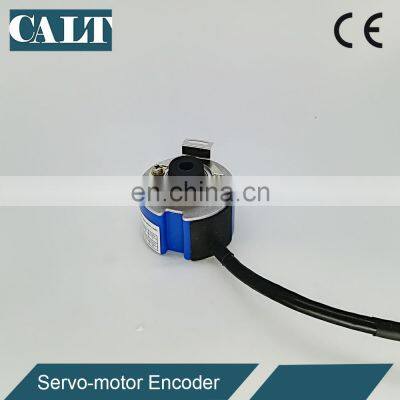

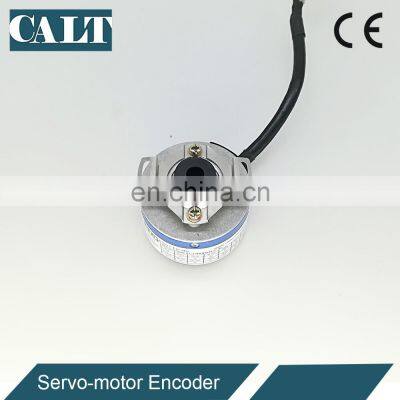

Product Description
Applications
Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting

Features
* Internal ASIC devices, high reliability, long life, strong anti-interference.
* Wide range of resolutions, and does not require signal conditioning.
* With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

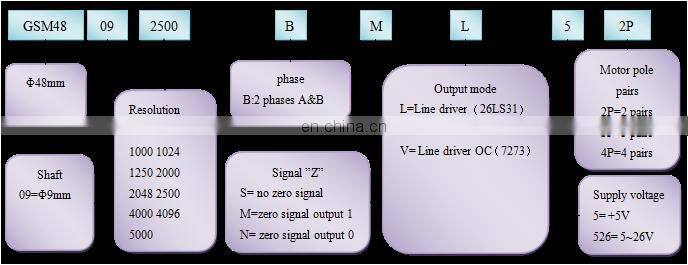

Model

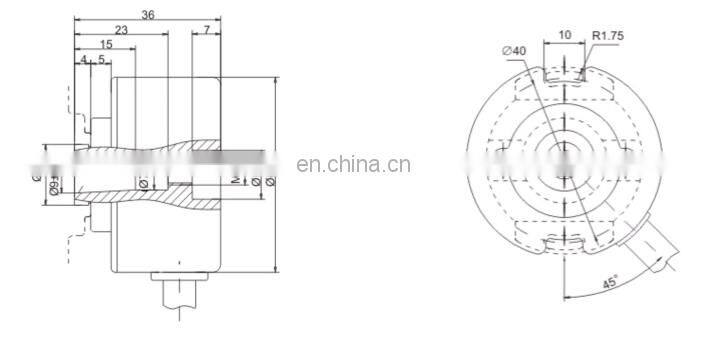

Dimensions

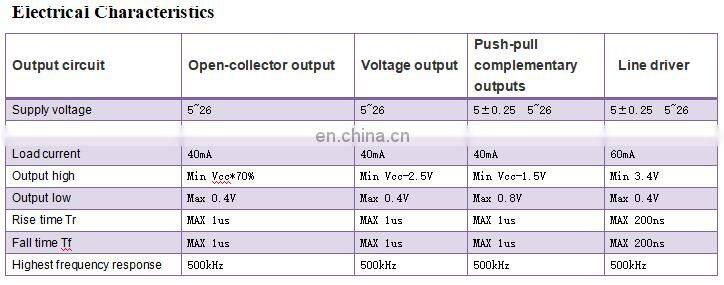

Specification
Output phase shift

Waveform ratio= X1+X2=0.5T±0.1T
X3+X4=0.5T±0.1T
Phase difference= Xn≥0.15T（n=1、2、3、4）
Z signal width: Tz=0.5T
Signal location accuracy:
A, B phase absolute angular error ≤ 0.2T
Periodic error ≤ 0.05T
T = 360 ° / N (N is the number of pulses per revolution output)
Cycle P = 360 ° / N1 ± 1.5 ° (N1 = 2,3,4)
Phase difference Yn = P / 6 ± 1.5 ° (n = 1,2,3,4,5,6)
A, B phase U, V-phase position makes no provisions
Z phase and U phase relationship: C ≤ ± 1 ° (mechanical angle)
A phase difference of 90 ° signal with a zero signal.
Direction from the shaft end (plate spring)

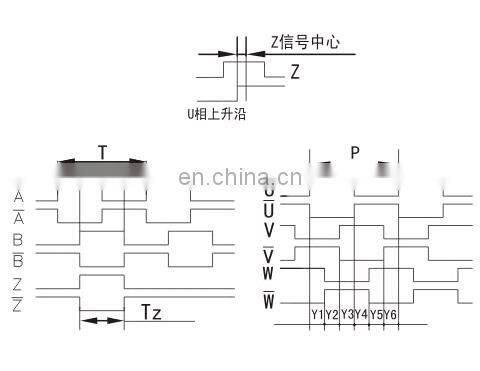

The spindle clockwise rotation CW waveform graph
Connections
Related Product

CALT GHS38 Solid shaft Incremental rotary encoder

CALT GHS58 Solid shaft Incremental rotary encoder

CALT PD30 mini Incremental rotary encoder Kit

CALT CAX60 Blind shaft Multi turns absolute rotary encoder

CALT CAS60 Solid shaft Single turn absolute rotary encoder

CALT GHW38 Wheel encoder Widely used in textile and packaging.
