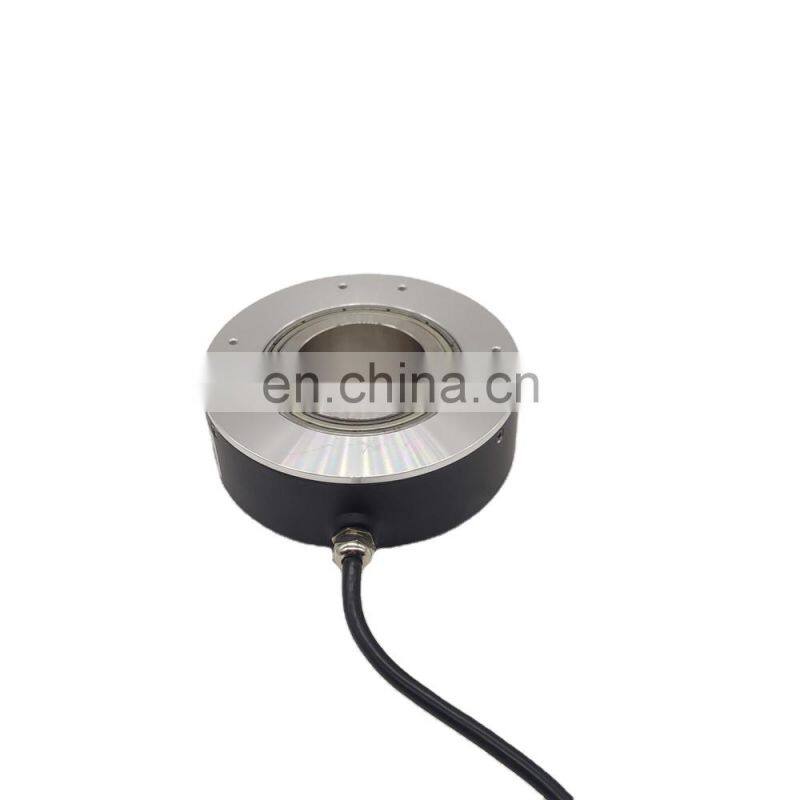

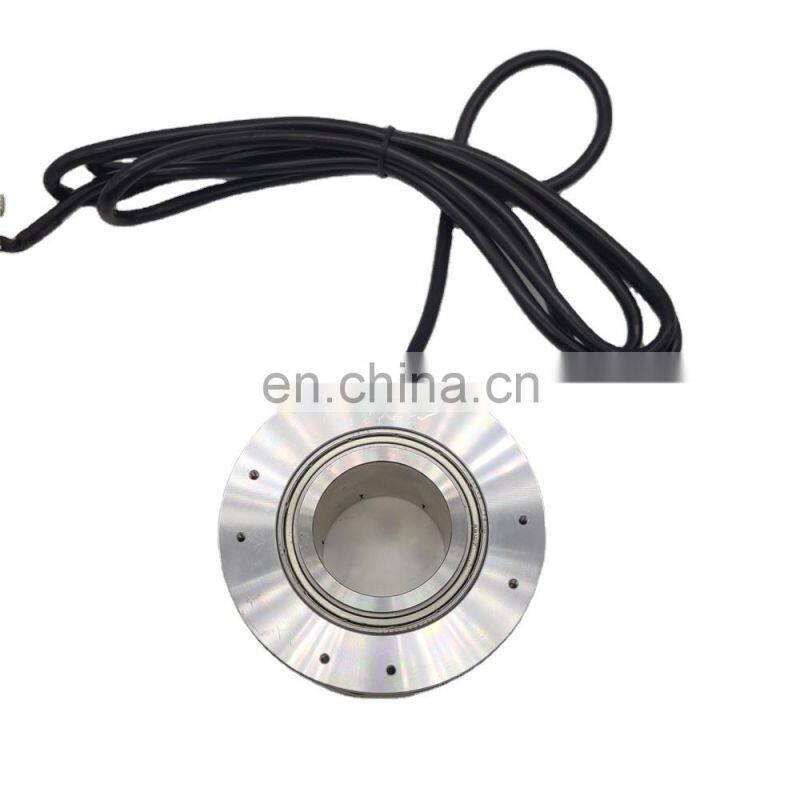

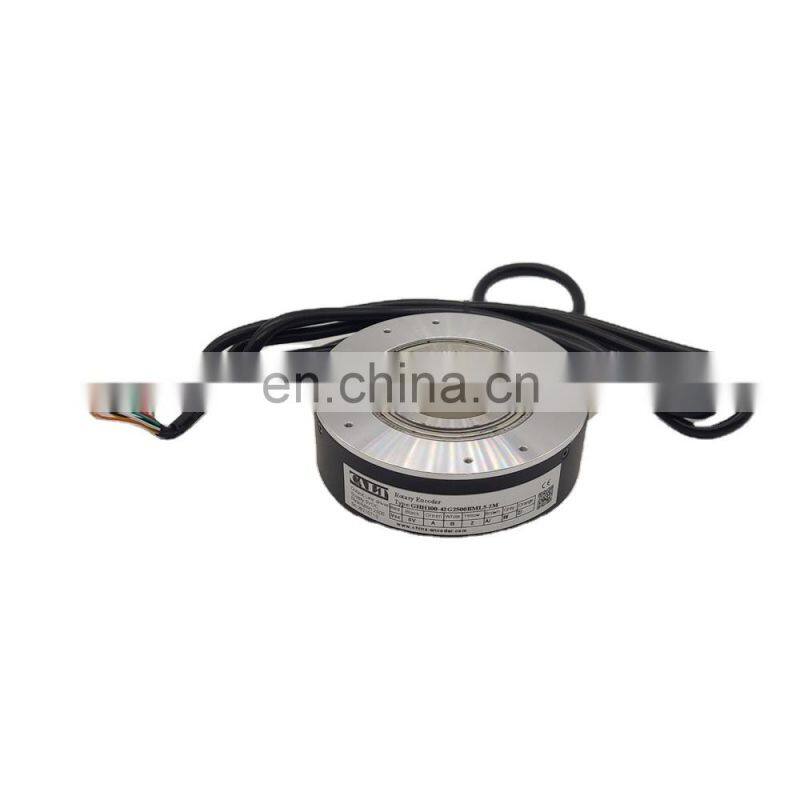

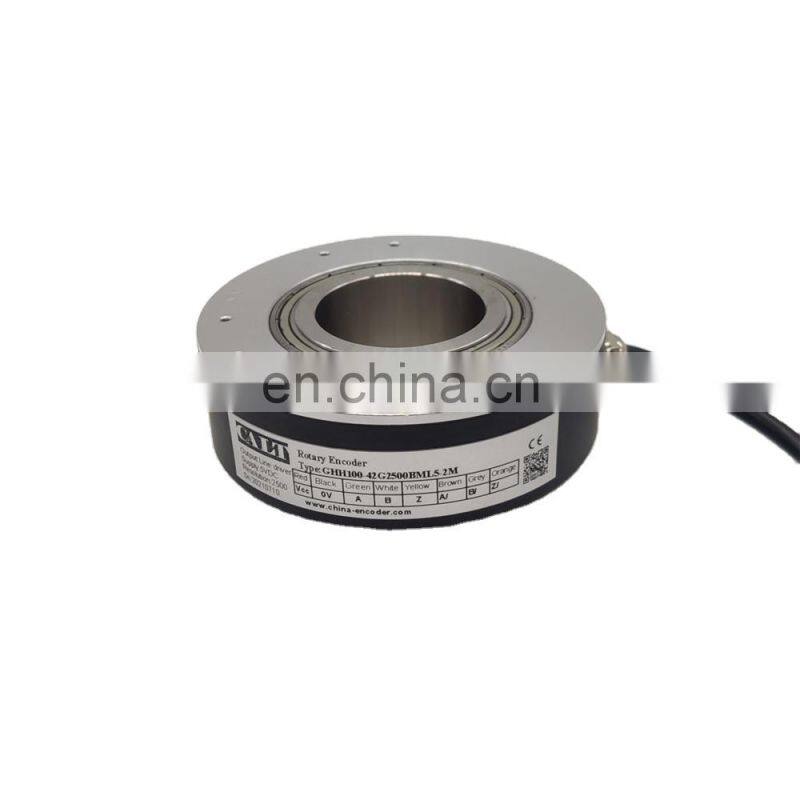

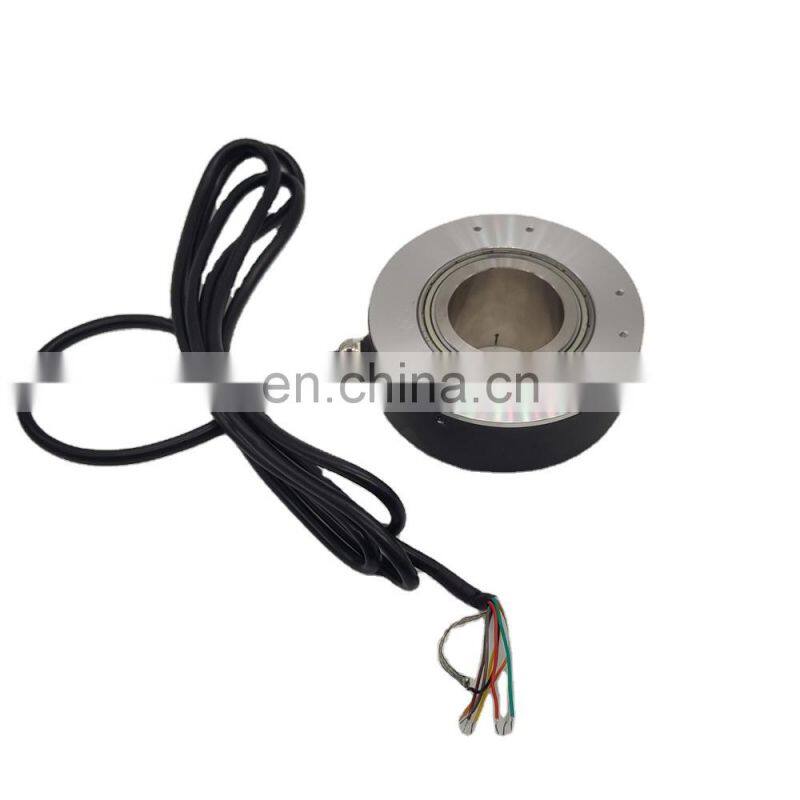

2500ppr line driver output GHH100-42G2500BML5-2M rotary encoder for lifting
- 1000 per Month
- T/T Credit Card
- 48T2-25-50-5MD-98-L-015 rotary encoder instead of TS5217N8577 for servo motor
- 400ppr NPN output encoder ZSP4006-003G-400B rotary encoder
- ENC-100-A-T Shearing machine photoelectric encoder ESTUN
- HEDS-5500 shaft modular encoder module 500ppr optical encoder reader
- Autonics 40MM outer size encoder 500ppr E40HB6-500-3-N-5 rotary encoder for packing machine
- GHS30-4E1024BSP5 CALT 1024ppr 30mm outer 4mm shaft

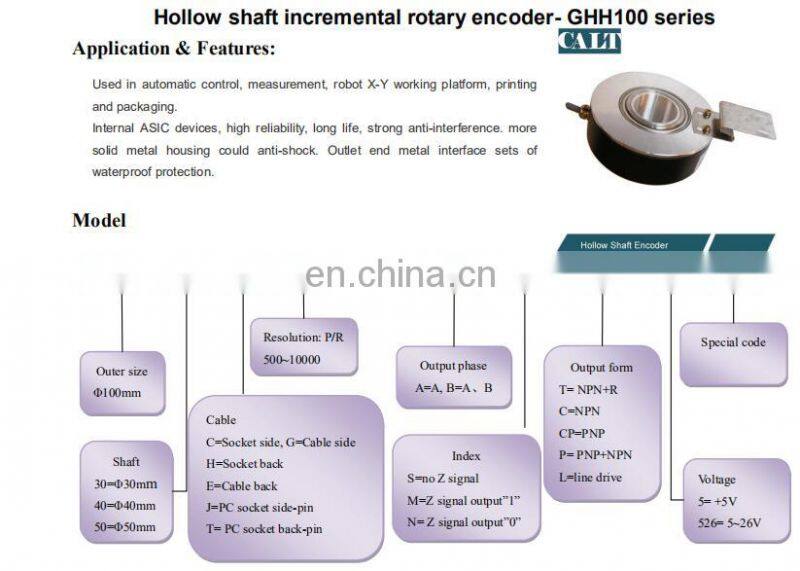

Product Description
item | value |
Model Number | GHH100-42G2500BML5-2M |
Type | Incremental Encoder |
Place of Origin | China |
Shanghai | |
Brand Name | calt |
Usage | speed and angle sensor |
Theory | optical sensor |
Output | line driver |
Description | rotary encoder |

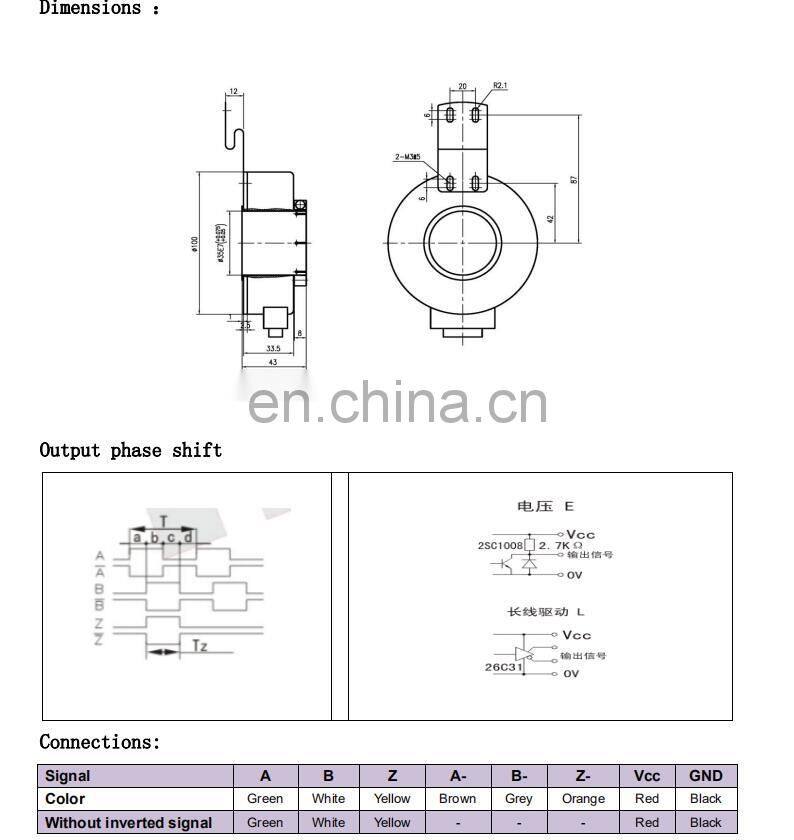

Outer Diameter | 100mm |
Shaft Diameter | 42mm |
resolution | 2500ppr |
output | line driver |
Current consumption | ≤150mA |
Output high | Min 3.4V |
Rise time Tr | MAX 200ns |
Fall time Tf | MAX 200ns |
Highest frequency response | 300kHz |
Supply Voltage | 5VDC |
CWP-S400 400mm 12V/24V analog output 4-20mA 0.6mm cable diameter resistive displacement sensor
CALT CESI-S1500 1500mm China Factory Measurement Tool Draw wire position sensor
DC 5-26v Linear Scale Absolute Encoder Draw Wire Sensor linear position sensor CESA-S1100-RM
CALT 24 Volt String Potentiometer Sensor Linear Potentiometer Position Linear Sensor
CALT 2300mm 4mA full in 20mA full out analog output draw-wire displacement encoder
KTM Series Mini Type Low Stoke Range Resistive Displacement Sensor
We are based in Shanghai, China, start from 2009,sell to South Asia(15.00%),Northern Europe(10.00%),North America(10.00%),Southern Europe(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(8.50%),Mid East(5.00%),Southeast Asia(5.00%),Central America(3.00%),Eastern Asia(2.00%),Oceania(1.00%),Africa(0.50%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
rotary encoder,draw wire sensor,load cell,gear motor,manual pulse generator
4. why should you buy from us not from other suppliers?
1. We are familiar to many application fields Since with 8 years experience in sensors from founded 2009 2. 6 years export experience, customers from Europe, America, Australia, Asia, Africa 3. Can customize products for customer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
