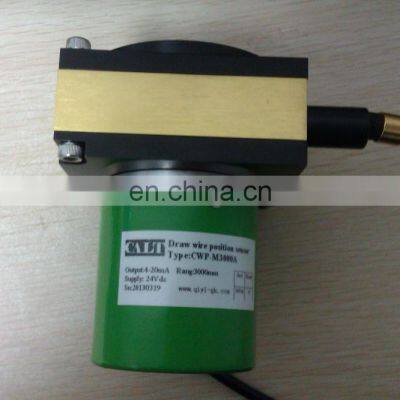

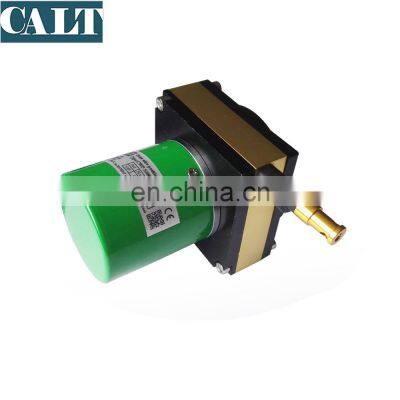

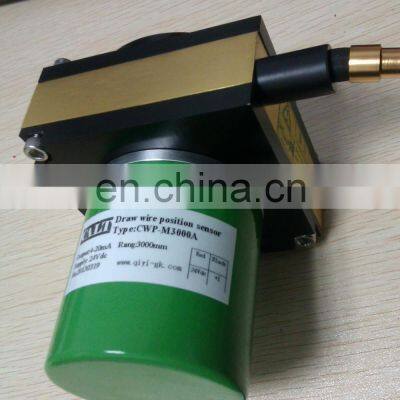

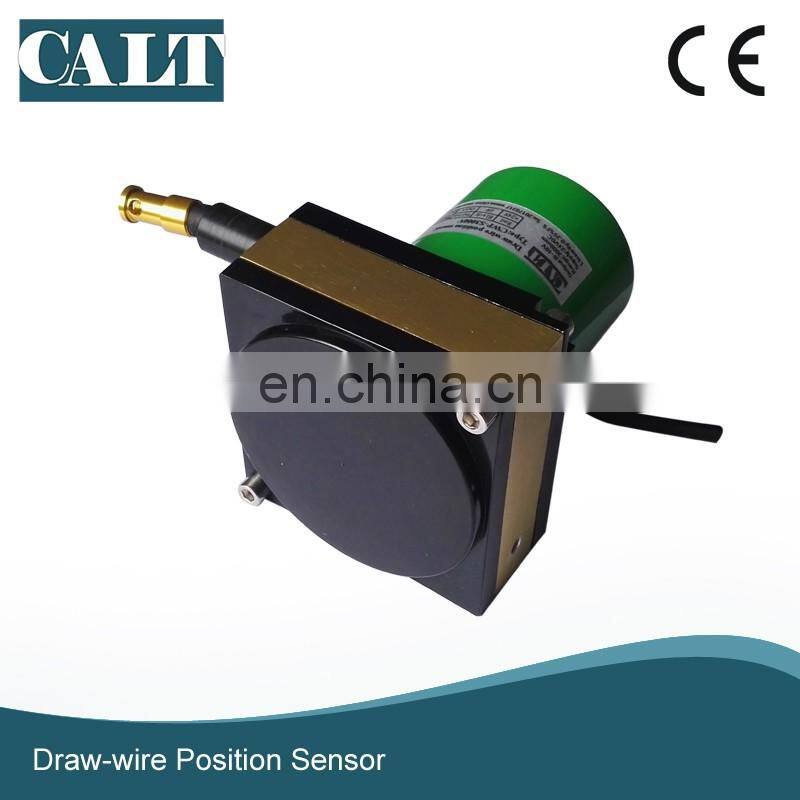

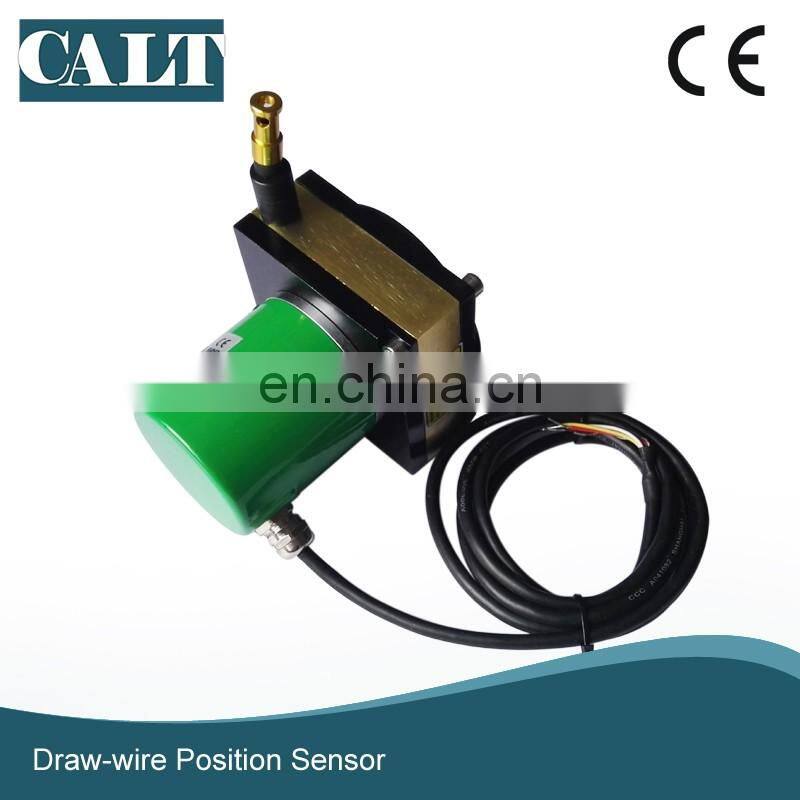

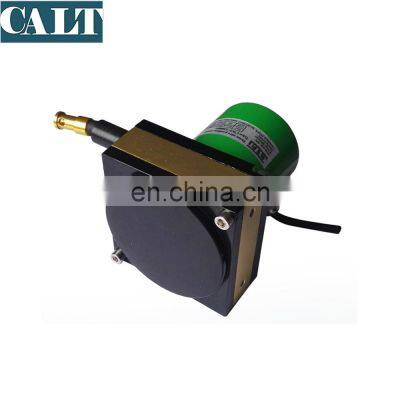

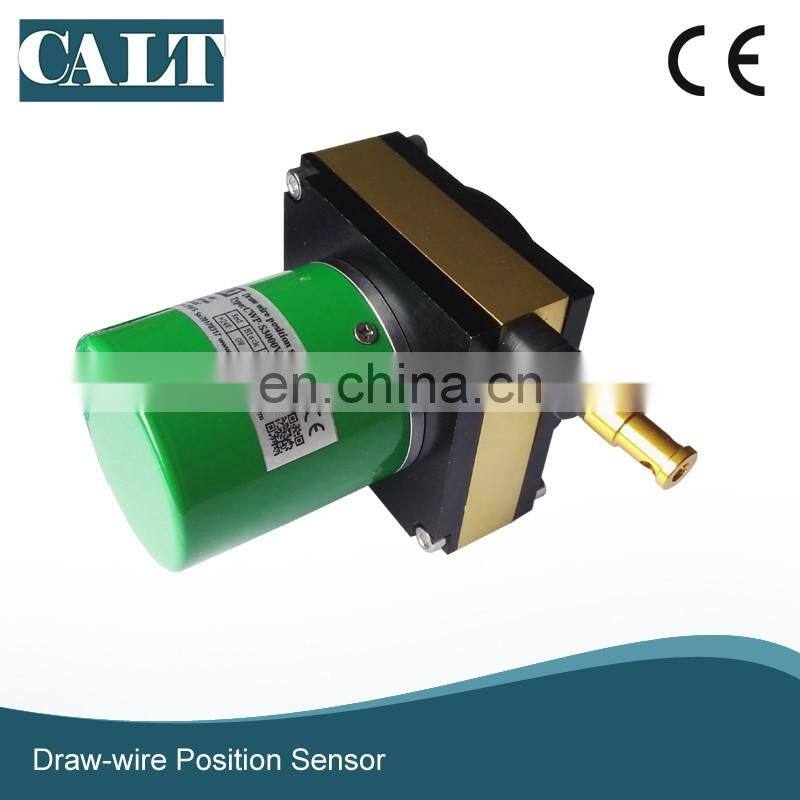

CWP-M3000A Rope Potentiometer 3000mm Wire Encoder

Shanghai Qiyi Co., Ltd.
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder thumbnail-1
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder thumbnail-2
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder thumbnail-3
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder thumbnail-4
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder thumbnail-5
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder photo-1
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder photo-2
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder photo-3
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder photo-4
CWP-M3000A Rope Potentiometer 3000mm Wire Encoder photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

CWP-M3000 Linear Potentiometer 3000mm Measuring Range









Detection method

Precision potentiometer

Resolution

Theory of infinite

Measuring rang

0~3000mm

Anti-vibration

10HZ - 2000HZ,10G

Output

4~20mA,0~10Vdc,0~5Vdc,

Resistance

Repeatability

+/-0.02FS

Linearity

Standard:0.25%FS   Precision:0.1%FS

Operating Temperature

-10℃~70℃

rope

wire rope 0.6-1.2mm, rope maximum load: 16KG

Storage Temperature

-20℃~80℃

Starting torque

<600g

protection

IP65/IP54

PULL speed

Max:1m/s

Life

>200 000 times

Operating voltage

12~24VDC

Weight

<600g



CWP-M3000A Rope Potentiometer 3000mm wire encoder


CWP-M3000A Rope Potentiometer 3000mm wire encoder

CWP-M3000A Rope Potentiometer 3000mm wire encoder
