Pharmaceutical Suppository Production Line Suppository Machine Suppository Filling System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Save Energy Fragile Food Granule Packing MachineNegotiableMOQ: 1 -
Sachet High Efficient 3-Side Seal Packaging MachineNegotiableMOQ: 1
-
Cephalosporin Capsule Milk Tablet Blister Packing Machine Cartoning Product LineNegotiableMOQ: 1
-
PFS Syringe Health Products Cod Liver Oil Blister Packing MachineNegotiableMOQ: 1
-
DPP Series Honey Cheese Automatic Blister Packing MachineNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Products Description

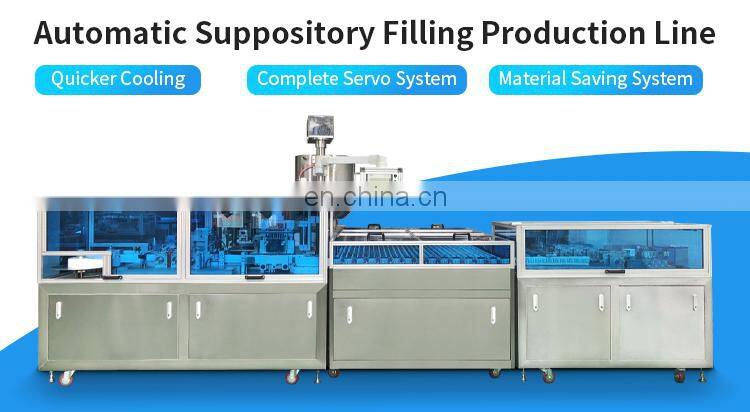

Automatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and
other production processes to complete the whole process, and the production capacity is 8000-12000grain/hour.
other production processes to complete the whole process, and the production capacity is 8000-12000grain/hour.
Production process：

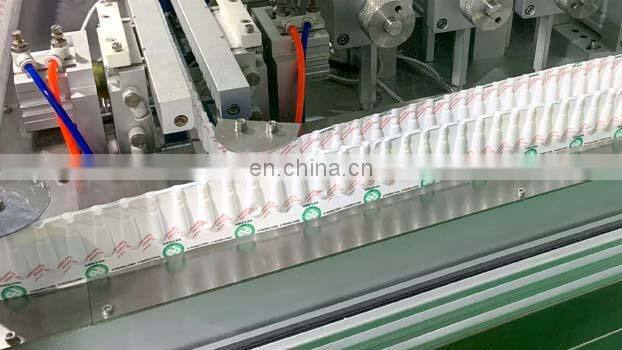

From automatic suppository shell forming, to the filling station of liquid medicine, Recirculating cooling set (liquid to solid),
Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)
Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)
Packaging rang

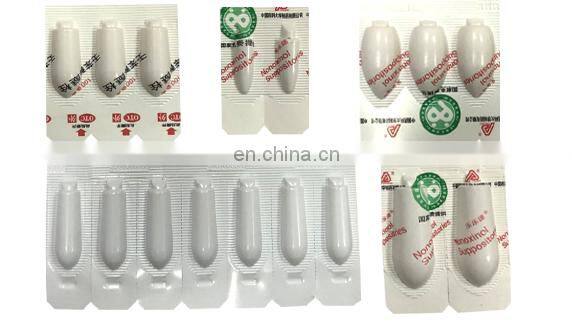

-- Suitable for the production of special shape such as bullet head, torpedo shape and duck bill.
-- Adapt material: synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc.
Product Paramenters
Model | SupLab-1 | SupLab-3 | SupLab-7 | SupLab-10 |
Output | 1000-1500 pcs/h | 4500-5000 pcs/h | 10000 pcs/h | 15000 pcs/h |
Single dosage | 0.5—5g | 0.5—5g | 0.5—5g | 0.5—5g |
Dosage allowed | ＜±2% | ＜±2% | ＜±2% | ＜±2% |
Packaging Film | PVCPE | PVCPE | PVCPE | PVCPE |
Stirring tank capacity | 20L | 30L | 70L | 70L |
Air pressure | ≥0.6Mpa | ≥0.7Mpa | ≥0.7Mpa | ≥0.7Mpa |
Air consumption | 1.2m³ | 1.5m³ | 1.5m³ | 1.5m³ |
Water consumption | 50kg(recycling) | 50kg(recycling) | 50kg (recycling) | 50kg (recycling) |
Working voltage | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V |
Total power | 4KW | 5KW | 7.5KW | 9.5KW |
Machine Weight | 500KG | 1000KG | 2000KG | 2500KG |
Overall dimensions | 2300*1200*1800mm | 3587*1388*1828mm | 5302*2120*1809mm | 5965*2120*2,150mm |
Advantages
PLC checking function:
Through PLC online checking function to self-checking and alarm for running stoppage, and show the reason of stoppage in order that the operator remedy it in time.
Filling part within free static electricity system.
Agitation vat speed adjustment system
Cooling speed adjustment system
Cutting gains speed adjustment system
Notice: end product grains can be set 4/5/6/7gains. The machine can product PVC/PE
Product Highlights

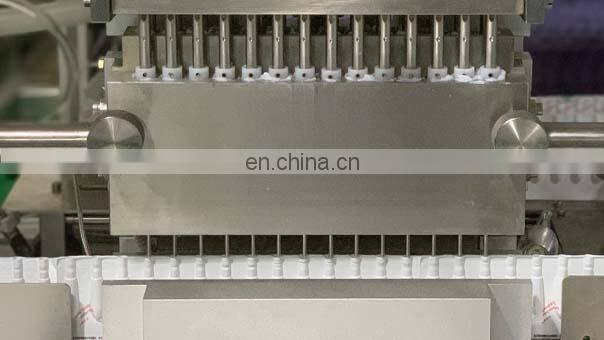

01. The insertion type linear perfusion mechanism
-- The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.
02. Production capacity
-- The production capacity is 4500-5000 grain/hour.
-- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.

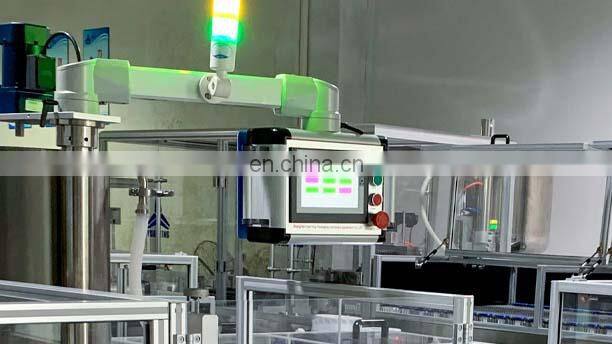

03. Siemens PLC control system
-- The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment,
accurate temperature control and smooth operation.
accurate temperature control and smooth operation.

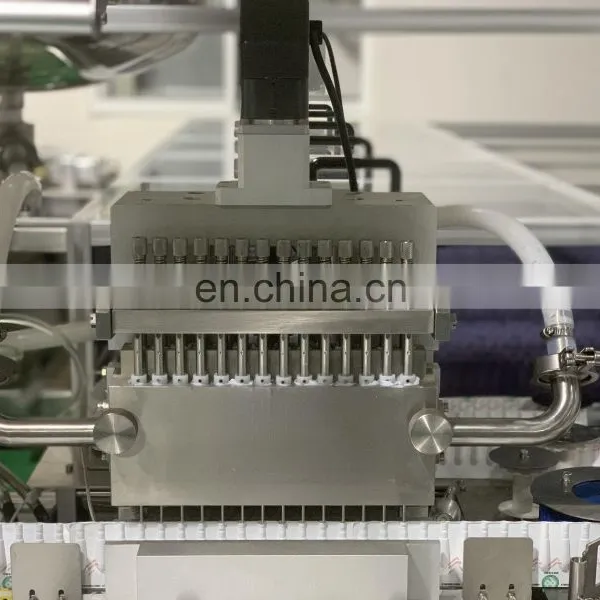

04. Servo high precision filling system
-- Filling, freezing, sealing and other
production processes are fully automatic.
-- Filling piston by servo motor with stroke
rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust!
05. exclusive circulation of water cooling system
-- latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the
medicine is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.-- The temperature is adjustable.
medicine is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.-- The temperature is adjustable.

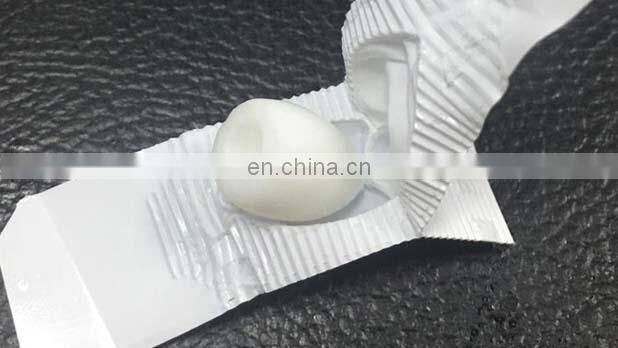

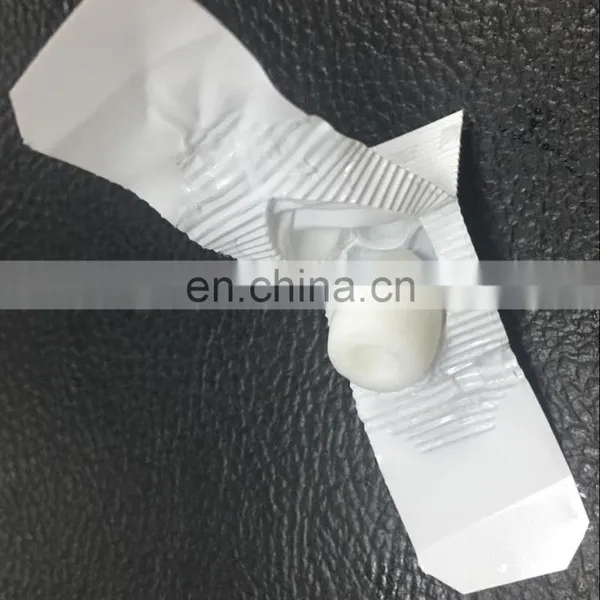

06. Finished product
The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%.
If you want to know more, please send us an inquiry
Product Details
More Products
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
- LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: How many different types of suppository machine you have? We are the starter for this product, what is your suggestion?
A: We have Four different type machine according to different production capacity requirement, They are SupLab-1, SupLab-2, SupLab-7 and SupLab-15. For the freshman in suppository field, we will suggest client to use our smallest model first, it is for both R&D and Production purpose. It comes with Forming, Filling, Colling, Sealing and Cutting. It is an Ideal starter machine.
Q: We have limit length in our workshop, but we need biggest production capacity machine, what is your suggestion?
A: We can make the machine as U shape which will save many space on length.
Q: Compare to the other manufacturer, what is your product advantage?
A: We manufacture the main parts like filling pump, filling cylinder and piston cylinder all by ourselves that we can achieve the best accuracy on the machine. We are the first manufacturer who does servo transaction on suppository machine, so we get matured technology in this field.
Q: Does you machine comes with Heating hopper and Stir Function?
A: Yes, this is our standard structure for the machine.
Q: We have limit length in our workshop, but we need biggest production capacity machine, what is your suggestion?
A: We can make the machine as U shape which will save many space on length.
Q: Compare to the other manufacturer, what is your product advantage?
A: We manufacture the main parts like filling pump, filling cylinder and piston cylinder all by ourselves that we can achieve the best accuracy on the machine. We are the first manufacturer who does servo transaction on suppository machine, so we get matured technology in this field.
Q: Does you machine comes with Heating hopper and Stir Function?
A: Yes, this is our standard structure for the machine.
