Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > DXD-80 Sachet Coffee Packing Machine Back Side Sealing
DXD-80 Sachet Coffee Packing Machine Back Side Sealing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DXD-350 Automatic Vertical Sachet Coffee Powder Packing MachineNegotiableMOQ: 1 -
NJP-Series Fully Automatic Capsule Filling Machines With High-EfficientNegotiableMOQ: 1
-
LTPY-160 Alu-PVC Blister De-Foiling MachineNegotiableMOQ: 1
-
HZ-320 Plat-plate Soft Plastic Blister Packing MachineNegotiableMOQ: 1
-
Laboratory Soft Gel Capsule, Soft Gelatin Capsule, Softgel Encapsulation MachineNegotiableMOQ: 1
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information, please click "Contact Supplier" to send mail to us.
information, please click "Contact Supplier" to send mail to us.
2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
This machine is suitable for packing any kinds of powder. Most commonly used in the pharmacy, food, dairy, and agriculture industries.
Feature：
1. Back sealing, three-side sealing, and four-side sealing packing method
2. The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
3. Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
4. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
5. The body and the parts touching the material are made of stainless steel.
Technical Parameters
Items / Model | DXD-350K | DXD-500K | DXD-900K |
Pouch length | 50-250mm(L) （adjustable） | 50~160mm | 50~120mm( Pouch length can change) |
Pouch width | 50-85mm(W) | 50~105mm | 50~105mm |
Packing speed | 30-50times/min depend on pouch size and material | 20~50times/nim（depend on pouch size and material） | 80times/nim（depend on pouch size & material） |
Measuring range | 1-50ml | 1~80ml | 1~80ml |
Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE | PET/AL/PE PET/PE NY/AL/PE NY/PE | PET/AL/PE PET/PE NY/AL/PE NY/PE |
Max width of film roll | 350mm | 500mm | 900mm |
Max film roll diameter | 300mm | 420mm | Φ300mm |
Film roll core diameter | 75mm | 75mm | Φ75mm |
Power voltage | 220V/ 50HZ(do as customer’s request) | 380V50Hz 3P 4W | 380V 50Hz （do as customer's request) |
Power | 5.5kw | 12 Kw | 12 Kw |
Gross Weight | 650kg | 1200kg | 1200kg |
Package size | (L)1400mm×(W)1000mm×(H)1700mm | 1680x1280x2050mm | 1500x1540x2200mm(L x W x H) |

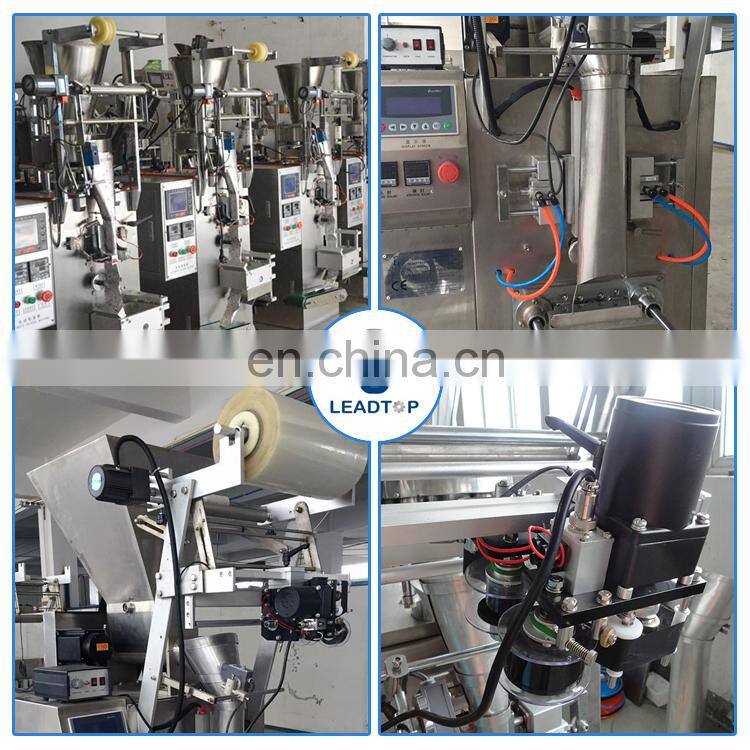

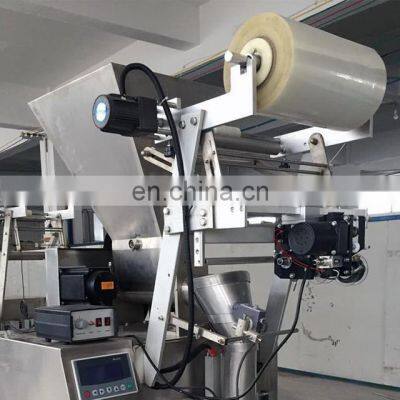

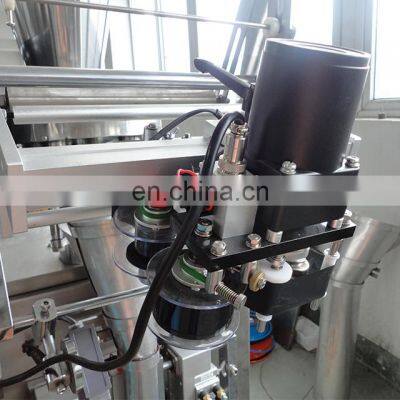

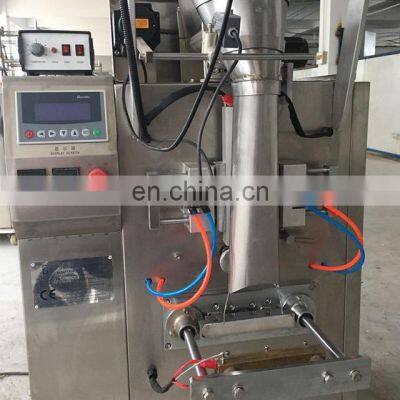

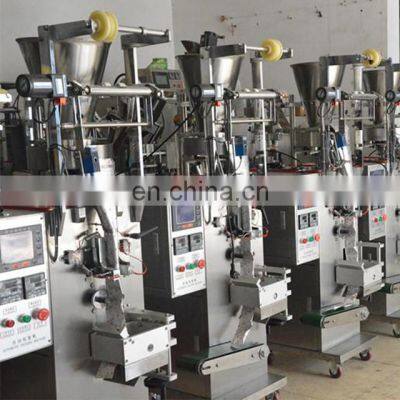

Product Details
Final Product
Related Products
Company Profile
Our Company
Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: Does your machine can used for Three side sealing, Four side sealing and back side sealing?
A: Yes, the machine can used for all above sealing style, but before you order the machine, you have to choose one option only.Because one machine can only use for one type sealing.
Q: Can the same machine do both Powder and Liquid Filling?
A: By changing feeding device, our machine can achieve different product filling and packing.
Q: My material is very thick, almost like thick honey, What filling pump you are going to use for our product?
A: For Sticky Material we normally adopts Rotor Pump or Servo Control Stainless Steel pump, it is depend on your filling volume and production capacity.
Q: We have Vertical Forming and Filling Machine before from another Chinese supplier, but the machine always run out of print registration. How you solve this problem on your machine?
A: We do three main improvement on our machine to other Chinese supplier. First we use Imported Rubber roller for holding material. Second we use Delta Servo Motor for material pulling. Thirdly we adopts Germany SICK Color Point Sensor.
Q: As we are producing paste material, while filling we must need to heat the paste, what is the solution?
A: Our factory is located in Ruian city Zhejiang Province.
Q: Can the same machine do both Powder and Liquid Filling?
A: By changing feeding device, our machine can achieve different product filling and packing.
Q: My material is very thick, almost like thick honey, What filling pump you are going to use for our product?
A: For Sticky Material we normally adopts Rotor Pump or Servo Control Stainless Steel pump, it is depend on your filling volume and production capacity.
Q: We have Vertical Forming and Filling Machine before from another Chinese supplier, but the machine always run out of print registration. How you solve this problem on your machine?
A: We do three main improvement on our machine to other Chinese supplier. First we use Imported Rubber roller for holding material. Second we use Delta Servo Motor for material pulling. Thirdly we adopts Germany SICK Color Point Sensor.
Q: As we are producing paste material, while filling we must need to heat the paste, what is the solution?
A: Our factory is located in Ruian city Zhejiang Province.
Just let us know your schedule in advance and we will arrange everything for you!
