Automatic food processing conveyor weighing scale check weigher machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Automatic Cheap Food Processing Belt Conveyor Food Industry Check Weigher Machine
- high speed pharmaceutical checkweigher Food cosmetics packaging check weigher machine
- LTDG Series CE Certified High Quality Fruit Food Vacuum Freeze Dryer
- Stainless Steel Sanitary 3A Magnetic Mixer Agitator Bottom Magnet Stirrer
- Chemical Industrial Shampoo High Speed Tank Type Stirrer Agitators and Mixers
- Electric Mixer Paddle For Mixing Detergent Agitator Tank Or Liquid Soap Mixer
Product Description
Attention:
---1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information, please click "Contact Supplier" to send mail to us.
information, please click "Contact Supplier" to send mail to us.
---2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
It Is Used For Automatic Weight Detection On Various Automated Assembly Lines And Logistics Conveying Systems, And Can Also Be Used For The Detection Of Multiple And Missing Parts After Product Packaging.
It Is Widely Used In Online Testing Of Pharmaceutical, Food, Cosmetics, Toys, Hardware, Chemical And Other Industries.
In Addition, It Can Directly Replace Manual Weighing, So As To Improve Production Efficiency And The Consistency And Reliability Of Weighing.
Technical Parameters
Model | LTCZ-150 | LTCZ-220 | LTCZ-280 | ||
Sorting Range | 2-300g | 2-300g | 2-300g | ||
Sorting Accuracy (depending on the product) | ±0.2 g | ±0.3 g | ±0.5 g | ||
Minimum Scale | 0.1 g | ||||
Sorting Speed | Up to 200 Bags/min | ||||
Removal Method | Air blowing rejection (can also be customized according to customers) | ||||
Belt Height Above Ground | 800±100mm (can be customized according to customer requirements) | ||||
Machine Structure | Stainless steel (SUS304) | ||||
Power Supply | AC110V/220V 50-60HZ | ||||
Power | About 100W | ||||
Weigh The Table Size | L 200mm * W 150mm | L 250mm * W 220mm | L 250mm * W 280mm | ||
Weight | About 60KG | About 70KG | About 80KG | ||
Optional Function | Three-color alarm light, RS485 output port |
Remarks
The properties and use environments of the tested products are different, and the detection speed and accuracy are also different, and the actual test is the standard.
Equipment introduction
Electric Control Cabinet

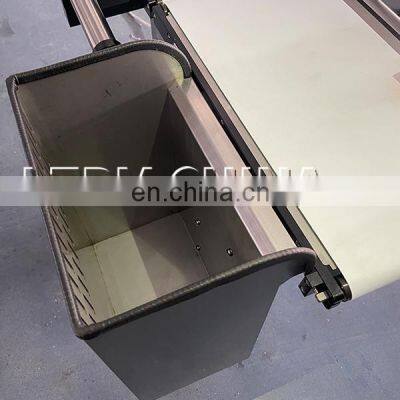

Tick Bucket

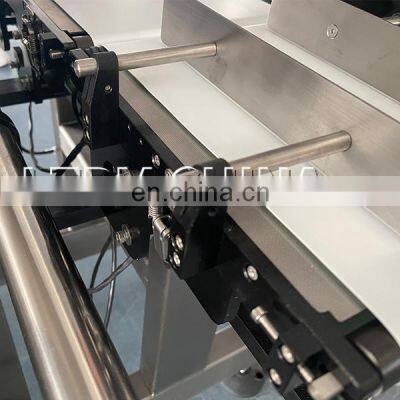

Adjust The Baffle

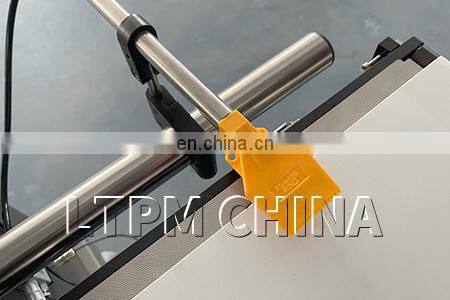

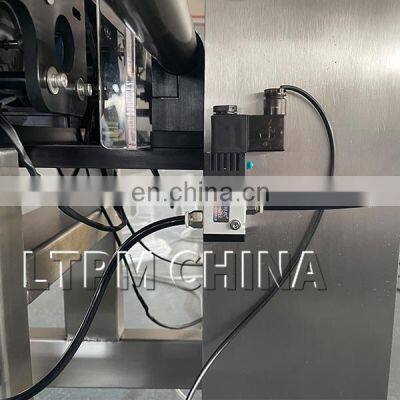

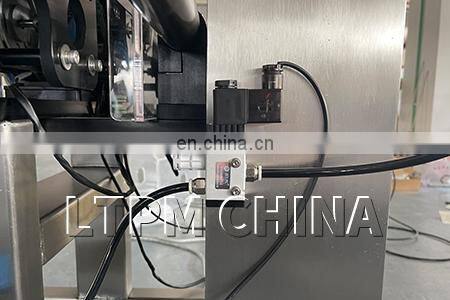

Air Jet Switch
Incoming Transportation

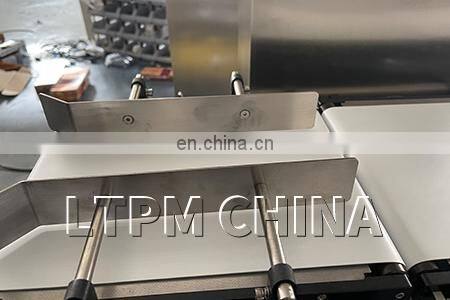

Material feeding device, the baffle above can adjust the width to fit the material size

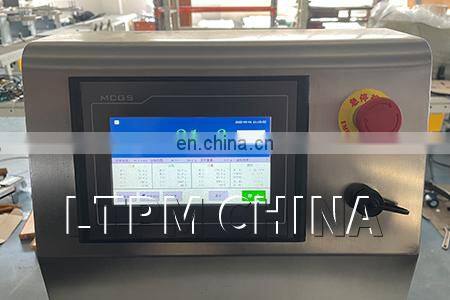

Touch Screen
It can control the weighing weight, adjust the speed of transportation, and set whether the quality is too heavy or insufficient to be rejected.

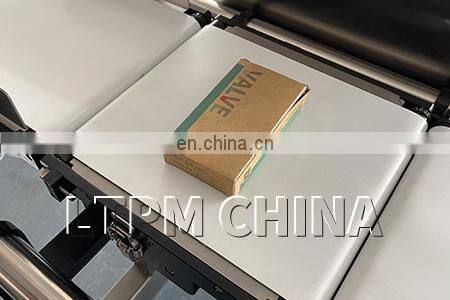

Weighing Transport
The core part of the machine, when the material is transported to this position, it will be weighed to determine whether the weight of the material meets the requirements
Reject Device
Basically, it is mainly air injection. If you encounter heavy materials, you can choose the cylinder to push the waste.

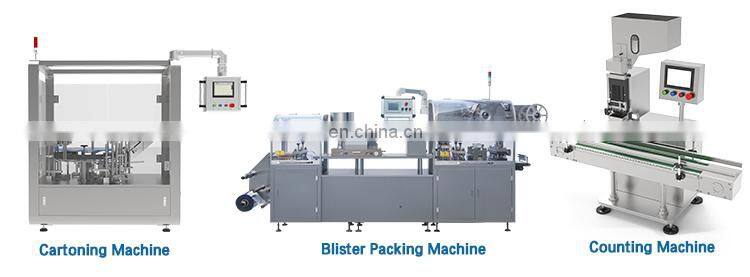

Weighing machines are widely used and can be connected to many machines, such as cartoning machines, blister packaging machines, vertical packaging machines, pellet counting machines, etc.
