Details Images
Products Description

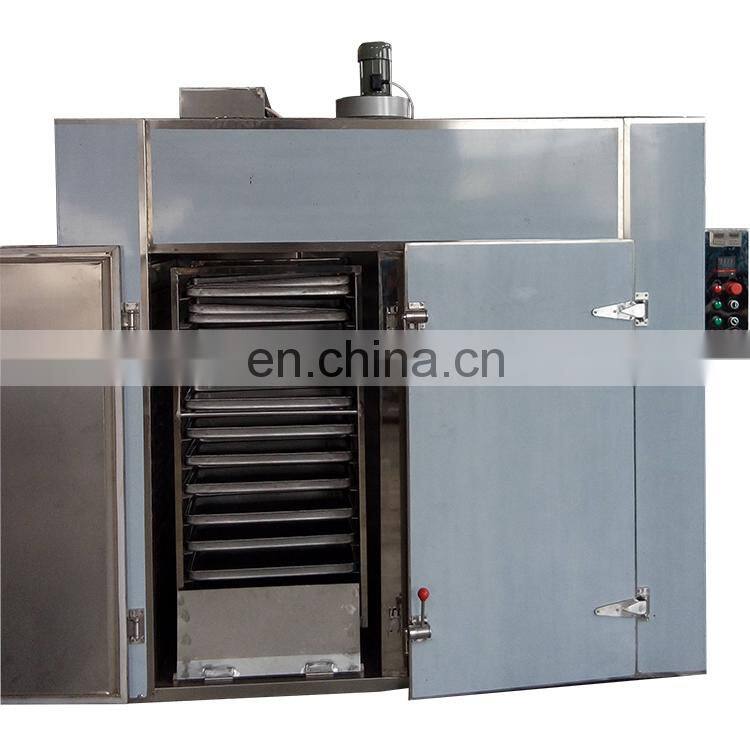

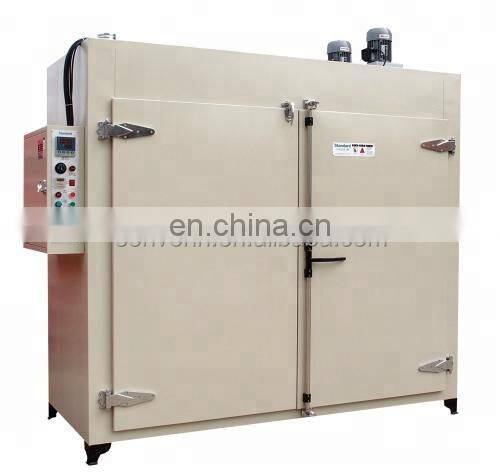

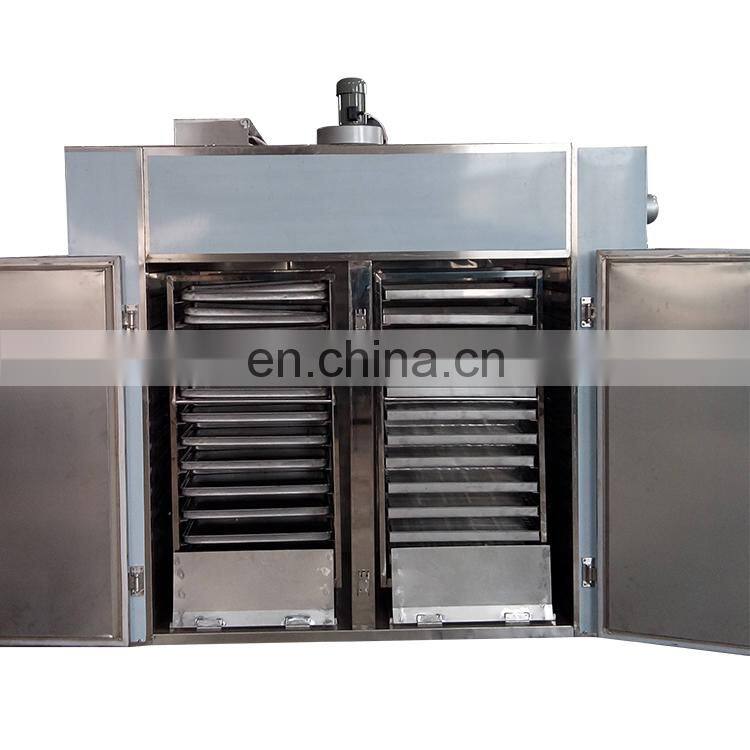

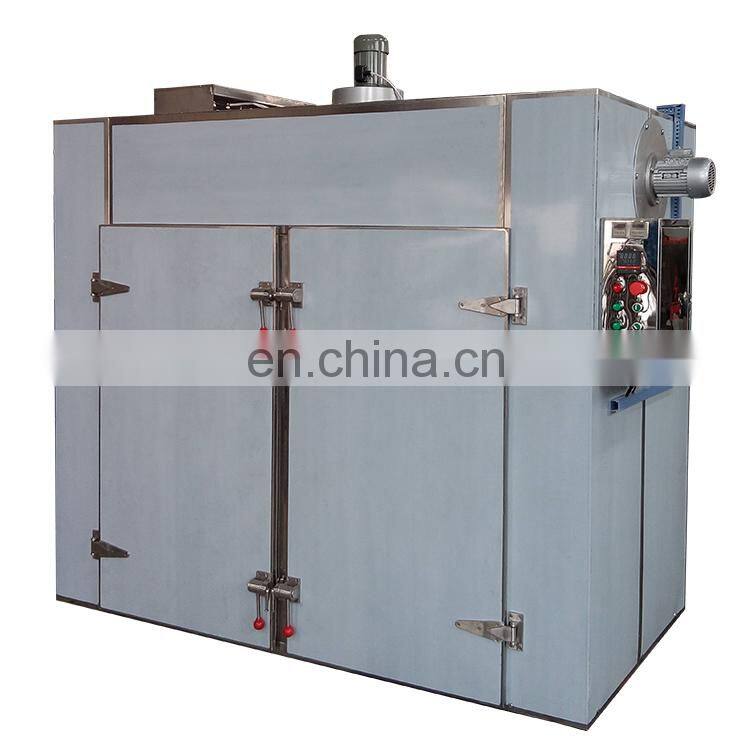

CT-C Hot Air Circulating Drying Oven
CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system.The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach 50. The successful design of Ct-C hot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad. In order to save a large quantity of the energy in out country, in order to enhance the economic results of the enterprises, in 1990, the medicine management bureau of the State issued the industry standard and the uniform type is RXH.
Features
CT-C Hot Air Circulating Drying Oven

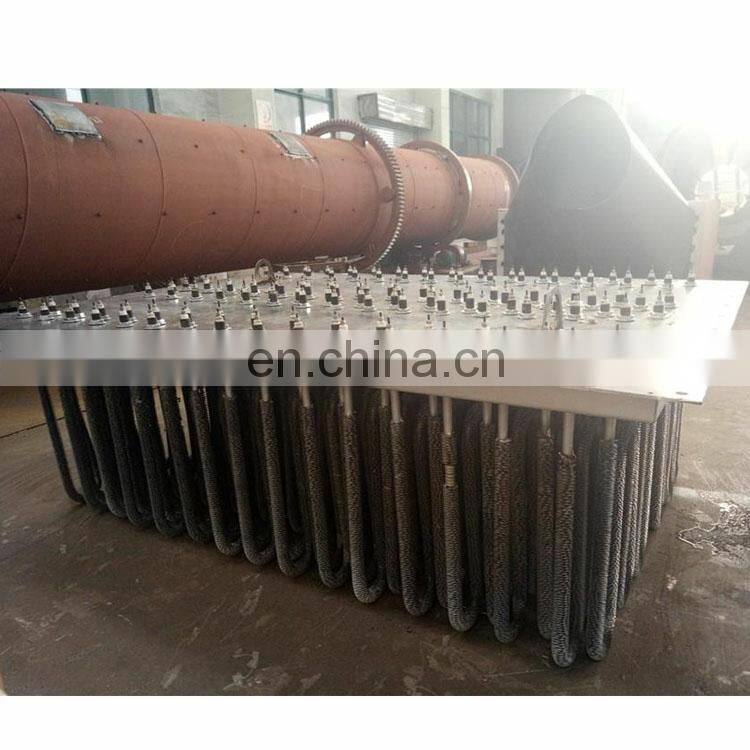

Most hot air is circulated in the oven. The Heat efficiency is high and the energy s saved By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
Application

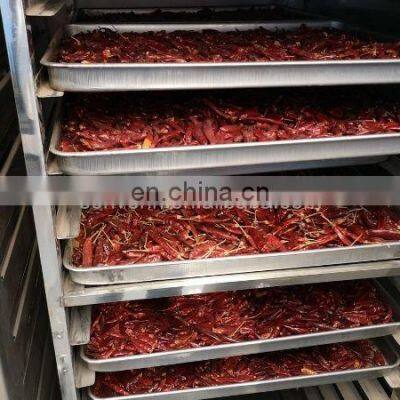

This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Technical parameters

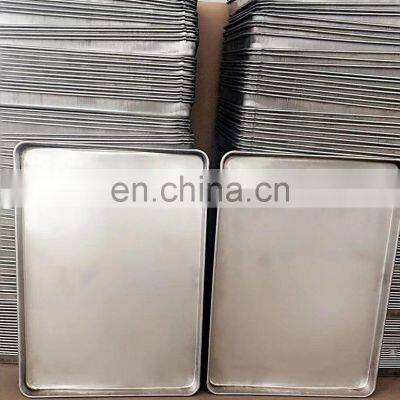

Specification | Power（KW/h） | Baking trays | Overall dimensions （LxWxH）mm | Baking cart to be used（set） |
CT-C-O | 0.45 | 24 | 1400x1200x2000 | 1 |
CT-C-I | 0.45 | 48 | 2300x1200x2000 | 2 |
CT-C-II | 0.9 | 96 | 2300x2200x2000 | 4 |
CT-C-III | 1.35 | 144 | 2300x3220x2000 | 6 |
CT-C-IV | 1.8 | 192 | 4450x2200x2000 | 8 |
