China Manufactory vacuum disc dryer kitchen waste vacuum dryer/PLG Continuous Plate Dryer
Description
PLG series continuous plate dryer is a kind of high efficiency conducting and continuous drying equipment. Its unique structure and operating principle provide advantages of high heat efficiency, low energy consumption, less occupying area, simple configuration, easy operation and control as well as good operating environment etc. It is widely used in drying process in the fields of chemical, pharmaceuticals, agricultural chemicals, foodstuff, fodder, process of agricultural and by-products etc., and is well received by various industries.
Principle
Wet materials are fed continuously to the top drying layer in the dryer. They will be turned and stirred continuously by harrows when the harrow's arm rotates, the material flows through the surface of the drying plate along the exponential helical line. On the small drying plate the material will be moved to its exterior edge and drop down to the exterior edge of the large drying plate underneath, and will then be moved inward and drop down from its central hole to the small drying plate on the next layer. Both small and large drying plates are arranged alternately so as materials can go through the whole dryer continuously. The heating media, which could be saturated steam, hot water or thermal oil will be led into hollow drying plates from one end to other end of the dryer. The dried product will drop from the last layer of the drying plate to the bottom layer of the smell body, and will be moved by harrows to the discharge port. The moisture exhausts from materials and will be removed from the moist discharge port on the top cover, or sucked out by the vacuum pump on the top cover for vacuum-type plate dryer. The dried product discharged from the bottom layer can be packed directly.
Feature
(1) Easy control, wide application
(2) Easy and simple operation
(3) Low energy consumption
(4)Good operation environment, solvent can be recovered and powder discharge meets the requirements of exhaust.
(5) Easy installation and small occupying area.
Technical feature

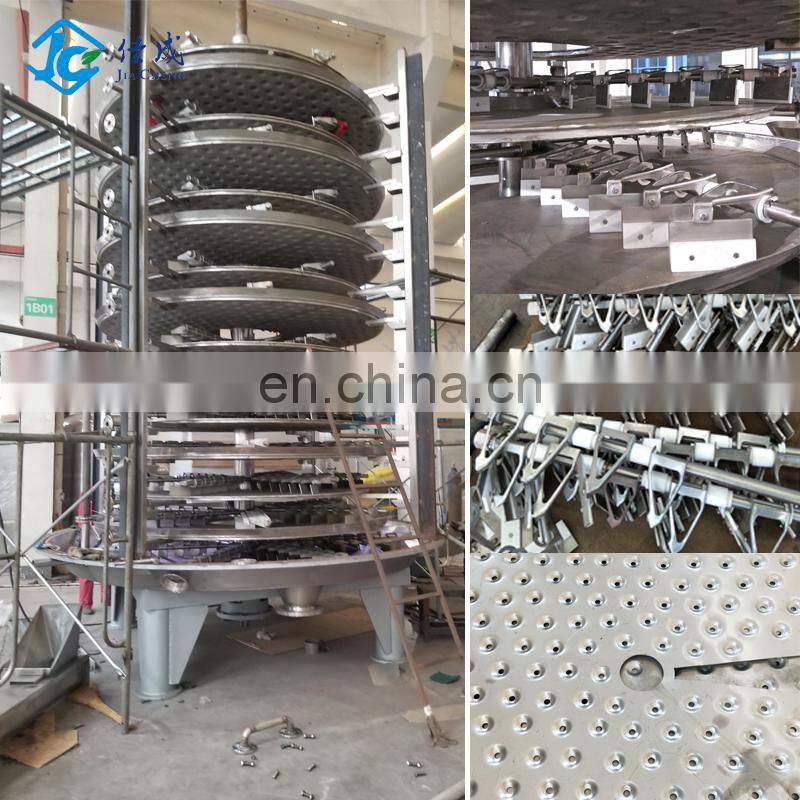

1. Drying plate
(1). Designing pressure: general is 0.4MPa, Max. can reach 1.6 Mpa.
(2).Work pressure: general is less then 0.4Mpa, and Max. can reach 1.6 Mpa.
(3).Heating medium: steam, hot water, oil.
2. Material transmission system
(1).headstock revoluton:1~10 rpm, electromagnetism of transducer timing.
(2).harrow arm: There are 2 to 8 pieces arm that be fixed on the headstock on the every layers.

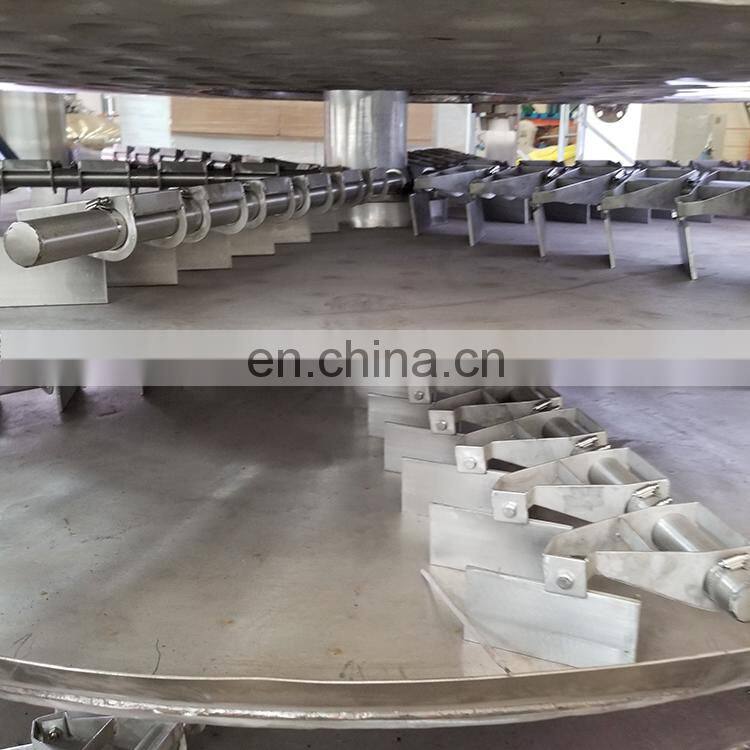

(3). Harrow's blade: Surrounding the harrow's blade, float together with the surface of the plate to keep contact. There're various of types.
(4). Roller: for the products easily agglomerate, or with the requirements of grinding, the heat transfer and drying process might be reinforced by placing roller(s) at the appropriate place(s).

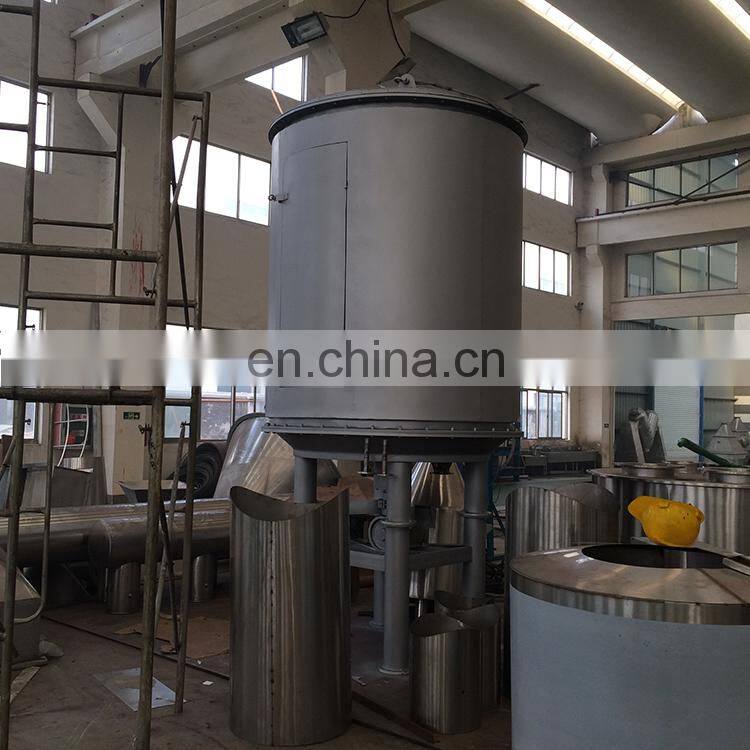

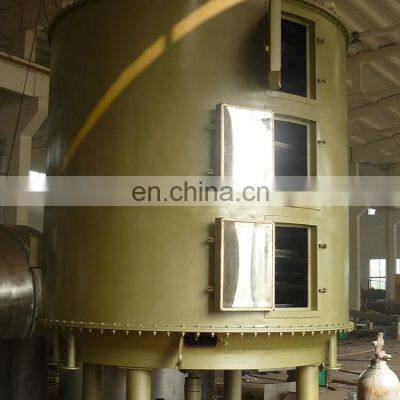

3. Shell
There're three types for option: normal pressure, sealed and vacuum
(1). Normal pressure: -----
(2). Sealed: Cylindrical shell, could bear the interior pressure of 5KPa, the main ducts of the inlet and outlet of heating media might be inside of the shell or outside.
( 3). Vacuum: Cylindrical shell, could bear the exterior pressure of 0.1MPa. The main ducts of inlet and outlet is inside of the shell.
4. Air heater:
Normal for the application of big evaporation capacity to increase drying efficiency.
Technical parameters
spec | diameter mm | high mm | area of dry m2 | power Kw | spec | diameter mm | high mm | area of dry m2 | power Kw |
1200/4 | 1850 | 2608 | 3.3 | 1.1 | 2200/18 | 2900 | 5782 | 55.4 | 5.5 |
1200/6 | 3028 | 4.9 | 2200/20 | 6202 | 61.6 | ||||
1200/8 | 3448 | 6.6 | 1.5 | 2200/22 | 6622 | 67.7 | 7.5 | ||
1200/10 | 3868 | 8.2 | 2200/24 | 7042 | 73.9 | ||||
1200/12 | 4288 | 9.9 | 2200/26 | 7462 | 80.0 | ||||
1500/6 | 2100 | 3022 | 8.0 | 2.2 | 3000/8 | 3800 | 4050 | 48 | 11 |
1500/8 | 3442 | 10.7 | 3000/10 | 4650 | 60 | ||||
1500/10 | 3862 | 13.4 | 3000/12 | 5250 | 72 | ||||
1500/12 | 4282 | 16.1 | 3.0 | 3000/14 | 5850 | 84 | |||
1500/14 | 4702 | 18.8 | 3000/16 | 6450 | 96 | ||||
1500/16 | 5122 | 21.5 | 3000/18 | 7050 | 108 | 13 | |||
2200/6 | 2900 | 3262 | 18.5 | 3.0 | 3000/20 | 7650 | 120 | ||
2200/8 | 3682 | 24.6 | 3000/22 | 8250 | 132 | ||||
2200/10 | 4102 | 30.8 | 3000/24 | 8850 | 144 | ||||
2200/12 | 4522 | 36.9 | 4.0 | 3000/26 | 9450 | 156 | 15
| ||
2200/14 | 4942 | 43.1 | 3000/28 | 10050 | 168 | ||||
2200/16 | 5362 | 49.3 | 5.5 | 3000/30 | 10650 | 180 |
Product Detail
| Product Keywords | vacuum disc dryer,kitchen waste dryer,kitchen waste vacuum dryer Fibrin Plate Dryer/Plate Dryer for zinc sulfate water solution |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
