500MPa Thread Bar for Reinforcing Concrete
US$ 5 - 7
MOQ: 1 Short Ton
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
01
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
15 days
Related Products
-
Helicoids Bars With Grado 75 for Mining TunnelUS$ 5 - 7MOQ: 1 Short Ton -
Rock Bolt Anchors for MiningUS$ 5 - 7MOQ: 1 Short Ton
-
Anchor Bolt and Full Threaded BarUS$ 5 - 7MOQ: 1 Short Ton
-
Mining Rock Bolt M20 25 32 for Ground AnchorUS$ 5 - 7MOQ: 1 Short Ton
-
M20/25mm Carbon Steel Spherical Nut for Mining TunnelingUS$ 5 - 7MOQ: 1 Short Ton
Brand Name
OEM
Place of Origin
China
Model Number
01
Material
Steel
Diameter
15mm-75mm
Length
3m,6m,9m or as your request
Type
Concrete Anchor
Standard
GB
Capacity
1500t/month
500N/mm2 thread bar for reinforcing Concrete
Product Description
Yidao Steel High Yield Threadbar is a high tensile alloy steel bar with a coarse left-hand thread( Dia20mm) or right-hand thread(Dia 25/32/36/40mm) over its full length.

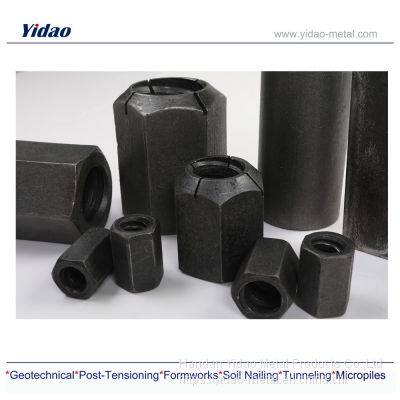

Threadbar System consists of high yield screwable coupling and anchoring accessories, which enable easy connections to and anchorages of
Threadbar System consists of high yield screwable coupling and anchoring accessories, which enable easy connections to and anchorages of
steel.
High strength thread bar
Steel Grade | N/mm² | 500/630 | ||||
Nominal Bar Dia D1 | mm² | 20 | 25 | 32 | 36 | 40 |
Nominal Section Area | mm² | 314 | 491 | 804 | 1018 | 1257 |
Nominal Weight | kg/m | 2.47 | 4.1 | 6.65 | 8.41 | 10.34 |
Yield Load | KN | 157 | 245 | 402 | 509 | 628 |
Ultimate Load | KN | 198 | 309 | 507 | 641 | 792 |
Key features of the system are:
1Fully threaded bar - can be cut and coupled at any point.
2 Robust threadform - ideal for construction site use.
3 Coarse pitch threadform with two flats - ensures self-cleaning of thread.
4 Fully galvanized systems - galvanized threadbars and accessories also available from stock.
All accessories avaible.
Other grade PSB830/1030, 930/1080, 1080/1230MPA available
Application
1.Threadbar for Connecting Reinforcement
2.Threadbar for Prefabricated Connecting Reinforcement
3.Threadbar for Typical Applications for Reinforcing Concrete
4. Threadbar for Mounting Connecting Reinforcement
5.other application-geotechnical, soil nailling ,rock bolts ,ground anchors ,form work ,post-tension system ,bridge ,micro piles ,mining and tunneling ect.
