Product Description

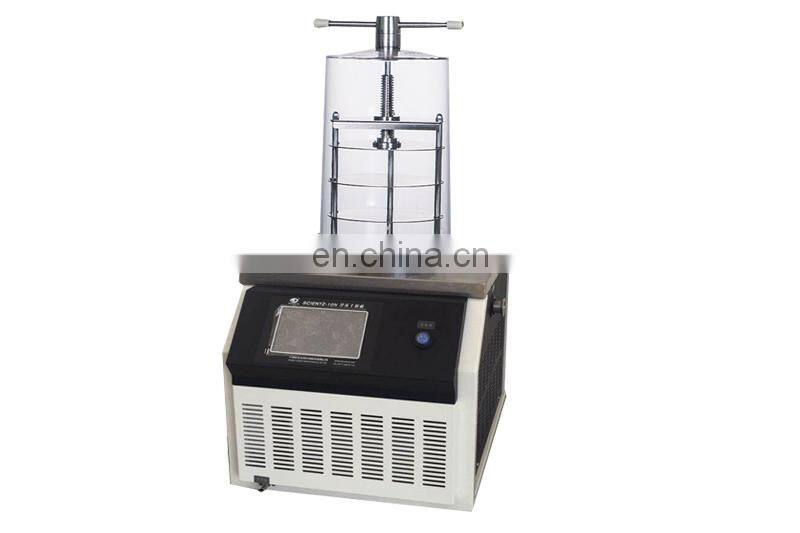

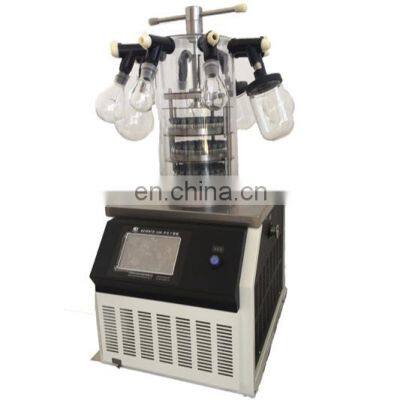

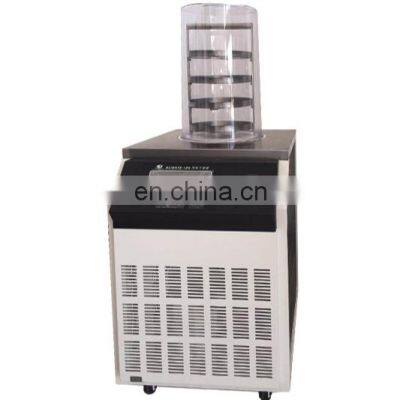

The lyophilizer sublimates the material directly from solid to gaseous state at the "triple point", which is then vacuum-pumped and condensed in the condenser. The sample is dehydrated and dried, so that the bioactive material can be preserved for a long time at room temperature.Freeze-drying is mainly used for drying heat-sensitive and heat-changeable materials, such as serum,vaccine, microorganism, tissue and other biological samples, which can keep the original shape and structure of samples and facilitate storage.It can also be used for the process exploration of lyophilized medical products or other lyophilized products before mass production.
Feature
1. The machine is cooled by secop (formerly Danfoss) compressor, an international brand, with rapid refrigeration and low cold trap temperature.
2. It adopts the 7-inch true color touch LCD control system, which is easy to operate and has powerful functions.
3. Industrial embedded operating system, ARM9 core control circuit design, 32M memory 128M FLASH, fast operation response and large amount of data storage.
4. The control system automatically saves the lyophilization data and can view it in the form of real-time curve and historical curve, making the whole lyophilization process clear and clear.
5, the drying room adopts a colorless transparent injection molding polycarbon drying room, corrosion resistance, non-breakable,non-bonding, high transparency, strong sealing, the sample is clear and intuitive, you can observe the whole process of freeze-drying.
6. International standard KF quick connector is adopted for connection between vacuum pump and main engine, which is simple and reliable.
7. The machine can store the lyophilized curves for many times, and extract the data to the computer with a USB flash disk. The computer software can be used to browse the printing and various options in the computer.
8, equipped with a charging valve, can be filled with dry inert gas.
9. The cold trap temperature can be set. When the temperature is lower than the set value, the vacuum pump can be started to protect its service life.
2. It adopts the 7-inch true color touch LCD control system, which is easy to operate and has powerful functions.
3. Industrial embedded operating system, ARM9 core control circuit design, 32M memory 128M FLASH, fast operation response and large amount of data storage.
4. The control system automatically saves the lyophilization data and can view it in the form of real-time curve and historical curve, making the whole lyophilization process clear and clear.
5, the drying room adopts a colorless transparent injection molding polycarbon drying room, corrosion resistance, non-breakable,non-bonding, high transparency, strong sealing, the sample is clear and intuitive, you can observe the whole process of freeze-drying.
6. International standard KF quick connector is adopted for connection between vacuum pump and main engine, which is simple and reliable.
7. The machine can store the lyophilized curves for many times, and extract the data to the computer with a USB flash disk. The computer software can be used to browse the printing and various options in the computer.
8, equipped with a charging valve, can be filled with dry inert gas.
9. The cold trap temperature can be set. When the temperature is lower than the set value, the vacuum pump can be started to protect its service life.
Specification
Model | Scientz-10N | ||
Type | Top press | ||
Dryer area（㎡） | 0.08 | ||
Ability to capture water（㎏/batch） | 3 | ||
Schering bottle quantity | φ12mm | 560 | |
φ16mm | 285 | ||
φ22mm | 165 | ||
Plate load capacity （L） | 1 | ||
Plate size（mm） | φ180 | ||
Plate distance （mm） | 70 | ||
Plate size（pc） | 3 | ||
Cold chmaber size（mm） | φ250×150 | ||
Cold trap the lowest temperature（℃） | ≤-56（no load） | ||
Ultimate vacuum(Pa) | ≤5（no load） | ||
Power Kw（220V50Hz） | 0.95 | ||
Amibient temperature℃） | ≤25 | ||
Overall dimension（mm） | 590*460*450+400 | ||
