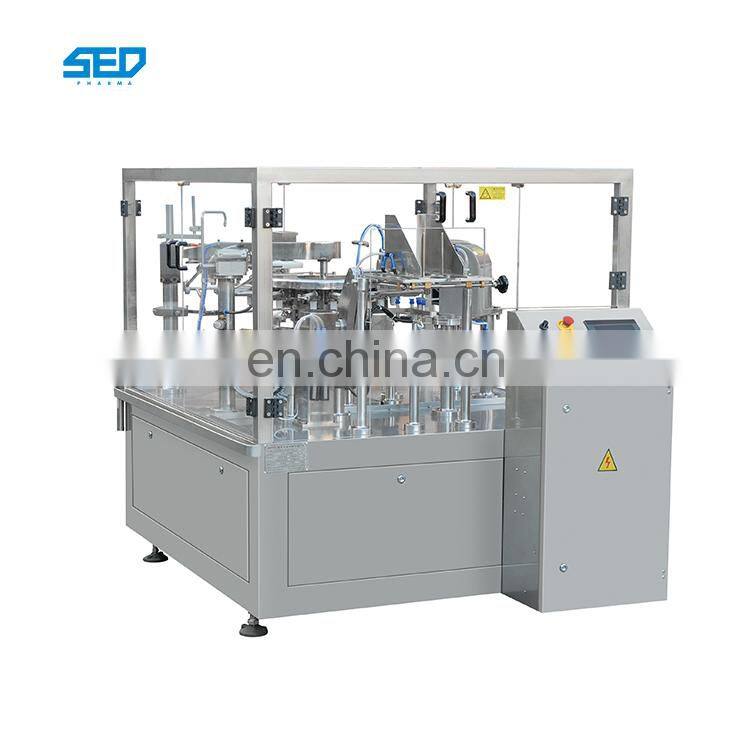

Factory Directly Sale 35-45 Bags / Min Chilli Powder Plastic Bags Packing Machine

Factory Directly Sale 35-45 Bags / Min Chilli Powder Plastic Bags Packing Machine thumbnail-1
Factory Directly Sale 35-45 Bags / Min Chilli Powder Plastic Bags Packing Machine thumbnail-2
Factory Directly Sale 35-45 Bags / Min Chilli Powder Plastic Bags Packing Machine thumbnail-3
Factory Directly Sale 35-45 Bags / Min Chilli Powder Plastic Bags Packing Machine photo-1
Factory Directly Sale 35-45 Bags / Min Chilli Powder Plastic Bags Packing Machine photo-2
Factory Directly Sale 35-45 Bags / Min Chilli Powder Plastic Bags Packing Machine photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Hangzhou SED Imp.And Exp.Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Recommend Products
Products Description
Model
SED-240YGD-J
Speed(bags/min)
35-45(Speed is determined by product characteristics and filling volume)
Filling range
100-500g
Power supply
380V 3Phase 50HZ 6KW
Bag type
Self-supporting bags, handbags, four-side sealing bags, three-side sealing bags, paper bags and other composite bags
Packing bag material
Heat-sealing films such as PA/PE, PET/PE, aluminum film, etc.
Packing bag specifications
Width: 80-240mm Length: 150-350mm
Weighing accuracy
≤±1%
Drive way
Frequency conversion speed motor drive
Control power
DC24V
Compressed air consumption
≥0.35m3/min (compressed air provided by the user)
Overall dimensions:(mm)
1645×1645×1640mm
Weight:(Kg)
1000KG
Feature
1.Wide range of packaging: suitable for liquids of various states and properties;
2.Applicable to different types of packaging bags;
3.Convenient operation: PLC control and man-machine interface operating system make the operation intuitive and convenient;
4.Convenient adjustment: Variety change can be completed within two minutes;
5.High degree of automation: unmanned in the whole process of weighing and packaging, automatic alarm when failure occurs;
6.Complete prevention system, which can intelligently detect whether the bag is opened and whether the bag is intact, and no material is added or heat sealed when the material is not suitable for addition, and the bag and materials are not wasted, which saves costs;
7.The packaging part of the machine adopts stainless steel materials to ensure the hygiene and safety of the materials and comply with GMP standards;
8.Use imported tolerance plastic bearings in some components, no need to add oil, reduce the pollution of materials;
9.Use oil-free vacuum pumps to avoid polluting the production environment;
10.Dust-proof and waterproof design can be washed with water, which reduces the difficulty of cleaning and increases the service life of the machine;
11. Use prefabricated packaging bags, with high sealing quality, and improve the grade of finished products;
12.The equipment is equipped with a transparent plexiglass protective door;
13.The empty bag automatic circulation function, the bag can not be opened, no material, no sealing, the packaging bag automatically circulates in a circle, 100% to prevent empty bags.
Components
Name
model
brand
PLC
DVP40EC00T3
Siemens
Frequency converter
VFD007EL43A
Siemens
Touch screen
MT6070IH
Siemens
Rotary vane vacuum pump
KRX5-P-V-03
Orion
Main motor
CH-32-750-25-S-G1-RD
Taibang
Heating tube

SED
Proximity switch
TL-Q5MC1-Z
OMRON
Pressure gauge
GP46-10-01L5
SMC
Electromagnetic valve
SY5120-5DD-01
SMC
Air cylinder
CG1BN20-20
SMC,AirTAC
segregator
DS100
TG
Product Packaging
