High Capacity Capsule Calcium Tablet Pharmaceutical Hot Sealing Blister Packing Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Hot Selling Automatic Capsule Liquid Blister Packing Machine
-
Automatic Thermoforming Vitamin Capsule Liquid Blister Packing Machine
-
Nice Pharmaceutical Tablet Capsule Jam PVC Blister Packing Machine
-
Low Noise Level Pill Tablet Capsule Blister Packing Machine
-
Vertical Food Candy Dog Granule Packing Machine Wide Range of Application
-
High Safety Level Good Performance Nice Price Shrink Packing Machine
Product Description
Recommend Products
Products Description
This blister packing machine is a newly packaging machine designed for machine in our
company; its function has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; the blister packing machine is ideal blister packaging equipment. The product passed the provincial science and technology appraisal.
company; its function has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; the blister packing machine is ideal blister packaging equipment. The product passed the provincial science and technology appraisal.

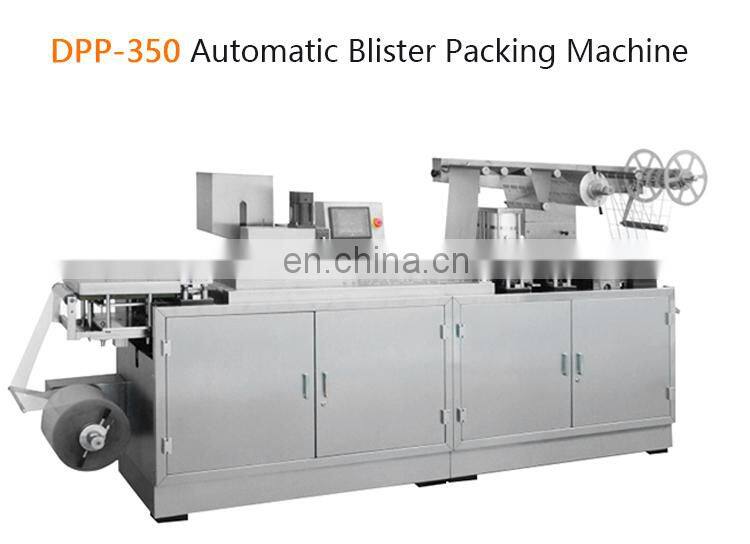

Product Name | DPP-350 Automatic Blister Packing Machine | ||||||
Cutting Frequency | 20-25 cuttings/min(base on 130mm*27.5mm blister ), 8-10 blisters/cutting | ||||||
Max. Forming Area and Depth | 350×130×15 | ||||||
Adjustable Scope of Travel | 30-140 mm | ||||||
Power | 380V 50Hz 9.5kw | ||||||
Air compression(self-prepared) | 0.6-0.8 Mpa≥0.6 m³/min | ||||||
Recycle water or circulating water consumption | 60-100L/h | ||||||
Packaging material (I.D.Φ75) | PVC(mm) | (0.15-0.6)×350×(Φ400) | |||||
PTP(mm) | (0.02-0.15)×350×(Φ400) | ||||||
Paper(mm) | (50-100)g/㎡×350×(Φ400) | ||||||
Overall Dimension (L*W*H)(including foundation) | 3650×850×1700 | ||||||
Weight | About 2000kg | ||||||
1. Pulling length can be adjusted. Mold is fixed by located groove so that it's easy to change mold. The machine heats the PVC through heated board and forms by compressed air frothing.
2. Speed is controlled by inverter. It Adopts the interface of human-machine and PLC controller. Adopt universal feeder for feeding.
3. The machine gets the function for Easy Cutting line embossing, batch number embossing and wasted packaging material rewinding.
4. Step motor is adopted on the machine for precise controlling on pulling length and saving packing material.
5. The heating molds will automatically separate when the machine stops, which contributes to protect the packing material from heated mould.
2. Speed is controlled by inverter. It Adopts the interface of human-machine and PLC controller. Adopt universal feeder for feeding.
3. The machine gets the function for Easy Cutting line embossing, batch number embossing and wasted packaging material rewinding.
4. Step motor is adopted on the machine for precise controlling on pulling length and saving packing material.
5. The heating molds will automatically separate when the machine stops, which contributes to protect the packing material from heated mould.

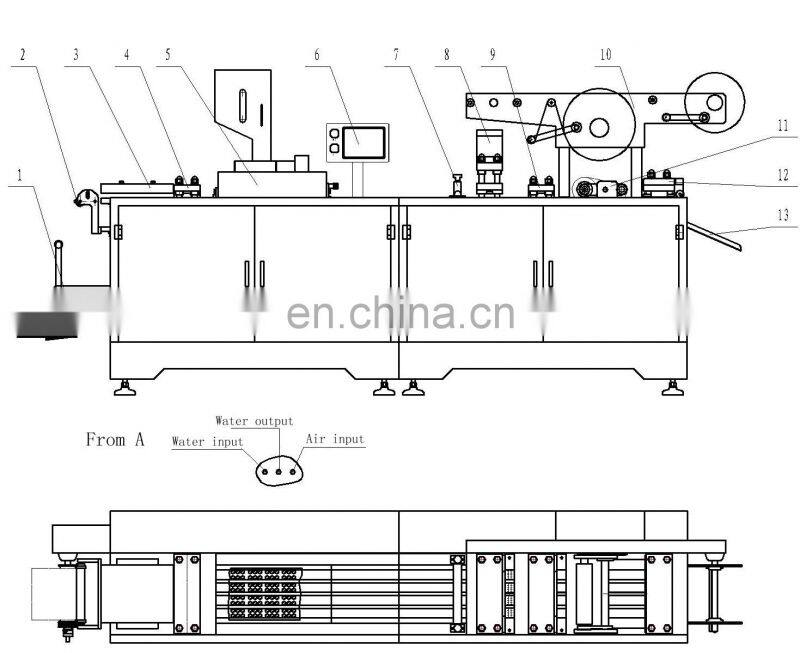

1: PVC feeder | 2: PVC transporting roller | ||||||
3: Heating box | 4: Forming mechanism | ||||||
5: Medicine feeder (The manual feeding without this station) | 6: Touch-screen | ||||||
7: PTP transporting roller | |||||||
8: Heat-sealing mechanism | 9: Trace-pressing mechanism | ||||||
10: PTP feeding mechanism & scrap-collector | 11: Pulling mechanism | ||||||
12: Blanking mechanism | 13: Finished product output | ||||||
