45-125 Bottles / Min Automatic Liquid Cream Ampoule Filling Machine

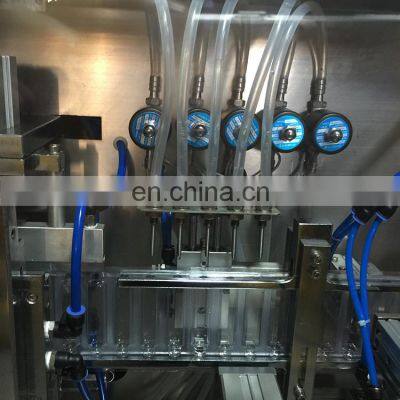

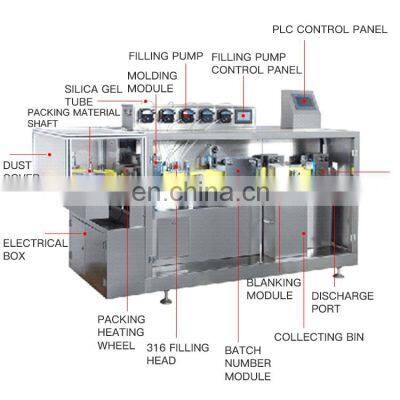

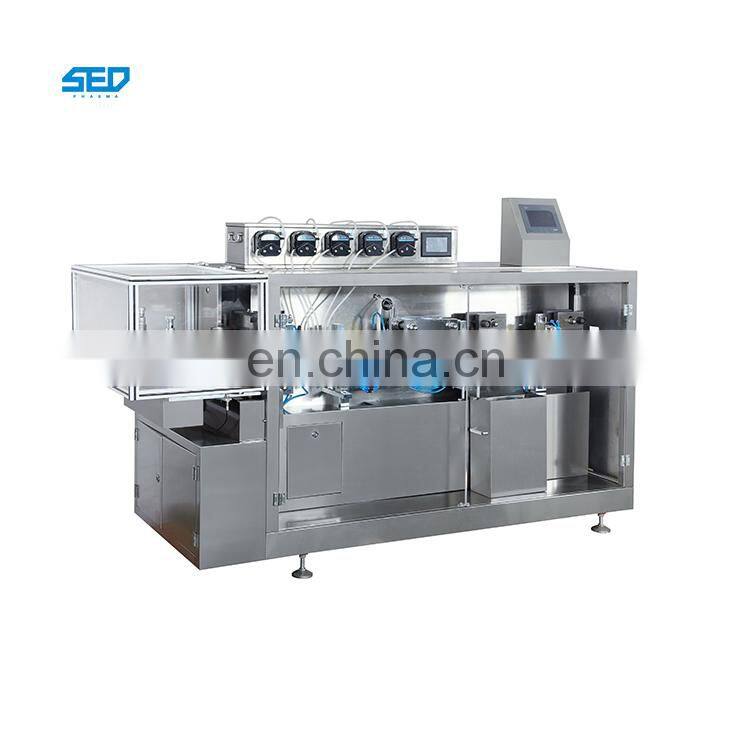

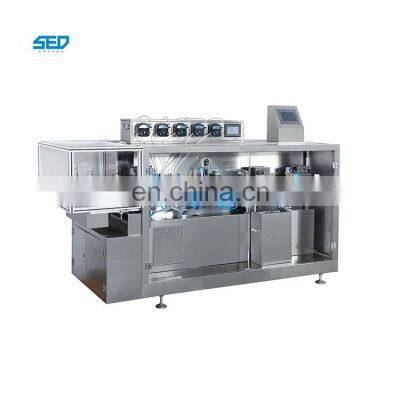

45-125 Bottles / Min Automatic Liquid Cream Ampoule Filling Machine photo-1
45-125 Bottles / Min Automatic Liquid Cream Ampoule Filling Machine photo-2
45-125 Bottles / Min Automatic Liquid Cream Ampoule Filling Machine photo-3
45-125 Bottles / Min Automatic Liquid Cream Ampoule Filling Machine photo-4
45-125 Bottles / Min Automatic Liquid Cream Ampoule Filling Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Recommend Products
Products Description
1. It adopts PLC control and stepless frequency conversion speed regulation.

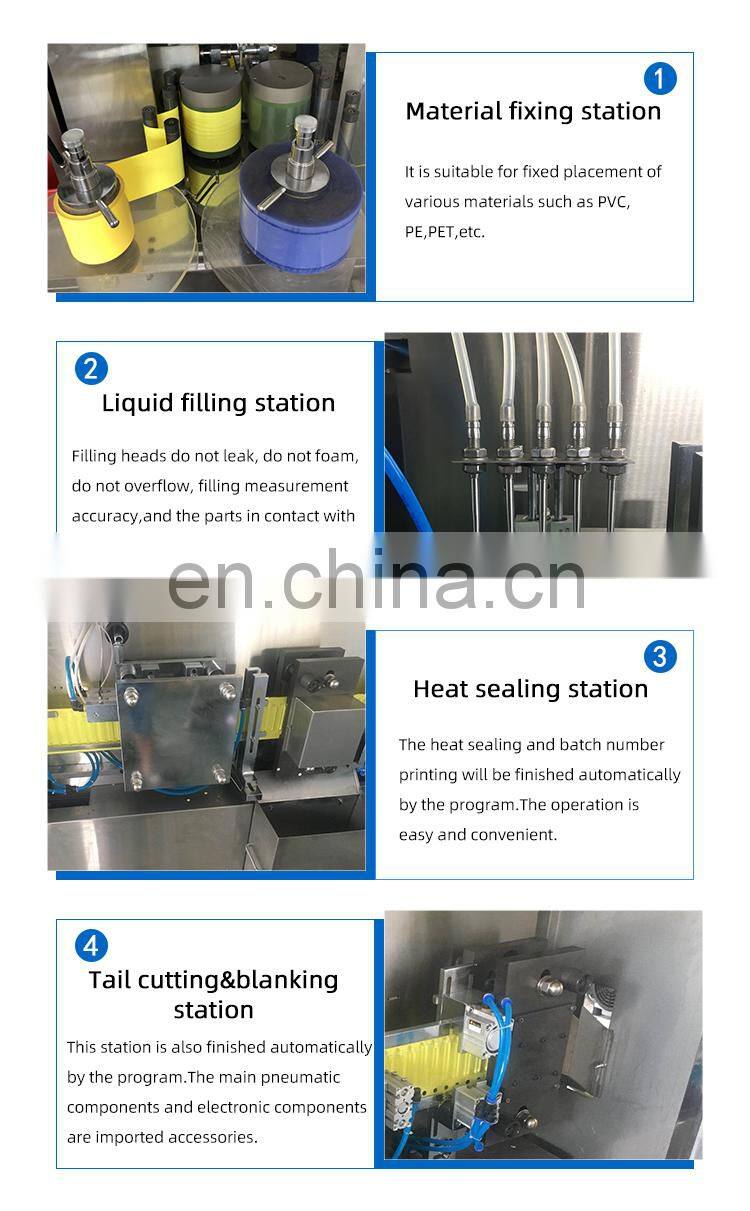

2. The working processes such as unwinding, forming, filling, batch number printing, indentation, punching and cutting are
completed automatically by the program.

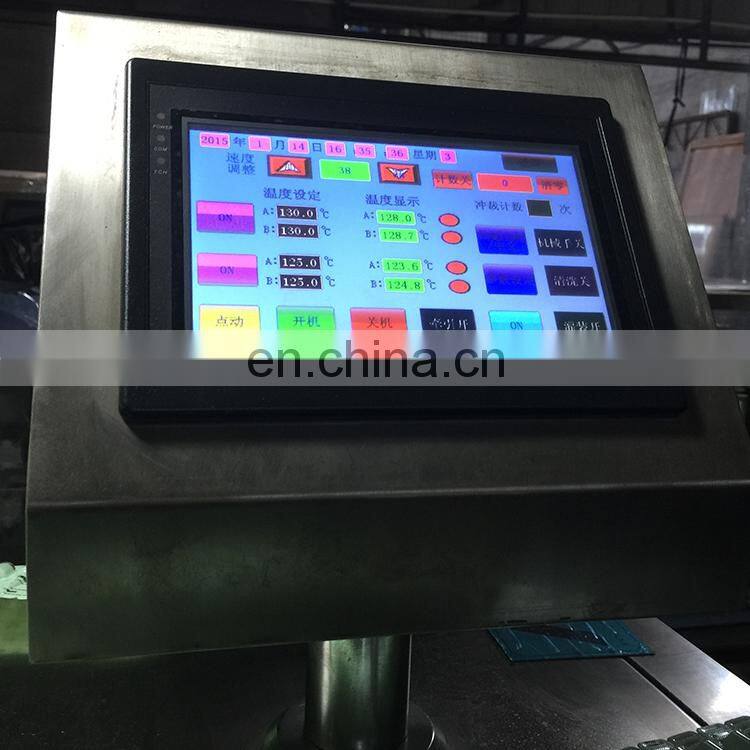

3. It adopts human-machine interface device, which has simple operation.
4. The filling has no dripping, bubbling, and overflowing.
5. The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.
6. The main penumatic and electrical components adopt imported brand.
7. It adopts electronic peristaltic pump or mechanical filling system, which have accurate metering with small error.
Maximum depth forming
12 mm
Capacity
45-125bottles / min
(15-25 cuttings/min, according to the ampoule size)
Filling quotas
Five filling head fill at the same time
Packaging materials
PVC/PE (0.2 0.4) x 120 mm
The filling volume
1-50 ml
Power supply total power
6 kw
Voltage
380V 50HZ Three phase
Weight
850 kg
Overall dimensions (L*W*H)
2300 * 850 * 1450(mm)
