Low Maintenance Cost Manual Plastic Tube Filling and Sealing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi Automatic Plastic Tube Filling and Sealing Machine For Small BusinessNegotiableMOQ: 1 -
Hot Selling Tooth Paste Cosmetics Plastic Tubes Filling MachineNegotiableMOQ: 1
-
Good Quality Semi Automatic Manual Plastic Tube Filling and Sealing MachineNegotiableMOQ: 1
-
80 Tubes / Minute Automatic Milk Tablet Effervescent Tablet Tube Filling MachineNegotiableMOQ: 1
-
Milk Effervescent Tablet Plastic Tube Filling And Sealing Machine for SaleNegotiableMOQ: 1
Recommend Products
Products Description

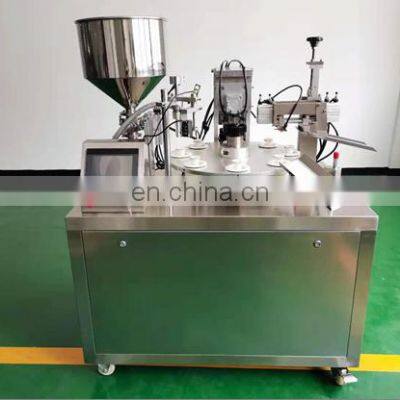

SED-30RG-A type composite hose potting and sealing machine is mainly used for the principle of primary transmission. The indexing mechanism is used to drive the turntable equipped with fixtures for intermittent movement to complete a series of functions such as automatic filling and internal and external heating, sealing, code pressing, edge trimming, and finished product withdrawal. The filling measurement is accurate, the heating time is stable and adjustable, and the sealing appearance is beautiful, neat, firm and hygienic. The cutting edge is smooth. The machine is set to 8 stations, except for manual tube loading, the others can be completed automatically. The whole machine runs smoothly and reliably, without noise and other pollution.
All contact materials and some related parts of the whole machine are made of high-quality stainless steel, and the parts that need to be cleaned are all equipped with quick-change devices, which is easy to disassemble and wash. When certain materials require heating type heat preservation, a heating thermostat can be installed outside the barrel. Any material that uses plastic pipes and composite pipes as packaging materials, you can use this machine with confidence. It is the best product selected by the cosmetics industry, the pharmaceutical industry, the adhesive industry, the shoe polish industry, and other related industries.
Model |
SED-30RG-A |
Tube Material |
Plastic tube, laminated tube |
Tube Diameter |
Φ16mm-Φ50mm |
Filling Volume |
5-250ml |
Filling Accuracy |
±99% |
Product Capacity (Pcs/min) |
10-25 |
Power |
0.75KW, Ultrasonic wave 1.5KW |
Overall Dimension(mm) |
1200*800*1450mm (L*W*H) |
Machine Weight (kg) |
350kg |
Feature
1. The part in contact with the material is made of stainless steel 304.
2. The connection of each part is in the form of quick installation, which is easy to disassemble and clean.
3. Adopt high-quality pneumatic components.
4. An air blowing device is added to the cutting tail to prevent the cut tail material from accumulating on the workbench.
