Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Filling Equipment > Simple Maintenance Capsule Filling Machine Automatic NJP 400
Simple Maintenance Capsule Filling Machine Automatic NJP 400
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling Small Scale Automatic NJP 400 Capsule Filling MachineNegotiableMOQ: 1 -
Njp 400 Automatic Capsule Filling Machine Fully AutomaticNegotiableMOQ: 1
-
High Performance Effervescent Tablet Tube Filling MachineNegotiableMOQ: 1
-
Long Service Life Effervescent Tablet Filling And Sealing MachineNegotiableMOQ: 1
-
Nice Price Effervescent Tablet Counting And Filling Sealing MachineNegotiableMOQ: 1
Recommend Products
Products Description
The SED-400J-B automatic capsule filling machine is a new product that eliminates the semi automatic capsule filling machine. The equipment is widely used in hospitals, Junior College, Pharmaceutical Research Institute, Large pharmaceutical company laboratory etc., and is favored by customers.
Model |
SED-200J-B |
SED-400J-B |
SED-800J-B |
||
Filling capacity |
12000pcs per hour |
24000 capsules/hour |
48000 capsules/hour |
||
Capsule size |
00,0,1,2,3,4,5# safety capsule A-E |
||||
Power supply |
380/220V 50Hz |
380/220V 50Hz |
380/220V 50Hz |
||
Operating noise |
<75DB(A) |
<75DB(A) |
<75DB(A) |
||

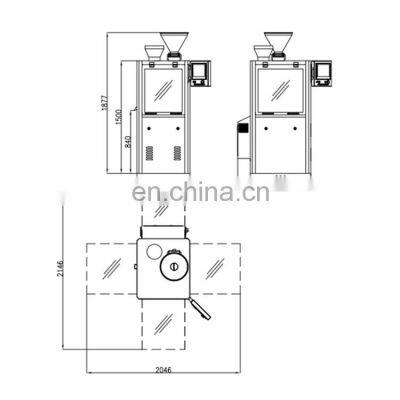

Dimension |
1000×710×1900mm |
1000×710×1900mm |
1000×900×2050mm |
||
Total power |
3KW |
3KW |
5KW |
||
Segment bores |
2 holes |
3 holes |
6 holes |
||
Weight |
600Kg |
600kg |
900kg |
||
Product Details
Feature
1. Small in size, lightin weight, energy savings, easy to operate and clean.
2. Opening and locking of capsule can be controlled automatically, which is safe and convenient.
3. Equipped with jog control system, which makes it easy and convenient for cleaning, loading and unloading of upper and lower dies.
4.Equiped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.
5.Automatic alarm and shutdown will be activated when lacks empty capsules or powder.
6.Rich functions designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer if needed, for printing information including date of production, lot number, quantity, etc.
7. The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy, and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.
8.The high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
9.The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life
2. Opening and locking of capsule can be controlled automatically, which is safe and convenient.
3. Equipped with jog control system, which makes it easy and convenient for cleaning, loading and unloading of upper and lower dies.
4.Equiped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.
5.Automatic alarm and shutdown will be activated when lacks empty capsules or powder.
6.Rich functions designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer if needed, for printing information including date of production, lot number, quantity, etc.
7. The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy, and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.
8.The high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
9.The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life
