Home > Packaging & Printing > Packing Machinery > Filling Machine > 45-100 Pcs / Min Injectable Plastic Ampoule Liquid Filling and Sealing Machine
45-100 Pcs / Min Injectable Plastic Ampoule Liquid Filling and Sealing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hospital Pharma 1-50ml Plastic Ampoule Oral Liquid Filling Sealing MachineNegotiableMOQ: 1 -
Universal Automatic Plastic Ampoule Bottle Forming Filling Sealing Machine 45-100 Pcs/minNegotiableMOQ: 1
-
Universal Automatic 8 Heads Rotary 10 Ml Vial Filling Crimping Machine Ampoule Liquid Filling MachineNegotiableMOQ: 1
-
New Type Rotary 10Ml Vial Filling Crimping Machine Liquid Filling MachinesNegotiableMOQ: 1
-
New Product Automatic Rotary Liquid Vial Filling Crimping MachineNegotiableMOQ: 1
Recommend Products
Products Description

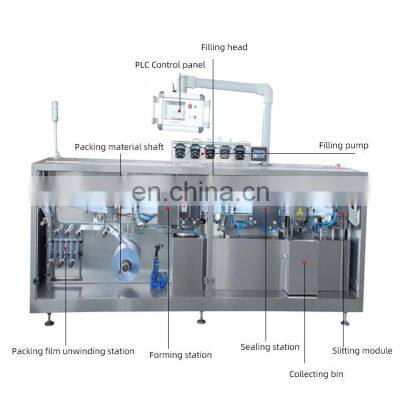

This machine is mainly used in lotions, nursing liquid, oral liquid, detergent, eye drops, nutrient solution, beverage, edible oil, lubricating oil, pesticide, medicine, perfume, and special liquid filling. This machine has the advantage of high degree of automation, stable operation, high quality and low cost. It is widely used in pharmaceutical and chemical industry, widely recognized and respected by the users.
Forming Depth(max) |
12 mm |
Capacity |
45-100 pcs/min
(15-25 cuttings/min, according to the ampoule size)
|
Filling Head |
5 |
Packaging materials |
PET/PE PVC/PE (0.2-0.4) ×240mm |
Filling Volume |
1-50ml/piece |
Power |
8.5 kw |
Voltage |
220V/380V 50/60HZ 3phase |
Weight |
1200kg |
Overall Dimension |
3200×850×1900mm |
Product Details
Feature
1. Imported electrical components are used on the basis of the original 240 model, makes the machine running more stably.
2. With the rocker-arm operating interface, you can operate easily in any position of the machine.
3. It adopts high-speed and high-precision motion controller, stepless frequency conversion speed control. And the film pulling device is controlled by servo motor.
4. Human-machine interface makes the operation simple.

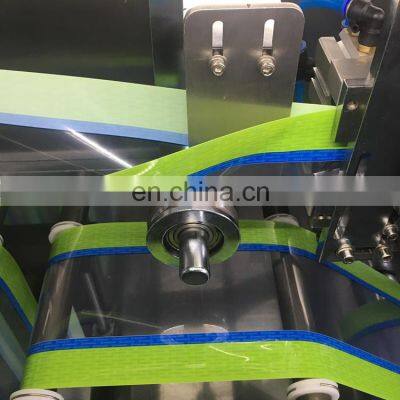

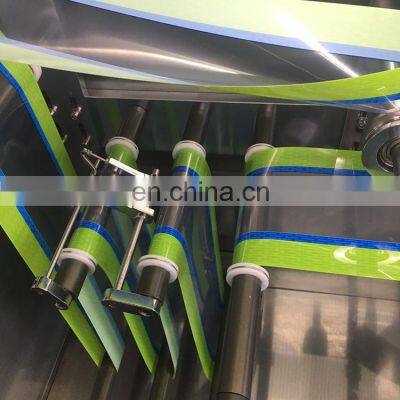

5. Automatic unwinding and film slitting. It has photoelectric positive and negative pattern matching function, which makes the exquisite finished products, meet the high standard of packaging requirements.

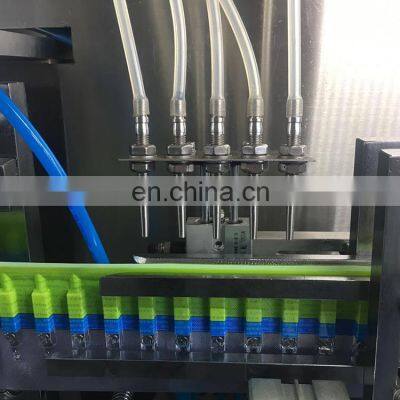

6. Using electronic peristaltic pump device for dosing (or mechanical piston pump control), easy to adjust.
7. With high filling accuracy, the filling does not leak, have no foam and won’t overflow.
8. High-quality stainless steel 316L is used in the parts contacted with the medicine. All the machine covers are stainless steel 304. It meets the GMP standard.
9. The bottom of the bottle is flat and can stand up.
2. With the rocker-arm operating interface, you can operate easily in any position of the machine.
3. It adopts high-speed and high-precision motion controller, stepless frequency conversion speed control. And the film pulling device is controlled by servo motor.
4. Human-machine interface makes the operation simple.
5. Automatic unwinding and film slitting. It has photoelectric positive and negative pattern matching function, which makes the exquisite finished products, meet the high standard of packaging requirements.
6. Using electronic peristaltic pump device for dosing (or mechanical piston pump control), easy to adjust.
7. With high filling accuracy, the filling does not leak, have no foam and won’t overflow.
8. High-quality stainless steel 316L is used in the parts contacted with the medicine. All the machine covers are stainless steel 304. It meets the GMP standard.
9. The bottom of the bottle is flat and can stand up.
Finished Product Display
Product Packaging
