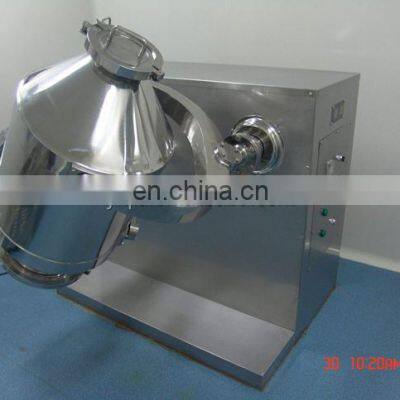

Help CenterLab 3 Dimensional Mixing Machine
Related Products
-
Stainless Steel Ink Mixer/printing Ink Mixer/pulp MixerNegotiableMOQ: 1 -
Tobacco Mixer for Industrial Production/Horizontal Ribbon MixerNegotiableMOQ: 1
-
Large Viscous Material MixerNegotiableMOQ: 1
-
DSH Series Double Screw Cone Fertilizer Mixer / Double Screw MixerNegotiableMOQ: 1
-
Peanut Butter Mixing MachineNegotiableMOQ: 1

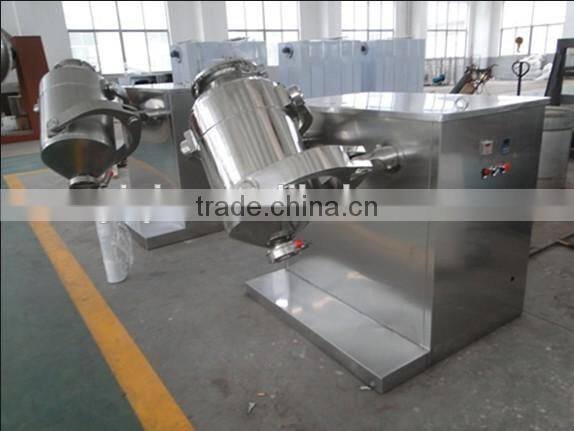

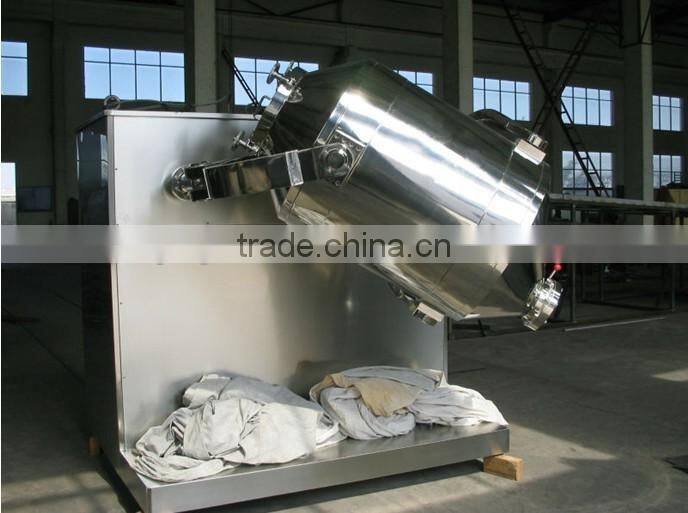

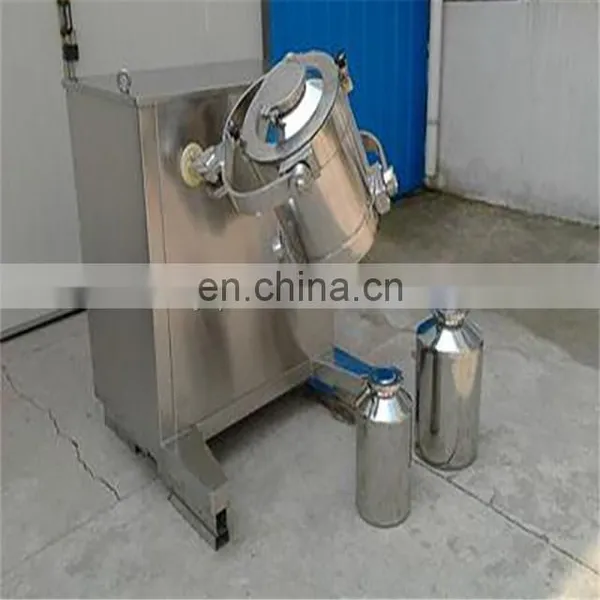

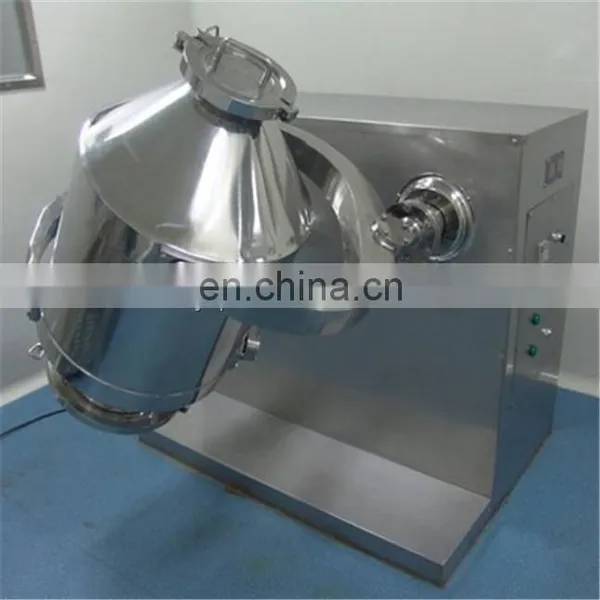

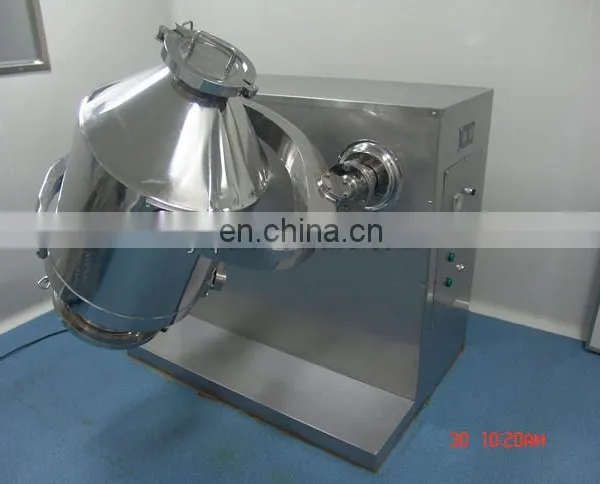

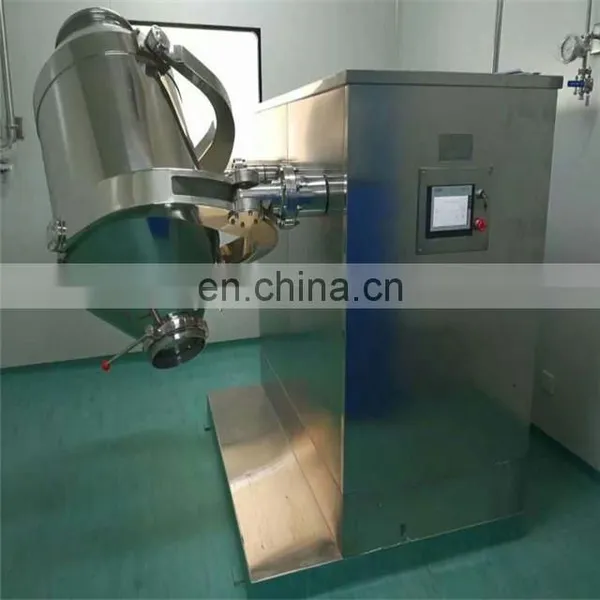

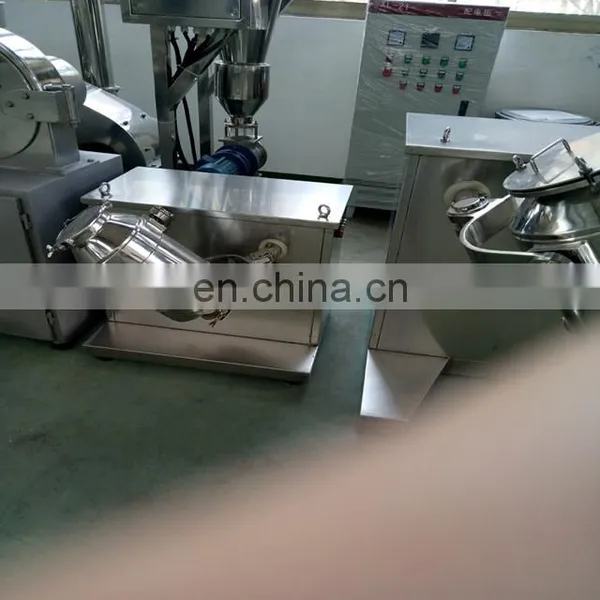

SYH Three-Direction Motion Mixer
Summary of the products :
This machine is applied to pharmacy , chemical industry , food , metallurgy , light industry and R&D institution extensively, can mix the powdery with better mobility or the supplies of the particle form very evenly , the supplies after enabling mixing can reach the best state of mixing .

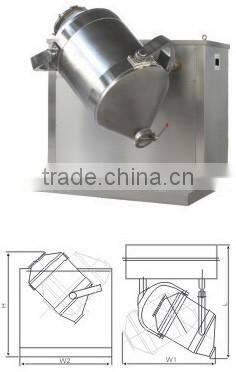

This machine mix the barrel body and have multi-direction movements of operating in running, make various kinds of supplies flow and spread function with higher speed in the course of mixing, prevented the general mixer from simply analysing and gathering the phenomenon because of the supplies proportion produced of centrifugal function at the same time , not having the dead angle to mix, the ones that can guarantee to mix the supplies effectively are best in quality. Structure: Machine this by machine flat, transmission, electric apparatus control system, more to sport organization, mix such parts as the barrel ,etc. make up, mix barrel adopt stainless steel material make , barrel body internal and external wall pass the polishing with whom supplies contact directly. Totally accord with GMP demand.
Working principle:
Mixing barrel is suspended on ends of driving and driving axles through two Y type universal joints that are crossing and vertical to each other in the space. When driving axle is driven to rotate universal joint makes the barrel perform composite motion including horizontal moving, rotation and turning etc. in the space, by which, material perform 3-dimension motion inside the barrel, several kinds of material inside the barrel flow, diffuse, penetrate each other and finally form uniform status.
Usage and features:
1. As a high efficient mixing equipment, this machine is used for high homogeneity mixing of powdery and particle materials in such trades as pharmaceutical, food, chemical. Light industry, machinery, electronics, mining and metallurgy, national defense industry and scientific research etc.
2. Material has no centrifuge force effect, specific gravity segregation, lamination and accumulation during mixing. Each component can be mixed under wide gap of weight proportion, mixing rate reaching over 99.9%
3. Loading coefficient can reach 80%(40% for normal ones)
4. With compact structure, driving part of equipment is step less speed controlled, featuring convenient operation.
5. Each part of drum is transited by are and polished precisely, meeting the GMP requirement.

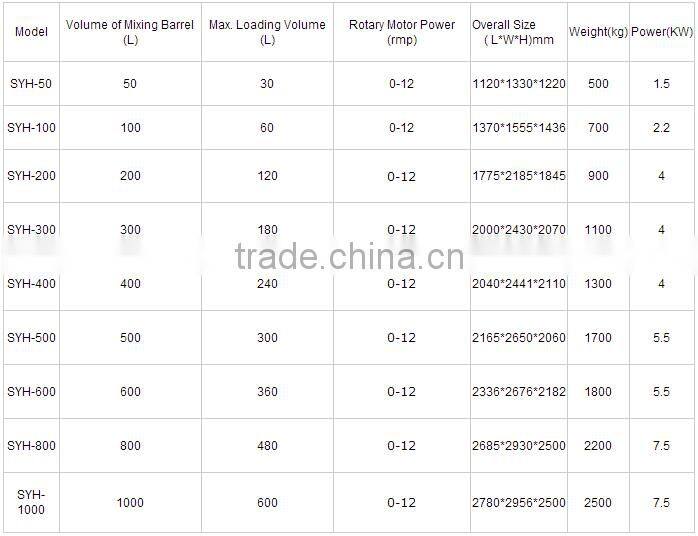

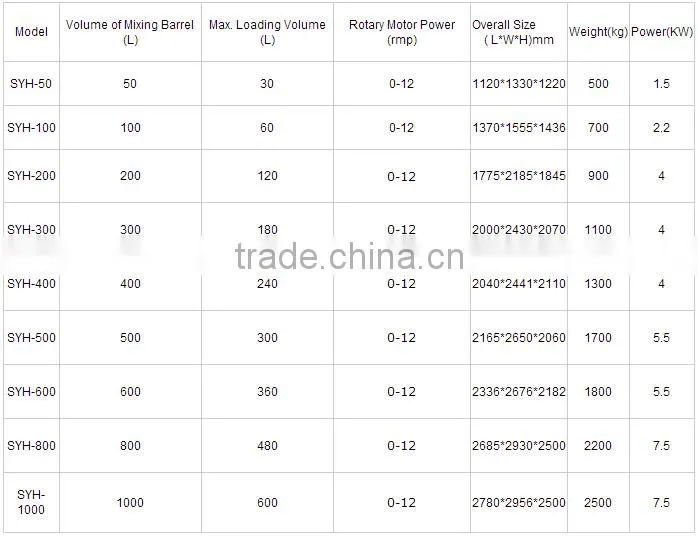

Technical Parameter::
EYH Series Two Dimensional Mixer
SZH Series double cone Mixer
CH Series slot Shape Mixer
