Checkered Steel Plate
Description

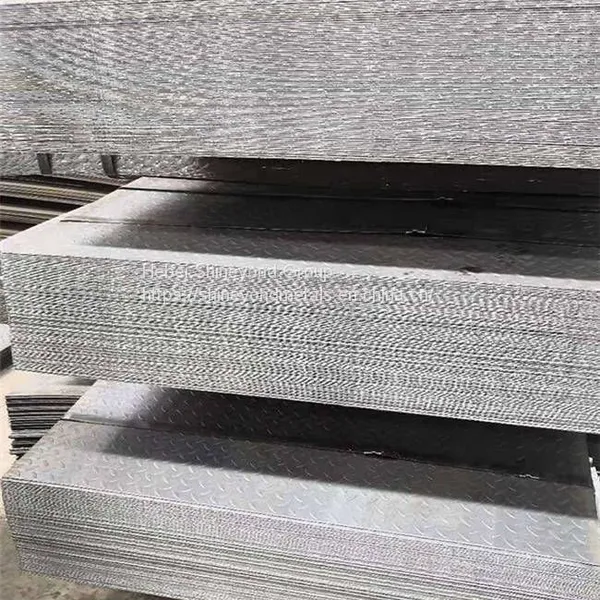

Checkered Steel Plate is a steel plate with a raised (or recessed) pattern on the surface. The pattern is lentil-shaped, diamond-shaped, round bean-shaped, and mixed flat and round shapes. The lentil shape is the most common in the market. The pattern can be a single diamond, lentil or round bean shape, or a combination of two or more patterns to become a combined pattern plate.
Due to the diamond pattern, the risk of slipping is greatly reduced. Checkered Steel Plate is commonly used in structures such as stairs, ramps, walkways and vehicle interiors. It can also be found in construction applications.
Checkered Steel Plate Precautions
1. After the materials are transported to the site, they should be stacked according to the specifications and installation positions, and the square wood should be padded to prevent the rain from scouring. The stacking height should not be too high to prevent deformation caused by being overweight.
2. In order to meet the requirements of the overall construction progress, the laying of the patterned steel plate is closely connected with the installation of the steel structure. After a certain stage of anti-corrosion work on the steel beam, the patterned steel plate can be laid. The laying sequence is the same as the steel beam installation sequence.
3. On the patterned steel plate, the lifting lugs are welded on the ground, and the holes to be welded on the secondary beam and the frame beam are cut with flame. The size of the opening is 6mmx12mm, and the spacing is not more than 0.5m.
