YJ500 industrial joystick
Product Features
1. Building block design
2. Spring automatic reset
3. Fully sealed design
4. Can adapt to the complex
Application
YJ500 industrial joystick, mainly used in forklift truck and other construction machinery hydraulic proportional control and variable frequency motor control.
Technical Specifications
Environment Specifications
Storage temperature: normal temperature
Operating temperature: —25℃~+80℃
Installation of flange protection grade: IP65
Vibration: amplitude of vibration ±3g, frequency 10HZ-200HZ
Shock: 20g, 6ms, half sine type
EMC anti-interference grade: 100V/m, 30MHZ-1GHZ, 80%Sine-wave modulation, satisfy EN 50082-2 (1995) standards
Transmit grade: 150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards
ESD anti-interference grade: Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards
Mechanical Specifications
Mechanical rotation: ±32° (potentiometer) ±20° (hall sensor)
Operating torque: 3.5N(50Nmax)
Mechanical life: 5,000,000 cycle
Mechanical tolerance: ±0.5°
Electrical Parameters
Power supply voltage: 5±0.5VDC
The power consumption of current Resolution: 6.5 mA/each hall chip Infiniti
Maximum voltage: 15 VDC
Reverse polarity maximum:14.5VDC
voltage Load resistance: 5KΩ
The median voltage (no-load) :48~52%Vs
Power supply voltage:DC24V
Power supply:<20mA
current Resolution Resistance (10%):Infiniti 2KΩ, 5KΩ, 10KΩ
Electrical rotation:±32°
Output voltage range (Relative voltage):0~100%;10~90%
Maximum voltage:48%~52%
Potentiometer maximum load of voltage Maximum power consumption (25 ℃) The direction of the switch: 32VDC 0.25W Switch position ±3°

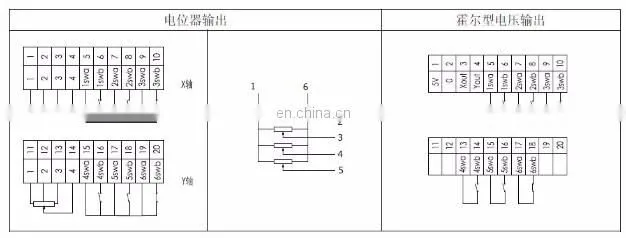

Wiring instructions

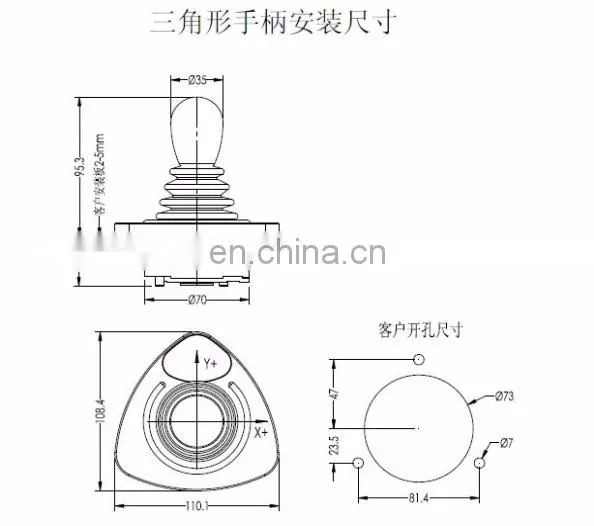

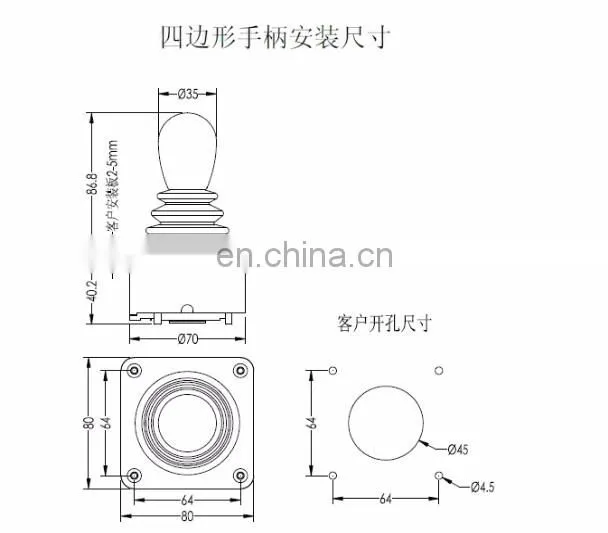

Product Installation
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2years warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
