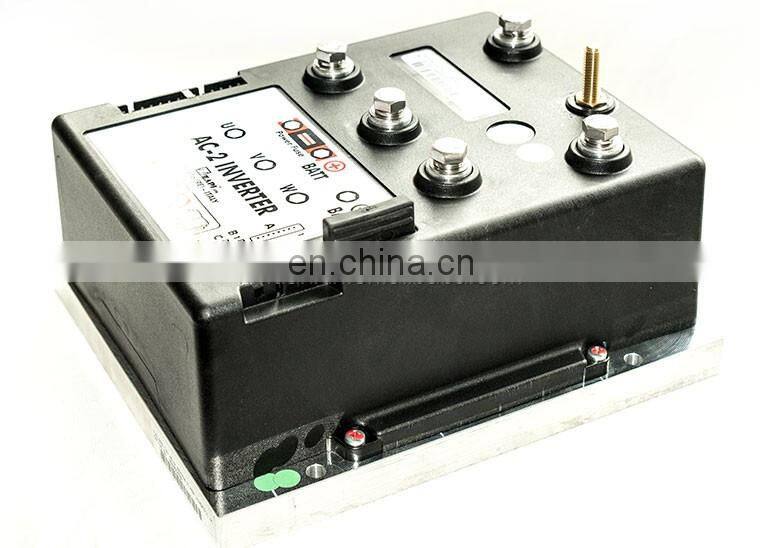

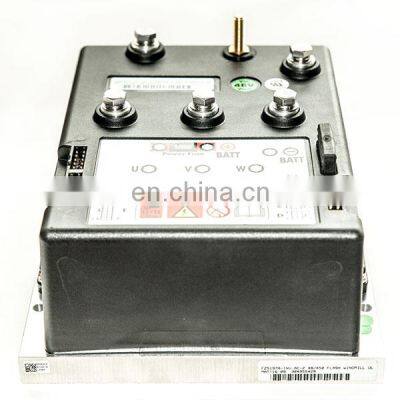

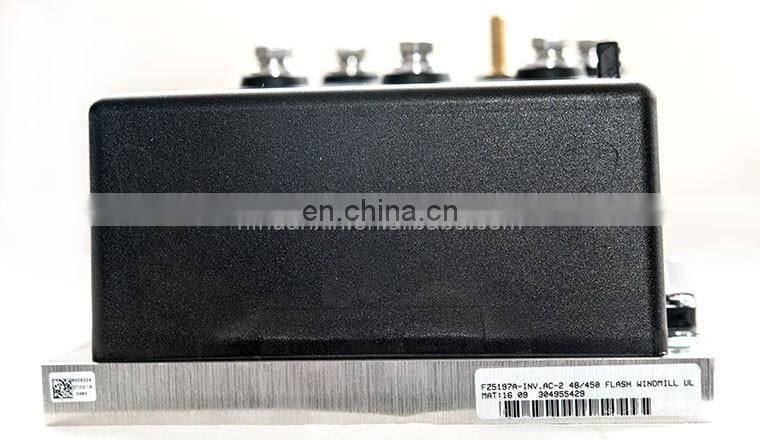

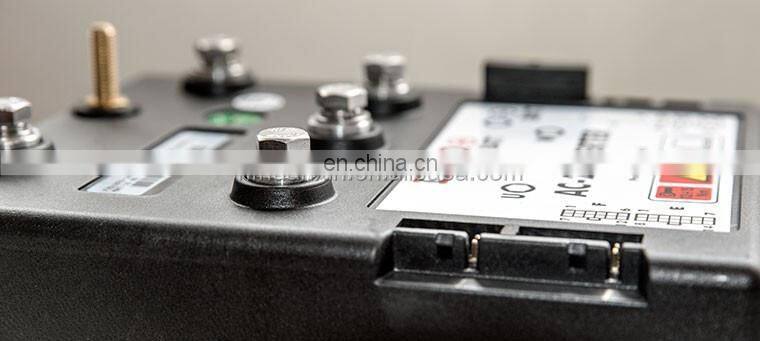

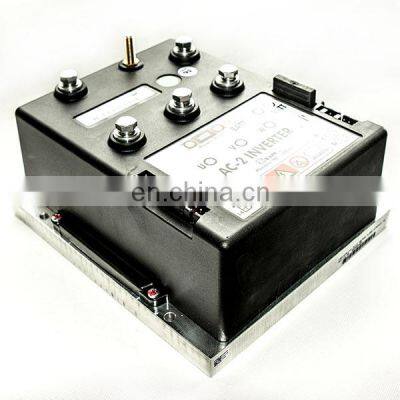

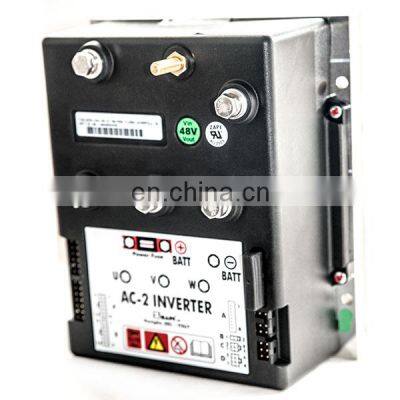

ZAPI AC-2 Motor Controller AC-2 FZ5197A-INV Electric Forklift Conversion Kits

Overview:

Within the ZAPIMOS motor controller family, the AC-2 FLASH inverter is the model suitable for control of 3.0 kW to 8.0 kW motors. It has been expressly designed for battery electric traction.
The AC-2 Inverter is suitable for reach and counterbalanced electric trucks with single or twin drive motors, high level order pickers and tow tractors fitted with asynchronous motors. For different vehicle types, the AC-2 offers an excellent flexibility on the motor working current and power efficiency managnent.

Features Include:

Voltage & Current ratings: 48V / 450A
Inverter for AC asynchronous 3-phase motors
Regenerative braking functions
CAN-bus interface
Flash memory (256 Kbytes On-Chip Program Memory)
Digital control based upon a microcontroller Voltage: 48V
Maximum current: 450 A (RMS) for 3 seconds
Booster: 10% of maximum current for some seconds
Operating frequency: 8 kHz
External temperature range: -30 °C to 40 °C
Maximum inverter temperature (at full power): 75 °C
Any future technological updates are made clear to the user. The communication protocol will continue to evolve, thus offering increasing possibilities of interaction. For this reason, the ZAPIMOS family offers a standard dialogue mode with external systems, for easy interfacing with commercially available machines. ZAPI offers a range of programming consoles with various features and prices, for example the ZAPI_HHC handset (not ZAPI product, made by a Chinese manufacturer) and ZAPI Smart Console (original ZAPI diagnosing tool)
The inverter is protected against dust and the spray of liquid to a degree of protection meeting IP54
Dimensions: 230 x 200 x 127.5 mm
