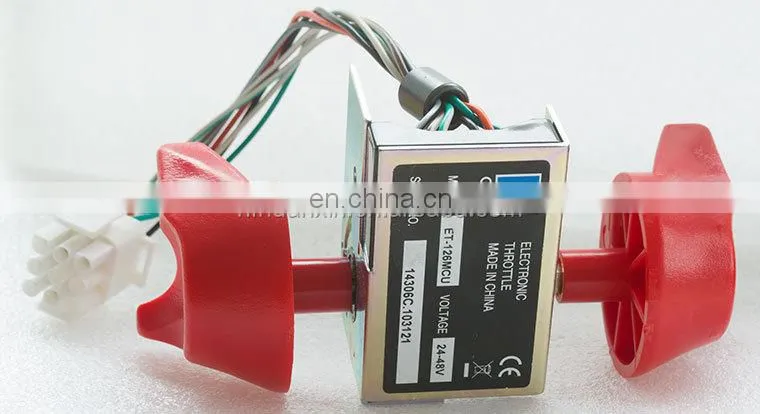

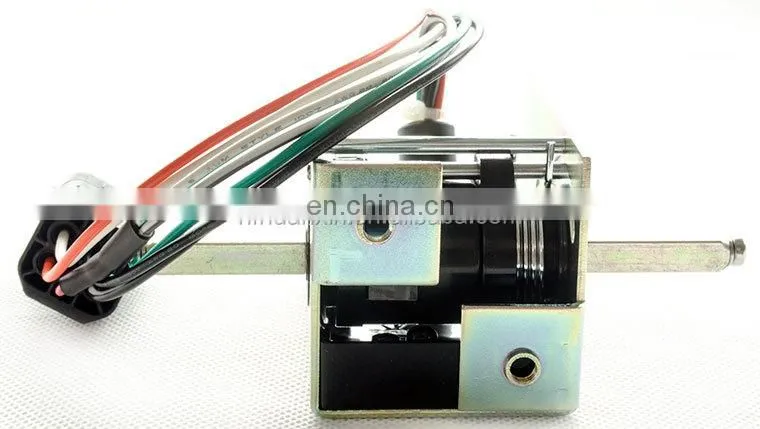

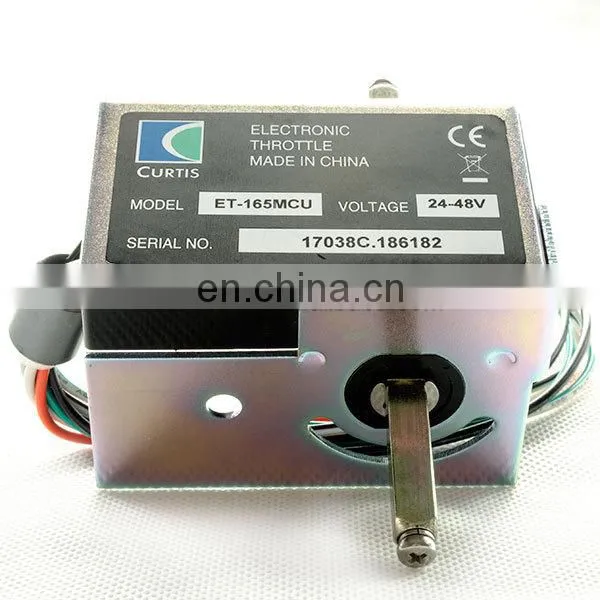

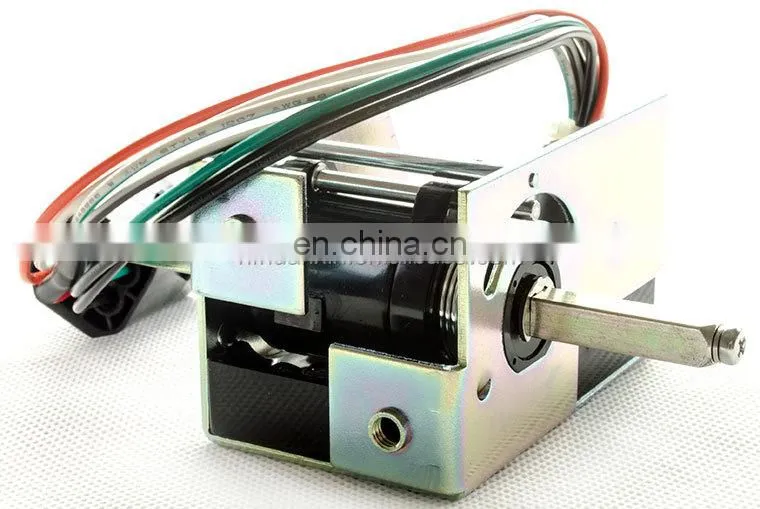

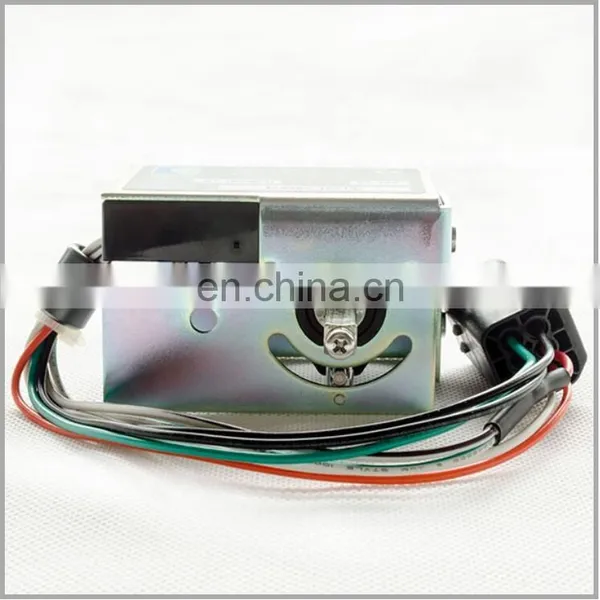

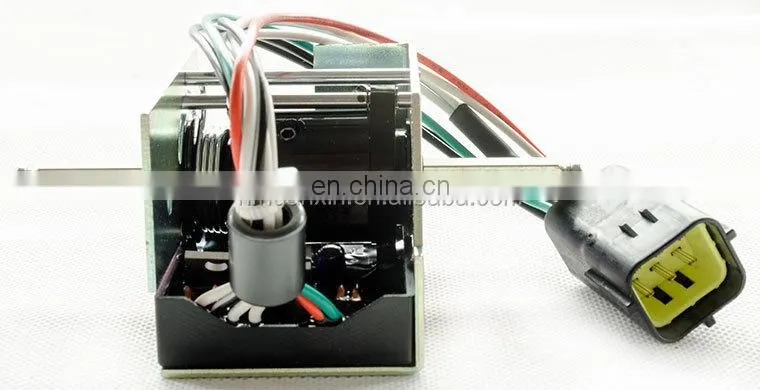

Help CenterCURTIS Hall-Effect Throttle 0-5V Speed Signal Device Model ET-165 MCU
Related Products
-
FREI Universal Traction Switch Model 3203-30630-A0 24/36/48V DCNegotiableMOQ: 1 -
YALE ELECTRIC PALLET JACK FORKLIFT WALKIE STACKER TILLER HANDLENegotiableMOQ: 1
-
ELECTRIC PALLET TILLER HANDLE, CONTROL HANDLENegotiableMOQ: 1
-
ELECTRIC PALLET JACK FORKLIFT Frei Temo 200NegotiableMOQ: 1
-
Material Handling FORKLIFT Frei Temo 600NegotiableMOQ: 1
Specifications:
- Input voltage (volt): 24-48V DC
- Signal output: 0-5V
- Maximum throttle output: 5.3V
- Minimum throttle output: 0V
- Maximum deadband at zero throttle: 10 degrees
- Maximum deadband at full throttle: 10 degrees
- Forward/Reverse current: 1.5A max
- Symmetrical throttle response in both directions

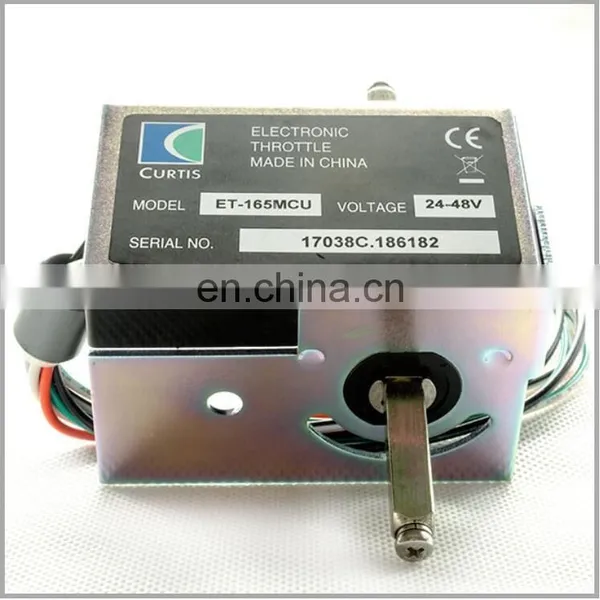

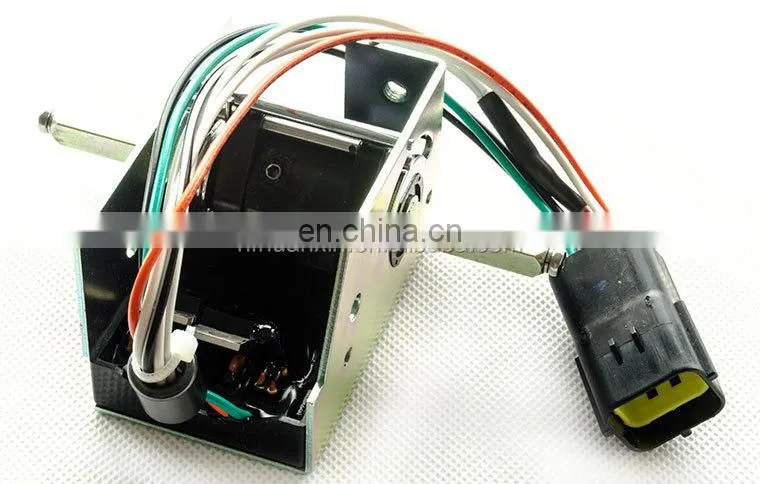

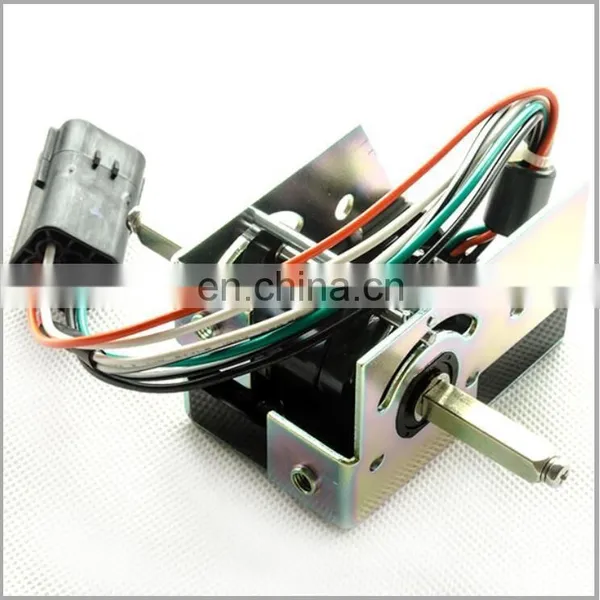

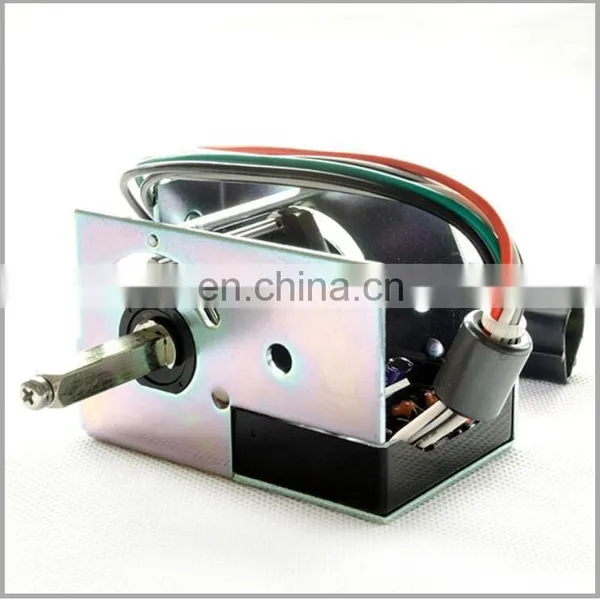

CURTIS ET-165 MCU throttle assemblies provide an analog 0-5V output proportional to throttle position for interfacing with CURTIS PMC motor speed controllers.
This new MCU version replaces the old ET-165 throttle. They are functionally identical, but the MCU version has a microprocessor, providing more accurate speed signal output.
Key Features:
- Model: ET-165 MCU
- Hall effect sensors and solid state MOSFET contactor drivers minimize moving parts, thereby increasing reliability and Mean Time Between Failure.
- Symmetrical throttle response in both forward and reverse directions ensures smooth, concise acceleration and deceleration in both directions.
- Minimal deadband areas at both zero and full throttle positions eliminates hesitation when beginning to accelerate or decelerate.
- Environmental protection of major components through an epoxy layer over the circuit board assures operation in harsh environmental conditions.
- Wig-wag type throttle returns the throttle to neutral for convenience and safety.
- Input polarity protection to ensure no damage occurs to the throttle if it is incorrectly wired.
- Easy to install.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
