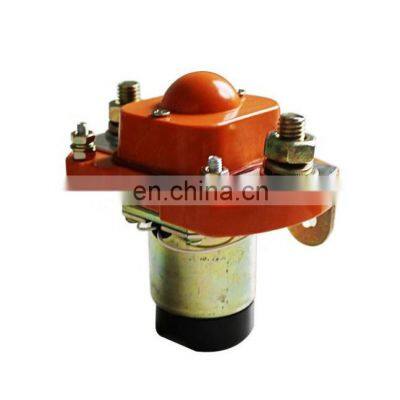

ZJ400 A dc Contactor 48v Double Coil Relay Electric Car Parts

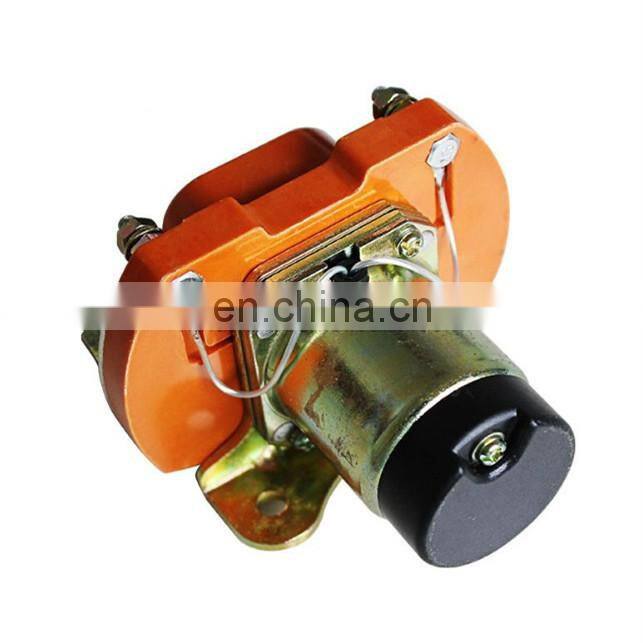

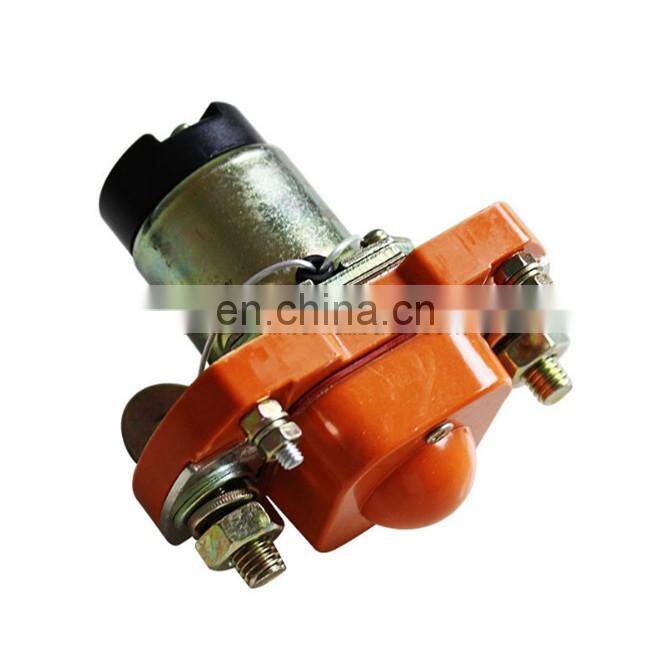

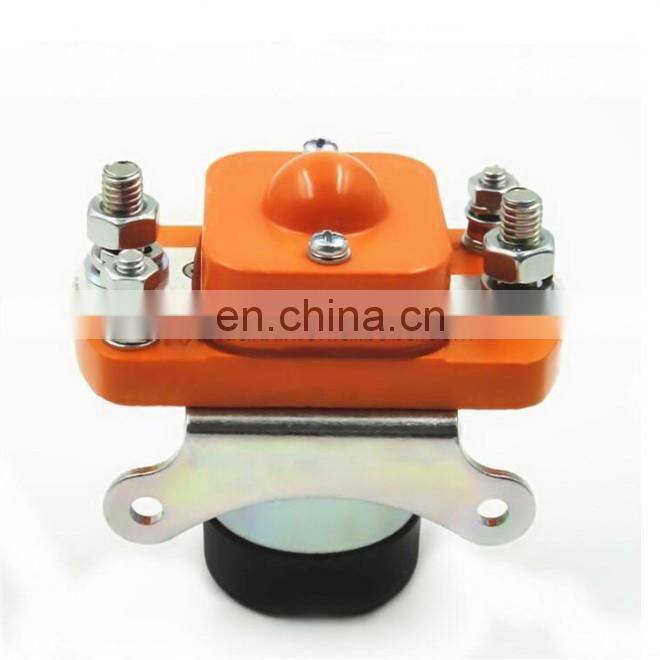

The MZJ-200S contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. MZJ-200S has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Model: MZJ-200S (double-coil, close contact chamber)
Voltage Options (Volts): 12V, 24V, 30V, 36V, 40V, 48V or 60V.
Ambient temperature:-25~+40℃
Altitude range:0~2000m
Max.relative humidity: 90% at 25℃
Installation method:vetically or horizontally
Voltage fluctuating:0.7~1.1Ue


Main rated load current of contact circuit (amps): 200A
Dielectric (volt) strength: 50Hz 1000V AC 1min
Current volt drop of main contact at 200A: Not above 80mV

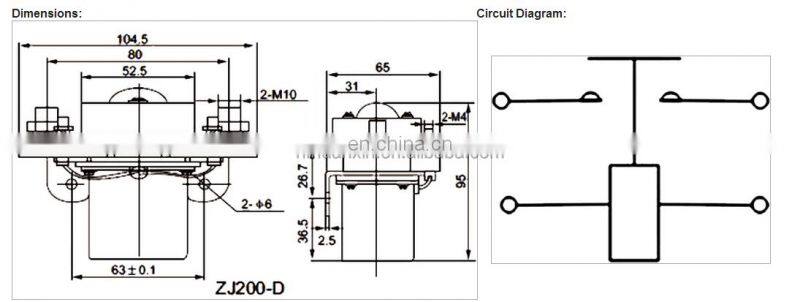

Dimensions (LxWxH ): 87.8x58x85 mm
Mounting: two 5.5mm fixing holes in bracket; pitch-row: 47mm
Main contact full load rating voltage (recommended): Max. 48V (inductive load) / 60V (resistive load)
Mechanical life: 100,000 times
Electric life: 2,000,000 times

 Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

Package: Normally we use the standard exporting packaging. We also can according to clients' request .
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
