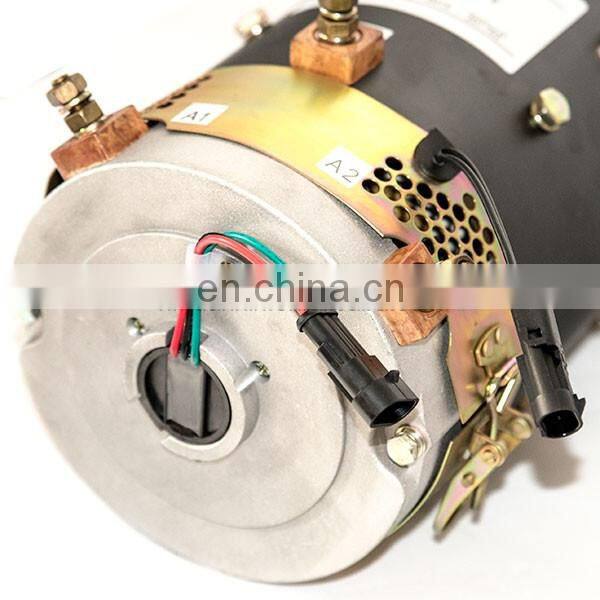

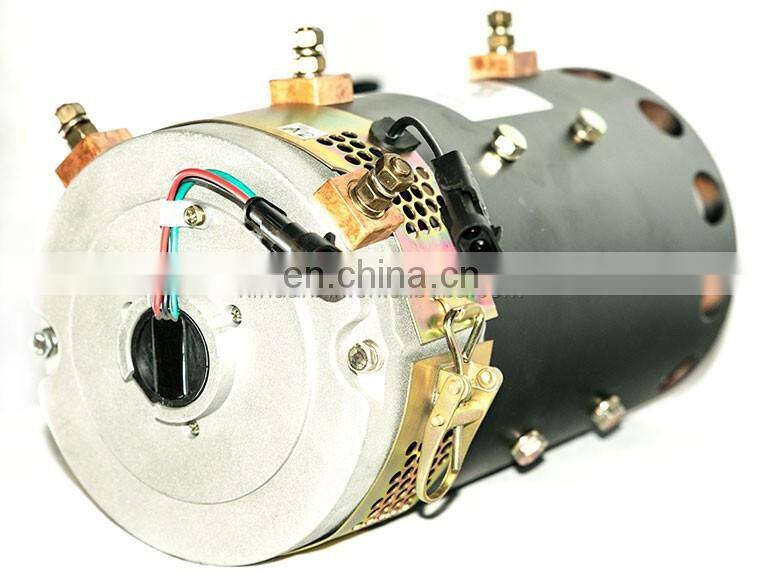

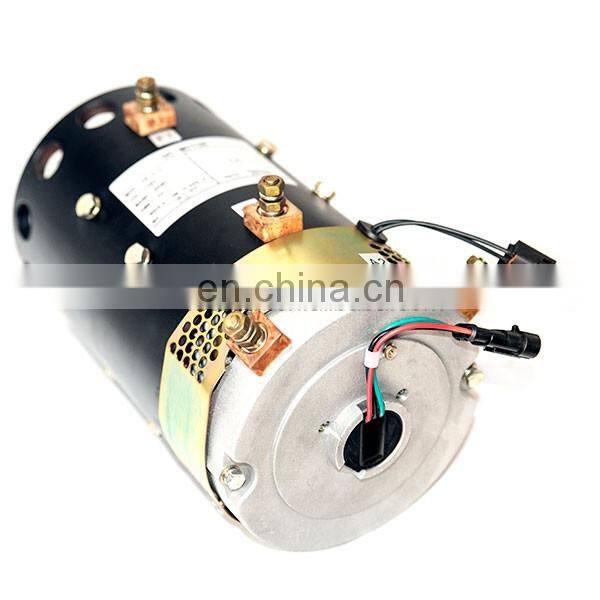

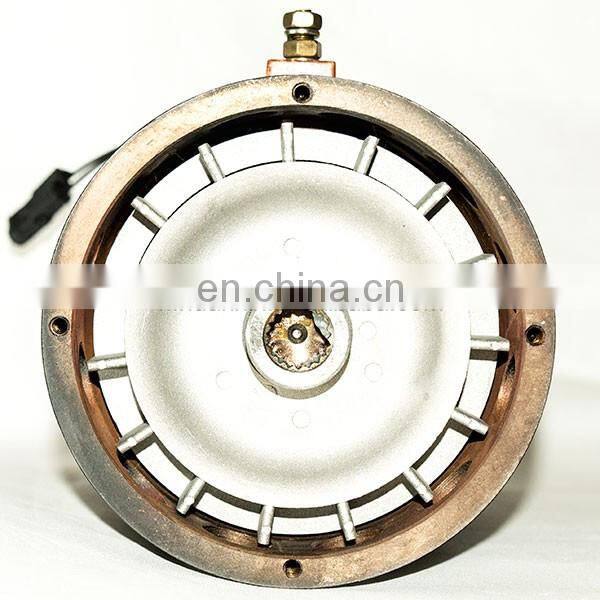

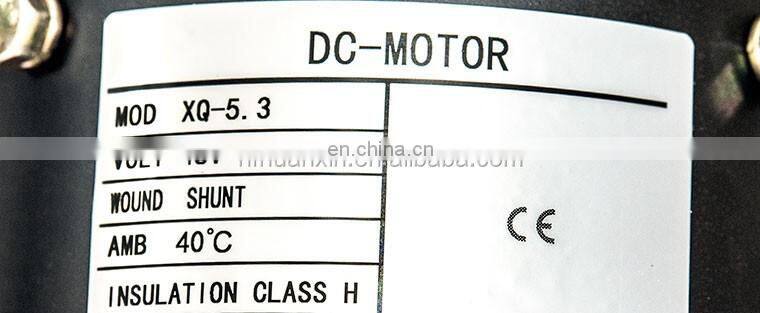

Hot Sale DC SepEx Motor XQ-5.3 48V 5.3KW for Golf Cart

Nominal power rate: 5.3 kW
Operating voltage: 48V
Speed sensor mating connector is included (different connector types are available. By default, an AMP waterproof 3-Pin connector is coming with the motor); but the temperature sensor mating connector is not included (the temperature sensor may be left not used, if your motor control unit does not has a temperature control function)
Insulation: class H
Weight: 26.0 kg (package weight: 28.5 kg)

The DC SepEx motors XQ-5.3 are widely used in electric vehicles as the traction motor. Typical application: Marshell, EAGLE and LVTONG golf carst, etc.
We supply also the carbon brush set for XQ-5.3.
For more application details (spline, transmission, etc.), please contact us ...

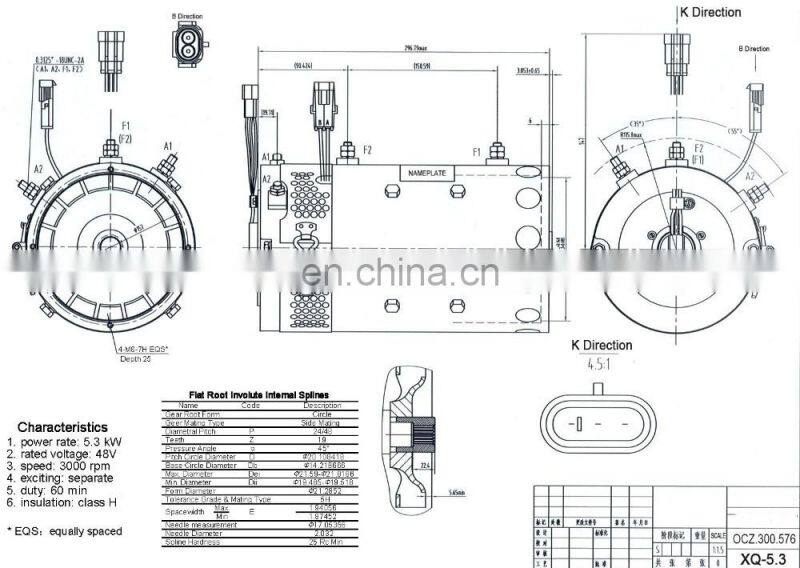

Diagram of motor:
