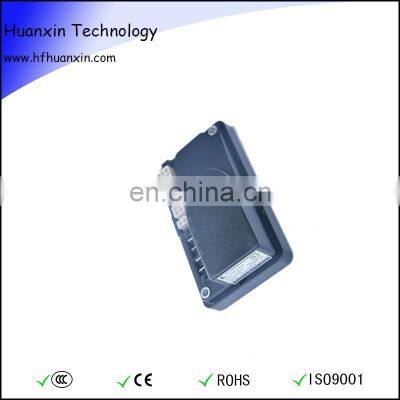

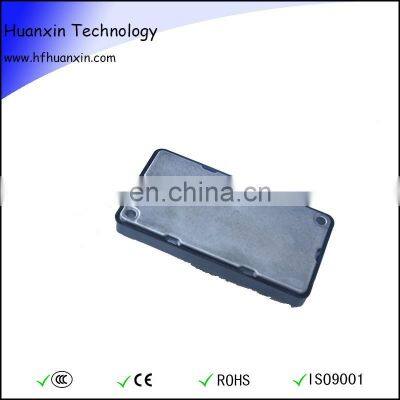

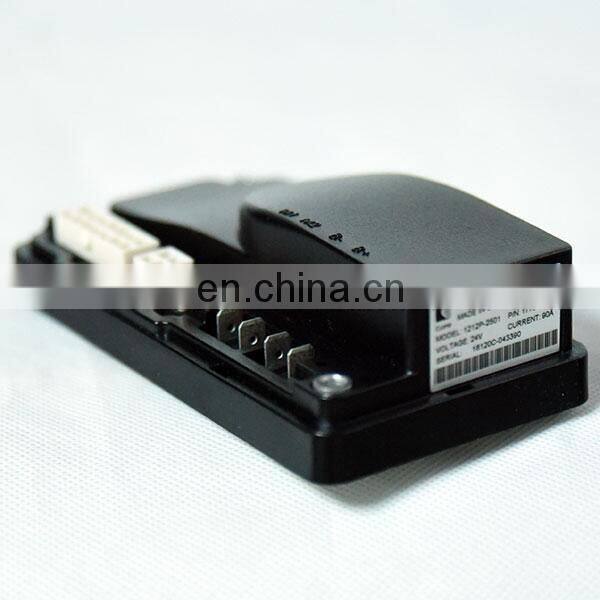

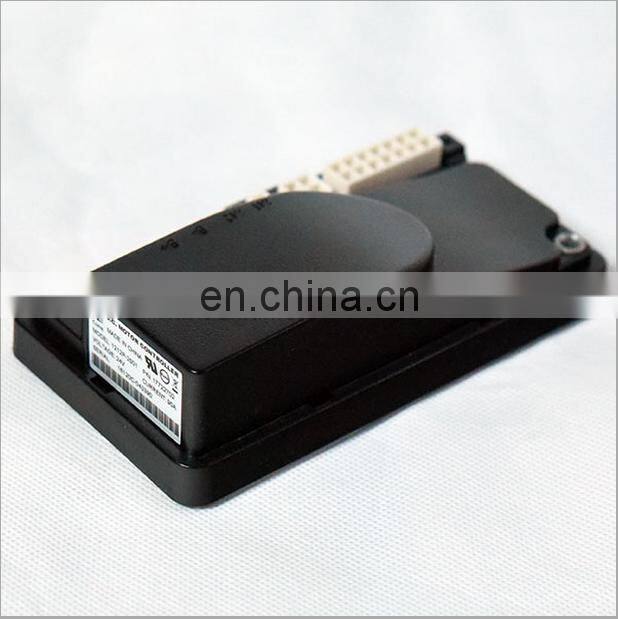

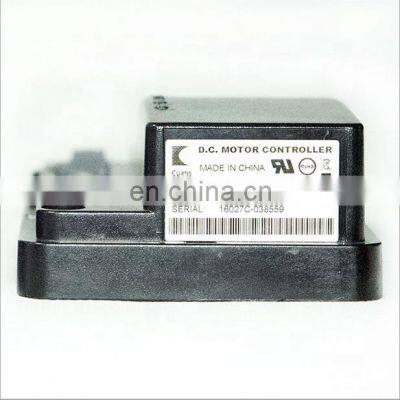

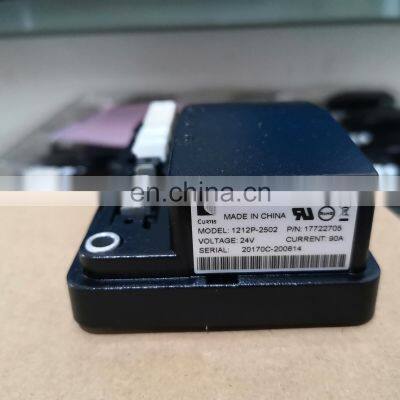

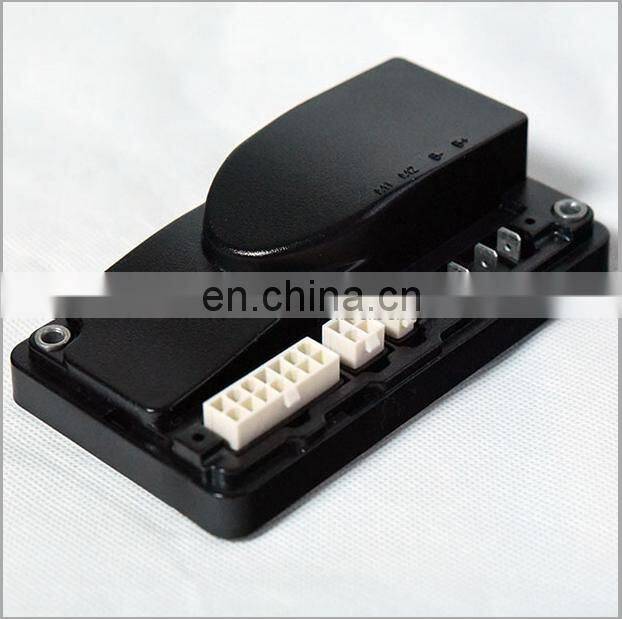

Mini Controller Curtis PM Type 1212p Series Controller for Electric BD Trike
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1266r-5351 to Replace 1266a-5201 Controller With 36-48v 350a
-
Curtis DC Motor Controller 1266r-5351 Can Work With Chinese Programmer
-
48V 5KW AC Motor Controller 1234ser From Curtis Original
-
Club Car 48v Electric Vehicle System dc Motor Controller 1268-5403 400A
-
CURTIS 250A 24V AC MOTOR CONTROLLER 1232E-2321 for MIMA Electric Forklifts
-
AC Motor Controller 1234ser Suitable for All AC Golf Cart
Product Description
Product Description
Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS
1212&1212P Controller Manual before making the purchase.
If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to
download the parameter list of default setting of controller 1212P-2501 & 1212P-2502, PDF format).
In our database, we have saved 1212P-2501 controller programs for different pallet trucks and forklifts, EP / ZL, RUYI / XILIN,
VOLOX, Landpull / Zhongchuang, Noblelift, Cheuk's, MIMA, etc. If you are going to replace an old controller, you may send us a
message for telling the old controller's model. We may check our database for knowing if we have its program. For more details,
please contact us.
Overview:
The 1212P-2501 is designed for use in low power DME applications such as micro-scooters, mini-scooters, foldable scooters, and
low-end personal mobility vehicles. Although it is optimized for use on modern 3-wheel and 4-wheel mobility aid scooters, its
programmable options also allow it to be used on any low power permanent magnet motor application.
The 1212P-2501 controller is fully programmable, via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station
. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use
of the programmer offers diagnostic and test capability.
Key Features:
* CURTIS Model: 1212P-2501
* Norminal Battery Voltage (Volts): 24V
* 20 Second Current Rating (amps): 90
* 2 Minute Current Rating (amps): 50
* 1 Hour Current Rating (amps): 20
* Peak Boost Current (amps): 90
* Max Boost Current Duration: 10 Second
* Minimum motor resistance: 120 mΩ
* B+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector)
* KSI input current (typical): 80 mA
* Logic input current (typical): 1 mA
* Horn output current (max.): 15 mA
* BDI output voltage, resistance (max.): 0–5 V, 10 kΩ
* LED output current (max.): 15 mA
* Electromagnetic brake coil resistance (min.): 32 Ω
* PWM operating frequency: 15.6 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* Heatsink overtemperature: linear cutback starts at 80°C; complete cutoff at 105°C
* Heatsink undertemperature: cutback starts at -10°C; and is reduced linearly to 50% at -25°
* Undervoltage cutoff: 14 V
* Overvoltage cutoff: 34 V
* Throttle Type: By default, the Throttle Type of controller 1212P-2501 is set as Type 7 (7 = single-ended; neutral when wiper ≤
PotLow). The 1212P-2501 controller can accept inputs from both 5kΩ, 3-wire pot throttles and voltage throttles. Set the
throttle type parameter to match the throttle used in your application. * 5kΩ, 3-wire pot throttles: * 0 = wigwag
* 1 = inverted wigwag
* 2 = single-ended; neutral when wiper at PotLow
* 3 = inverted single-ended; neutral when wiper at PotHigh
* 4 = unipolar
* Voltage throttles
* 5 = wigwag6 = inverted wigwag7 = single-ended; neutral when wiper ≤ PotLow8 = inverted single-ended voltage; neutral when
wiper ≥ PotHigh9 = unipolar
* Dimensions: W72xL131xH39 mm
* Net Weight: 0.3 kg
Certification pending
* Operating ambient temperature range: -25°C to 50°C
* Storage ambient temperature range: -40°C to 65°C
* Package environmental rating: ISTA 2A; electronics sealed to IPX5
1212&1212P Controller Manual before making the purchase.
If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to
download the parameter list of default setting of controller 1212P-2501 & 1212P-2502, PDF format).
In our database, we have saved 1212P-2501 controller programs for different pallet trucks and forklifts, EP / ZL, RUYI / XILIN,
VOLOX, Landpull / Zhongchuang, Noblelift, Cheuk's, MIMA, etc. If you are going to replace an old controller, you may send us a
message for telling the old controller's model. We may check our database for knowing if we have its program. For more details,
please contact us.
Overview:
The 1212P-2501 is designed for use in low power DME applications such as micro-scooters, mini-scooters, foldable scooters, and
low-end personal mobility vehicles. Although it is optimized for use on modern 3-wheel and 4-wheel mobility aid scooters, its
programmable options also allow it to be used on any low power permanent magnet motor application.
The 1212P-2501 controller is fully programmable, via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station
. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use
of the programmer offers diagnostic and test capability.
Key Features:
* CURTIS Model: 1212P-2501
* Norminal Battery Voltage (Volts): 24V
* 20 Second Current Rating (amps): 90
* 2 Minute Current Rating (amps): 50
* 1 Hour Current Rating (amps): 20
* Peak Boost Current (amps): 90
* Max Boost Current Duration: 10 Second
* Minimum motor resistance: 120 mΩ
* B+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector)
* KSI input current (typical): 80 mA
* Logic input current (typical): 1 mA
* Horn output current (max.): 15 mA
* BDI output voltage, resistance (max.): 0–5 V, 10 kΩ
* LED output current (max.): 15 mA
* Electromagnetic brake coil resistance (min.): 32 Ω
* PWM operating frequency: 15.6 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* Heatsink overtemperature: linear cutback starts at 80°C; complete cutoff at 105°C
* Heatsink undertemperature: cutback starts at -10°C; and is reduced linearly to 50% at -25°
* Undervoltage cutoff: 14 V
* Overvoltage cutoff: 34 V
* Throttle Type: By default, the Throttle Type of controller 1212P-2501 is set as Type 7 (7 = single-ended; neutral when wiper ≤
PotLow). The 1212P-2501 controller can accept inputs from both 5kΩ, 3-wire pot throttles and voltage throttles. Set the
throttle type parameter to match the throttle used in your application. * 5kΩ, 3-wire pot throttles: * 0 = wigwag
* 1 = inverted wigwag
* 2 = single-ended; neutral when wiper at PotLow
* 3 = inverted single-ended; neutral when wiper at PotHigh
* 4 = unipolar
* Voltage throttles
* 5 = wigwag6 = inverted wigwag7 = single-ended; neutral when wiper ≤ PotLow8 = inverted single-ended voltage; neutral when
wiper ≥ PotHigh9 = unipolar
* Dimensions: W72xL131xH39 mm
* Net Weight: 0.3 kg
Certification pending
* Operating ambient temperature range: -25°C to 50°C
* Storage ambient temperature range: -40°C to 65°C
* Package environmental rating: ISTA 2A; electronics sealed to IPX5
Product Paramenters
Features Include:
* Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs, and ramps
* Linear cutback of current ensures smooth control, with no sudden loss of power during undervoltage or overtemperature
* Optional speed limit potentiometer provides direct and linear control of the maximum vehicle speed
* Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals
* The vehicle is brought to a complete stop before the electromagnetic brake is applied, ensuring safe and secure stops under all
conditions
* Charger inhibit input prevents driving while charger is attached
* Key Off Decel function ensures a smooth “brake to stop” when the key is turned off while driving or when a fault occurs that
requires the vehicle to stop
* Anti-Rollback/Roll-forward function provides smooth and safe vehicle control on hills and ramps
* Internal main contactor provides secure power-off
* Boost current gives a brief boost of current greatly improving transient loads such as starting on a hill, crossing thresholds,
etc.
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
* Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs, and ramps
* Linear cutback of current ensures smooth control, with no sudden loss of power during undervoltage or overtemperature
* Optional speed limit potentiometer provides direct and linear control of the maximum vehicle speed
* Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals
* The vehicle is brought to a complete stop before the electromagnetic brake is applied, ensuring safe and secure stops under all
conditions
* Charger inhibit input prevents driving while charger is attached
* Key Off Decel function ensures a smooth “brake to stop” when the key is turned off while driving or when a fault occurs that
requires the vehicle to stop
* Anti-Rollback/Roll-forward function provides smooth and safe vehicle control on hills and ramps
* Internal main contactor provides secure power-off
* Boost current gives a brief boost of current greatly improving transient loads such as starting on a hill, crossing thresholds,
etc.
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
