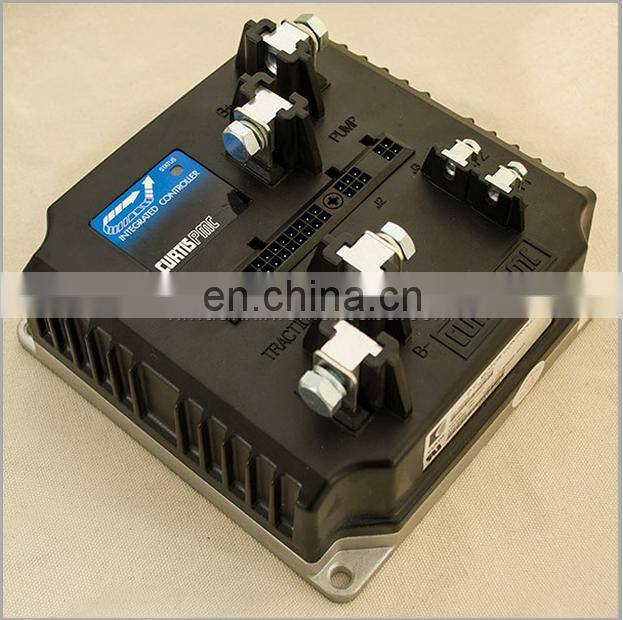

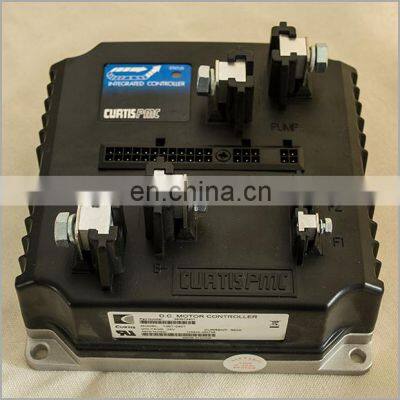

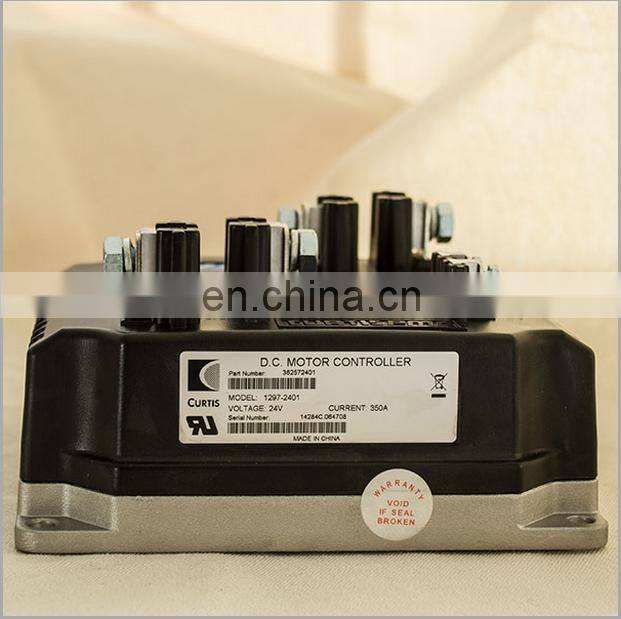

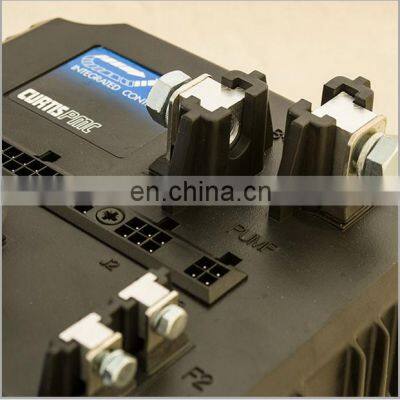

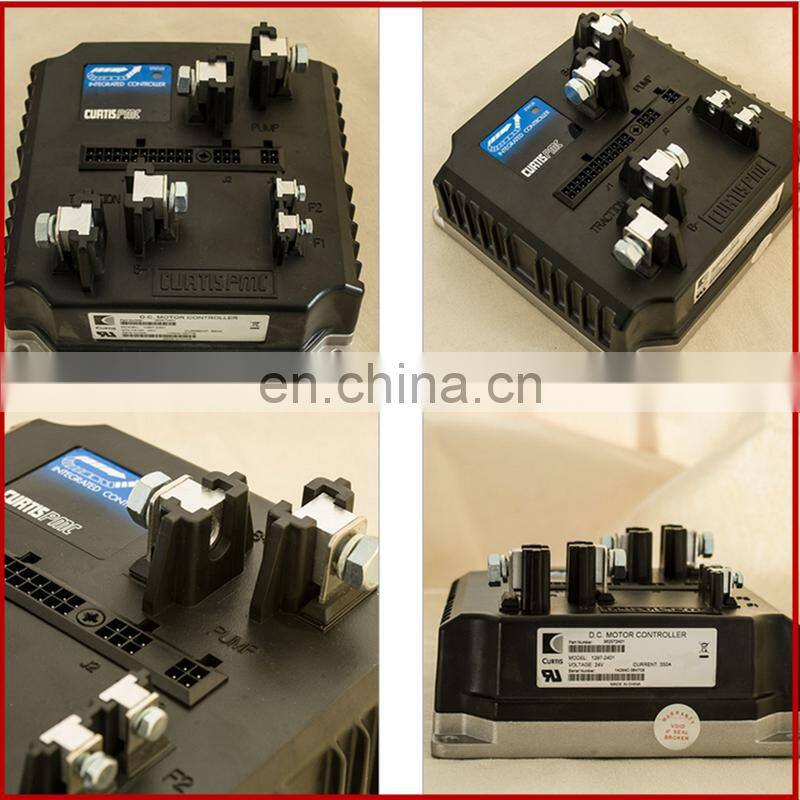

1297-2401 CURTIS Programmable DC Integrated Controller
- 1000 per Month
- T/T Credit Card
- 1253-8001 High-Quality for Polytype DC Series Controller
- ZAPI Controller H2B A4H268 Model DC Controller
- CURTIS Controller AC Motor Controller 1238E-6521
- 1266A-5201 DC Controller with Silent Operating Mode
- Forklift forward and backward Horn speakers, voltage 12v-80v Horn
- 36v/48v 600a dc motor speed controller model 1244-5651 for electric car
Product Description
Key Features:
CURTIS Model: 1297-2401
Norminal Battery Voltage (Volts): 48V (default setting) or 24V
Amature 2 minute current rating (amps): 350
Field 2 minute current rating (amps): 35
Logic enable and logic power input voltage (minimum): 16.8 V
Logic enable and logic power input current (no contactors engaged): 80 mA without programmer; 120 mA with programmer
Logic input voltage: >7.5 V High; <1 V Low
Logic input current: 7.3 mA (nominal)
Throttle control signals: 2-wire 5kΩ–0 or 0–5kΩ; 3-wire pot; or 0–5V
Dimensions: L158xW158xH84 mm
Net Weight: 3.0 kg
Specifications:
PWM operating frequency: 16 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage (minimum): 16.8 V
KSI input current (typical): 80 mA without programmer; 120 mA with programmer
Ambient operating temperature range: -40°C to 50°C
Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
Heatsink undertemperature cutback: 50% armature current at -25°C
Package environmental rating: IP53
The CURTIS PMC 1297 motor controller is an integrated controller that combines two motor controllers in one: it controls both a separately-excited traction motor and a series pump motor. Typical applications include walkie/rider pallet trucks, low lifts, stackers, small order-pickers, small reach trucks, and other small industrial vehicles.
The 1297 controller offers smooth, silent, cost effective control of motor speed and torque. The traction section includes a full-bridge field control and a half-bridge armature control to provide full solid-state regenerative braking. The pump section contains a half-bridge drive designed to provide smooth and efficient control of a series pump motor. In addition to controlling the pump motor, the 1297 controls the valves on the Lift cylinder's hydraulic line and thus controls the hydraulic path for Lift and Lower operations.
Package:Normally we use the standard exporting packaging. We also can according to clients' request .
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%
