Programmable Permanent Magnet Drive Motor Controller 1229-3101 24v 36v 200A
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
24V Original Curtis Controller Model 1230-2402 for MIMA/Liftstar/Xilin Electric Forklift
-
AC Motor-driven Control of Small to Medium-sized Venue Vehicles 36-72V 350A-400A Made in China
-
AC Motor-driven Control of Small to Medium-sized Venue Vehicles A2 24V-72V Made in China
-
Hot Sale AC Motor Controller Made in China Instead of Curtis Brand 36-72V 400A
-
Curtis 1239 72v 96v Electric Car Conversion Kit AC Motor Controller 550A
-

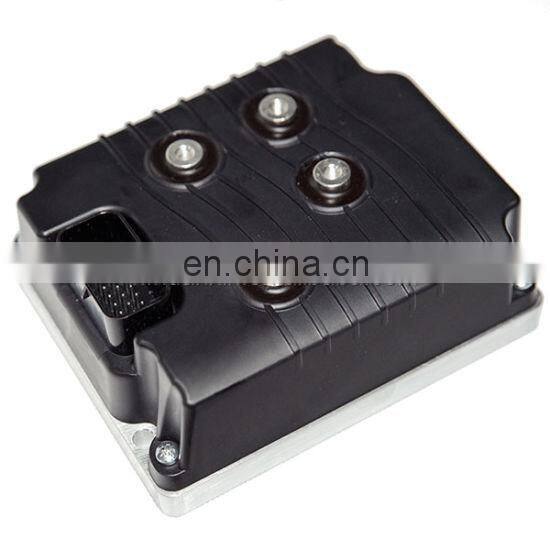

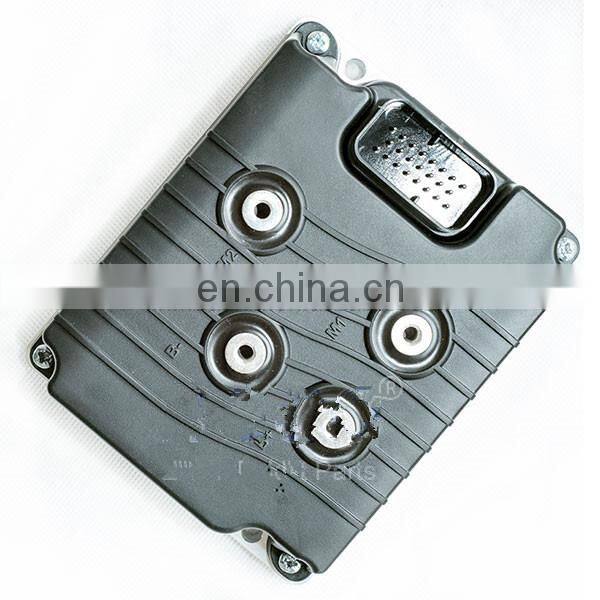

Original Version 24V 36V 200A Controller 1229-3101
Product Description
Product Introduction
Product Details
Key Features:
* CURTIS Model: 1229-3101
* Norminal Battery Voltage (Volts): 24-36V
* 10 Second Current Rating (amps): 220
* 2 Minute Current Rating (amps): 200
* S2-60 Minute Current Rating (amps): 100
* PWM operating frequency: 15 kHz
* Maximum speed sensor frequency: 30 kHz
* Maximum controller output frequency: 1 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* Thermal cutback: * Controller linearly reduces maximum current limit with an internal heatsink temperature from 85°C (185°F) to
95°C (203°F)
* complete cutoff occurs above 95°C (203°F) and below -40°C (-40°F)
* Storage ambient temperature range: -40°C to 95°C (-40°F to 203°F)
* Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
* Design life: 9,000 hours
* Operating duration at maximum current: 2 minutes minimum (unless otherwise noted), with initial temperature of 25°C and no
additional external heatsink
* Package environmental rating: IP65 per IEC529; compliance requires AMPSEAL 23-pin connector header
* Weight: 1.13 kg (2.5 lbs)
* Dimensions: W122 × L150 × H59 mm (4.8" × 5.9" × 2.3")
* CURTIS Model: 1229-3101
* Norminal Battery Voltage (Volts): 24-36V
* 10 Second Current Rating (amps): 220
* 2 Minute Current Rating (amps): 200
* S2-60 Minute Current Rating (amps): 100
* PWM operating frequency: 15 kHz
* Maximum speed sensor frequency: 30 kHz
* Maximum controller output frequency: 1 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* Thermal cutback: * Controller linearly reduces maximum current limit with an internal heatsink temperature from 85°C (185°F) to
95°C (203°F)
* complete cutoff occurs above 95°C (203°F) and below -40°C (-40°F)
* Storage ambient temperature range: -40°C to 95°C (-40°F to 203°F)
* Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
* Design life: 9,000 hours
* Operating duration at maximum current: 2 minutes minimum (unless otherwise noted), with initial temperature of 25°C and no
additional external heatsink
* Package environmental rating: IP65 per IEC529; compliance requires AMPSEAL 23-pin connector header
* Weight: 1.13 kg (2.5 lbs)
* Dimensions: W122 × L150 × H59 mm (4.8" × 5.9" × 2.3")
