Help CenterReliable Curtis 1268 Motor Controller for Sightseeing Cart/scooter 400a
Related Products
-
Curtis 1510A-5251 SX Motor ControllerNegotiableMOQ: 1 -
48V 3.8KW KDS Motor Controller 1268-5403 Electric Car Conversion KitsNegotiableMOQ: 1
-
Curtis Upgraded 1205 Model Controller for Trolley/seat Bus/golf BuggyNegotiableMOQ: 1
-
1510A 5250 1266A Curtis DC Motor Controller for Electric Vehicle CarNegotiableMOQ: 1
-
Curtis 1510A-5251 Controller Replacement 1266A-5201 36V 48VNegotiableMOQ: 1

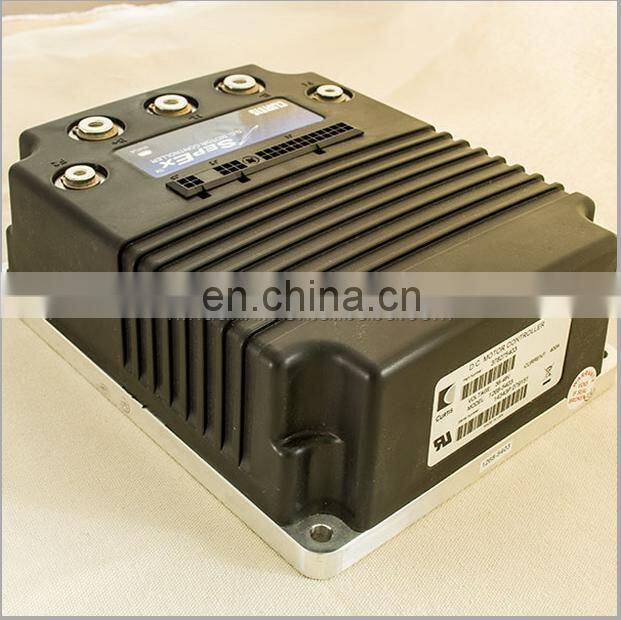

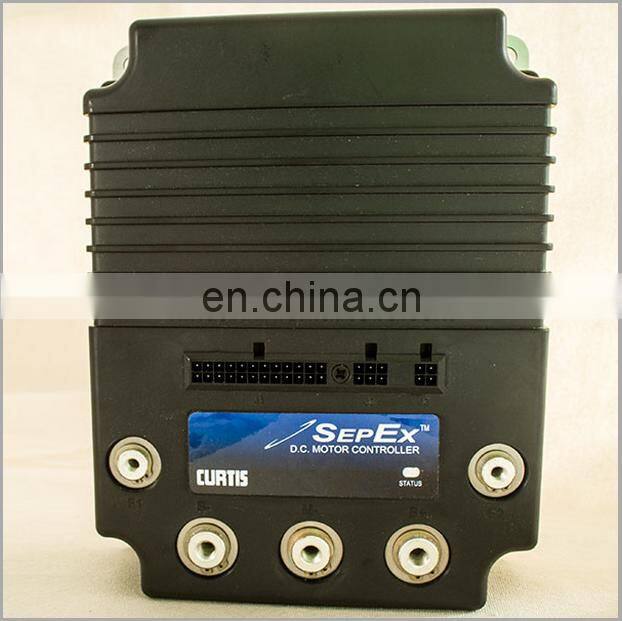

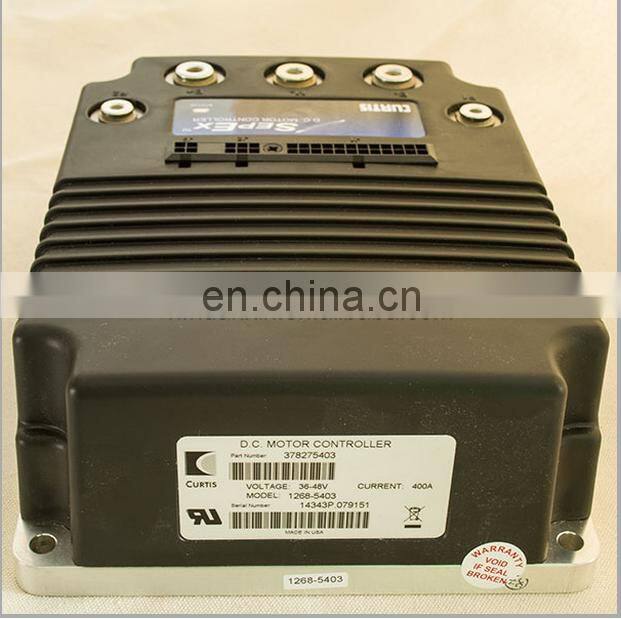

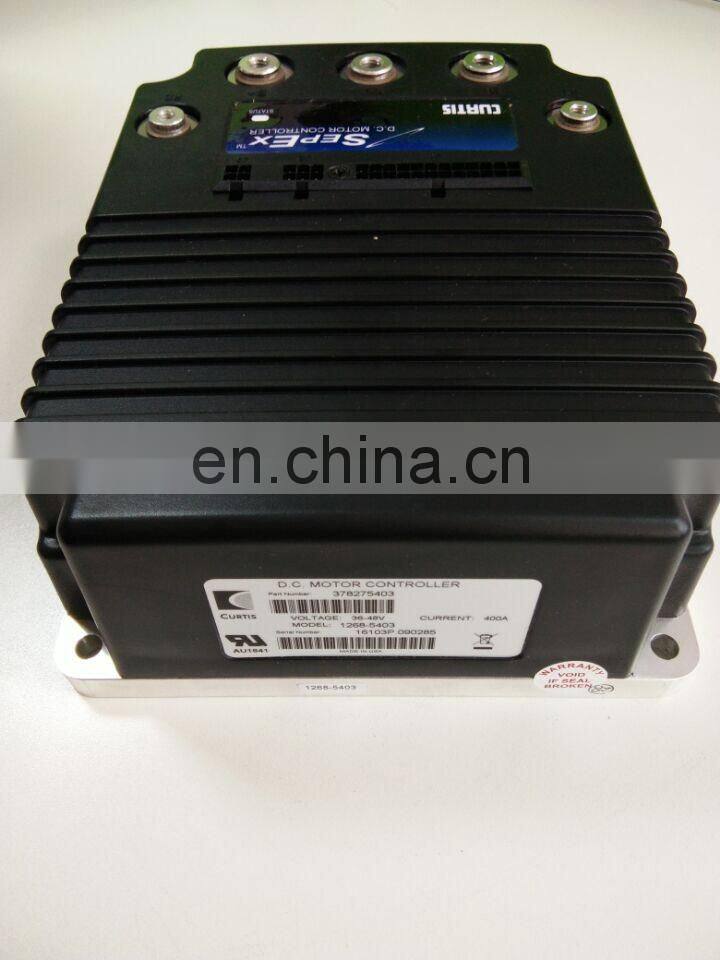

CURTIS 1268 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include heavy-duty golf carts, personnel transports, burden carriers, and other utility vehicles.The 1268 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.
Key Features:
CURTIS Model: 1268-5403
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
Amature 2 minute current rating (amps): 400
Field 2 minute current rating (amps): 50
Logic enable and logic power input voltage (minimum): 16.8 V
Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
Logic input voltage: 20.0 V High; 7.5 V Low
Logic input current 10 mA
Throttle Type: various throttles can be used with the 1268 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles.
Dimensions: L229xW178xH81 mm
Specifications:
PWM operating frequency: 16 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage (minimum): 16.8 V
KSI input current (typical): 160 mA without programmer; 200 mA with programmer
Ambient operating temperature range: -40°C to 50°C
Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
Heatsink undertemperature cutback: 50% armature current at -25°C
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
our service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
