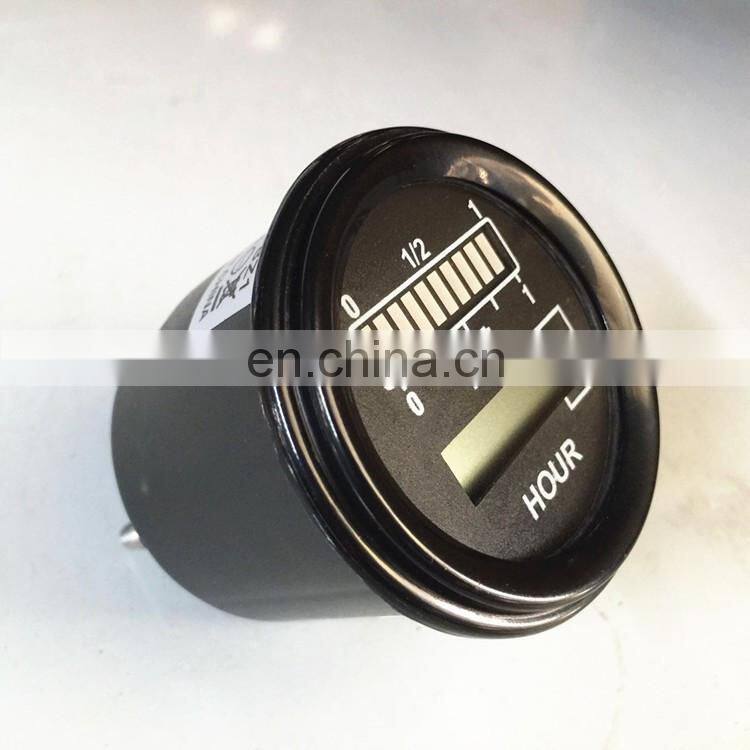

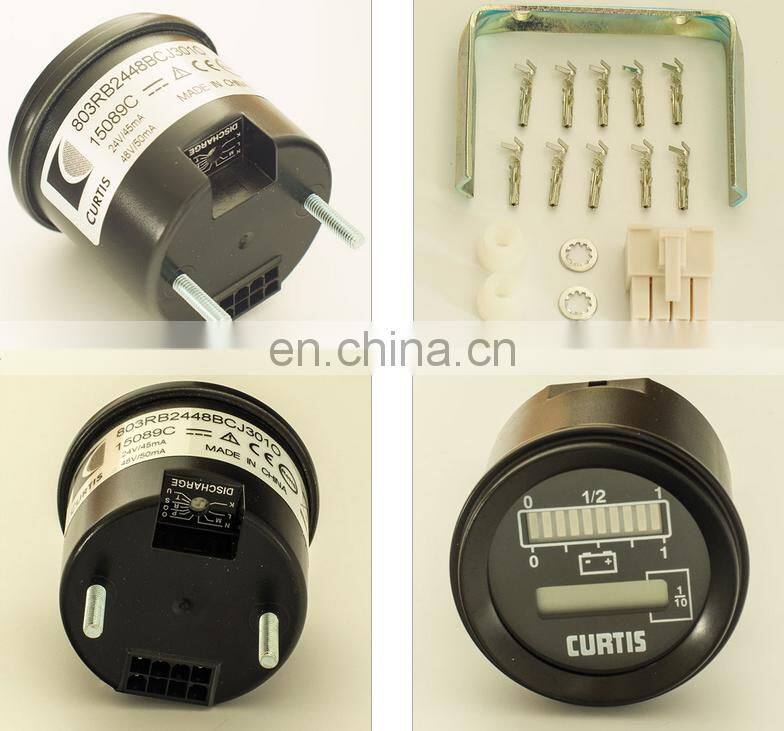

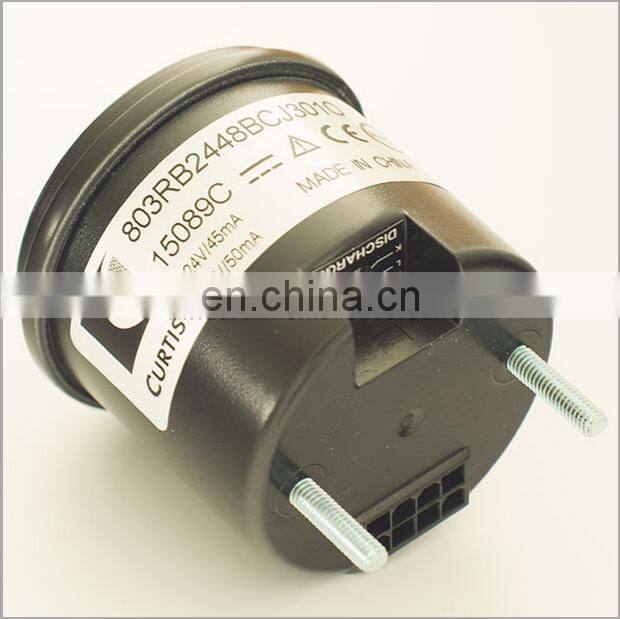

Original Curtis 24V 48V Forklift Battery Indicator Hourmeter 803R

CURTIS 803 Most Accurate Instrument Cluster with High Demands

Typical models:

803RB2436BCJ301O, 24/36V with CURTIS logo
803RB2448BCJ301O, 24/48V with CURTIS logo
803RB7280BCJ301O, 72/80V with CURTIS logo

Features include:

Features include:

Manufacturer: CURTIS
Model: 803
Multiple Voltage Options (Volts): 12-80V
Operating voltage: +/–25% of nominal voltage
Display: Battery state-of-charge: 10-bar, tri-color LED; Hour Meter: 6-digit LCD, 5mm high
'Fuel' Gauge Features

Multicolor 10-bar LED displays state of charge (5 green, 3 yellow, 2 red LEDs).
Flashing red LED signals "energy reserve" alarm at 70% discharged.
Double flashing red LEDs signal "empty" alarm at 80% discharged.
Normally closed relay opens at 80% discharge for lift lockout. This unique holding relay will only lock out at the end of a lift cycle.
Recognizes improperly charged battery.
Keyswitch activated LED display (Fuel gauge electronics are energized as long as they remain connected to the battery).
Wide range adjustable discharge profile.
Dual reset methods in each gauge: Open Circuit Reset for vehicles that exchange batteries and Charge Tracking Reset for vehicles whose batteries remain connected to the gauge during recharge.

Hour Meter Features
Monitors use-time throughout the equipment's lifespan.
Records and displays up to 99,999.9 hours on its LCD, rolls over and continues to count and display.
Hour meter LCD remains on as long as battery is connected.
Stores latest total in EEPROM nonvolatile memory, without need of power.
Operates and displays in temperatures from –40˚C to +65˚C under harsh conditions of vibration, shock, moisture and dust.

System Voltages Available: in single voltages from 12 VDC to 80 VDC, or in dual voltage of 24/36, 36/48, 24/48 or 72/80 VDC. Operating range is ± 25% of nominal voltage.
Operating temperature: –40°C to +85°C
Storage temperature: –50°C to +90°C

Package:Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
