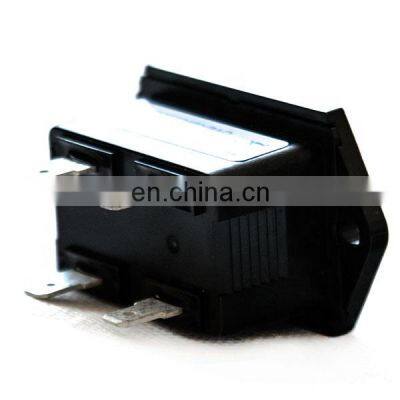

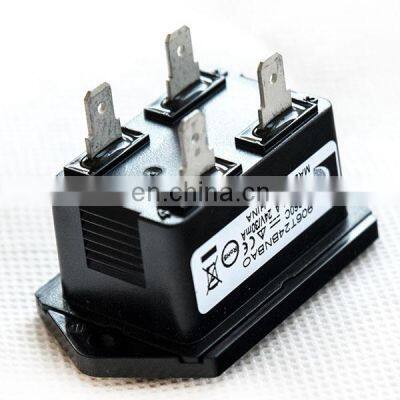

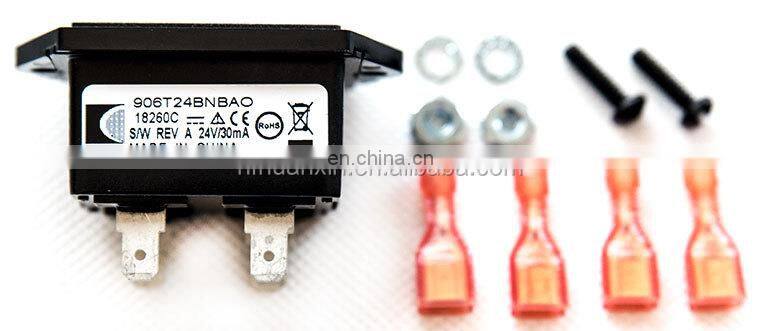

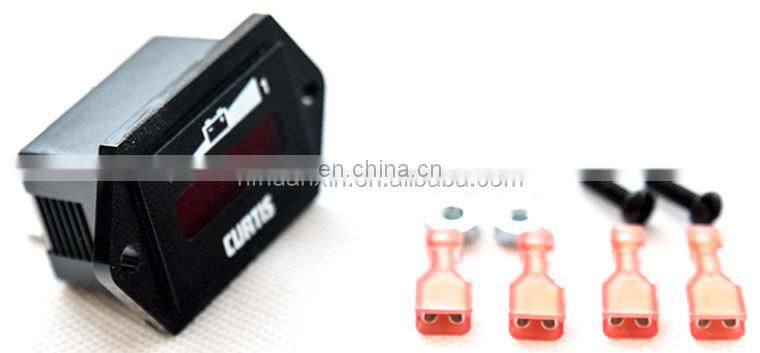

Help CenterForklift Parts 24V 906T Curtis Battery Indicator Meter For Electric Forklift
Related Products
-
906T 12V to 72V Golf Cart Forklift Speedometer BDINegotiableMOQ: 1 -
24V CURTIS Battery Discharge Meter 906R24BNBAO Round Battery Fuel GaugeNegotiableMOQ: 1
-
Curtis 906D Meter From USA Original TypeNegotiableMOQ: 1
-
CURTIS Instrument Panel Electric Car Dashboard 3510NegotiableMOQ: 1
-
Curtis Battery Meter for Electric ForkliftNegotiableMOQ: 1
Overview
Model 906 is an inexpensive, one piece, easy to install battery fuel gauge. It is completely solid state and provides a reliable, accurate, and easy to read display of battery state-of-charge. Model 906 is available in six panel mount packages and a printed circuit board mounted module for custom dash panel applications.

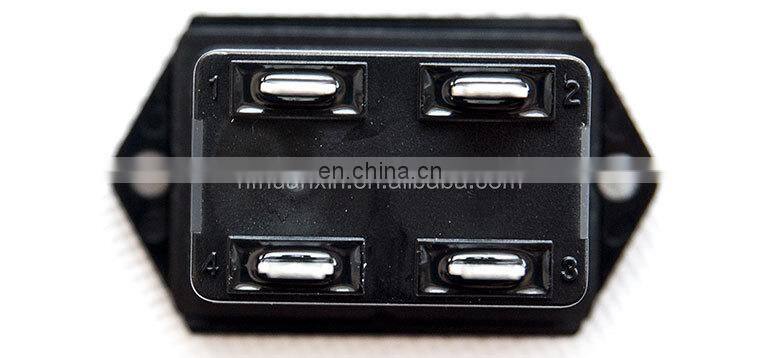

The Output Signal option causes the voltage on pin 3 to drop from 5 to 0 volts at 80% discharge. It can be used to signal another component or to allow for the disabling of a specified vehicle function, insuring against abusive deep discharge conditions. The Output Signal can also be used to drive the CURTIS 1178 Relay Module.
Special models and custom panels are available. For more details, please see the 906 Meter Datasheet (PDF format).
Specifications
*Manufacturer: CURTIS
*Model: 906
*Voltage Options (Volts): 12V, 24V, 36V or 48V.
*Operating voltage: +/–25% of nominal voltage
*Display: 10-digit, LED
*Operating temperature: –40°C to +85°C
*Storage temperature: –50°C to +90°C
*Shock & Vibration: Meets SAE J 1378
Features include
All principal circuits are integrated in a single chip for long-life reliability.

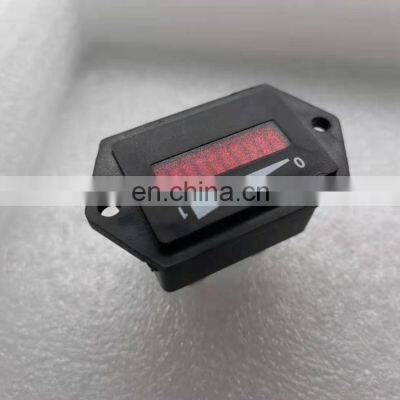

A 10-bar LED displays the state-of-charge successively, bar by bar, from full to empty.
At 70% depth of discharge, a flashing LED signals an "energy reserve" alert.
At 80%, alternately flashing LEDs provides an "empty" status warning.
Model 906 is compact and easily installed in panel cutouts as small as 36.8 X 24.1 mm, with as little as 35 mm behind panel clearance needed, see dimensions of various case styles. • Recognizes improperly charged battery.
Keyswitch activated LED display (state-of-charge is monitored as long as 906 is connected to battery).
Memory allows gauge to recall state-of-charge whenever battery is disconnected.
Three possible reset methods:
*Open Circuit Reset (OCR): Upon reconnection of a battery the gauge will reset if it measures 2.09 volts/ cell or higher (example "B" profile) (for units with memory option).
*High Voltage Reset (HVR): Gauge must measure >2.35 volts per cell for 6 continuous minutes during charging (example "B" profile).
*Charge Tracking Reset (CTR): Display tracks charge level during opportunity charging (requires gauge to be connected to battery when charging).
are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We
have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable
price, Best service and Professional product support.
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers' destination city air port.
3. By Sea: Delivery from the Shanghai sea port.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
