Ground Resistance Meter Calibrator SXJBD-II
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2011
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulation Resistance Meter GM-5KNegotiableMOQ: 1 Piece -
Multi-Function Shaker SXZDNegotiableMOQ: 1 Piece
-
Portable Laser Diffraction Analysis Soil Particle Size Analyzer 3 BuyersNegotiableMOQ: 1 Piece
-
DC Ground Fault Locator SXJD-ZNegotiableMOQ: 1 Piece
-
Underground Cable Detector SXGXNegotiableMOQ: 1 Piece
Contact US
Email:coco@launch-electric.com
Product Overview

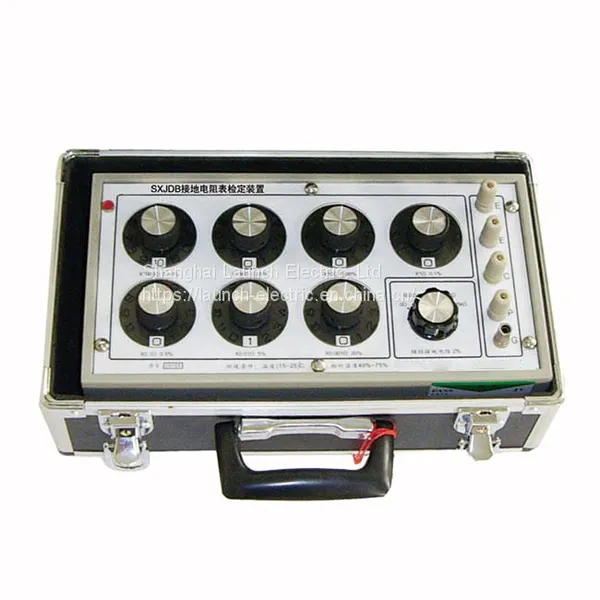

SXJBD-II Ground Resistance Meter Calibrator is the reference instrument to calibrate digital and analogous earth resistance in various accurate degree and models. It also can be used as resistance box, starting resistance is10mΩ, that is ×0.01Ω, test meter starts from”1”, no “Zero”.
Features
♦ Safe and reliable.
♦ Calibrate fast and accurately.
♦ Portable and easy to use.
Specifications
♦ Resistance output range: 0.010Ω～20001.110Ω
♦ Min. resolution: 1mΩ。
♦ Simulate ground resistance rE (reference resistor)
♦ Simulate auxiliary ground resistance rP, rC (auxiliary ground resistance)
♦ Working conditions：Temperature 20℃±5℃ Relative humidity 40％～70％RH
♦ Weight: ＜2.5kg
♦ Volume: 368mm×164mm×110mm
